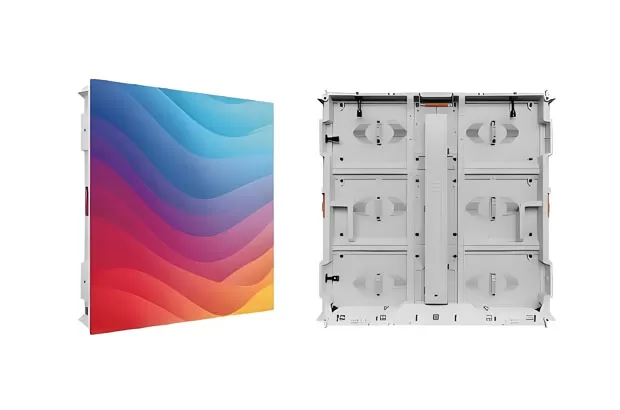

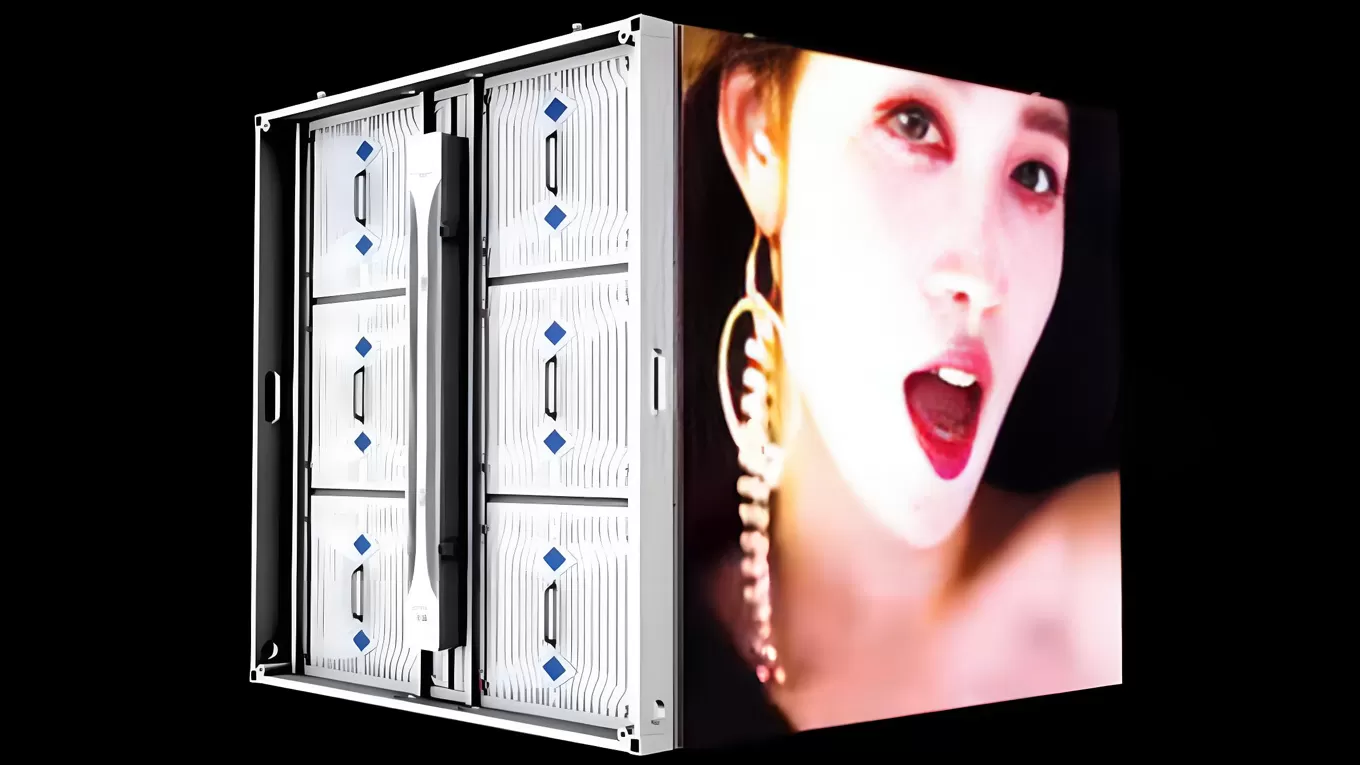

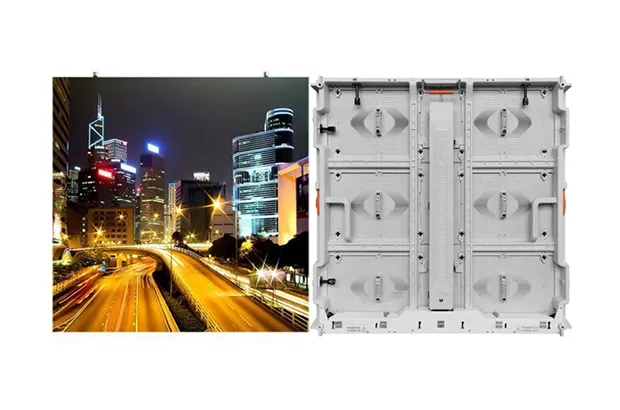

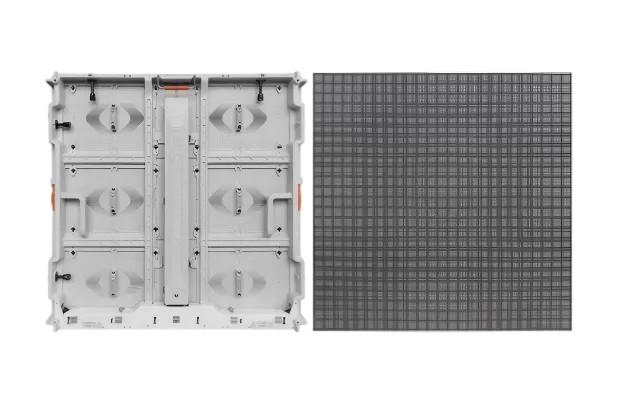

(Die-cast aluminium cabinet) Outdoor High brightness, Full Color Aluminum Screen (High refresh 7680Hz; brightness up to 12000cd; High contrast ratio 15000:1)
| Parameters(Common Cathode) | ||||||
| Item | P3.33 | P4.44 | P5.7 | P6.67 | P8 | P10 |
| Pixel Composition(SMD) | SMD1415 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Pitch(mm) | 3.33 | 4.44 | 5.7 | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 144×96 | 108×72 | 84×56 | 72×48 | 60×40 | 48×32 |

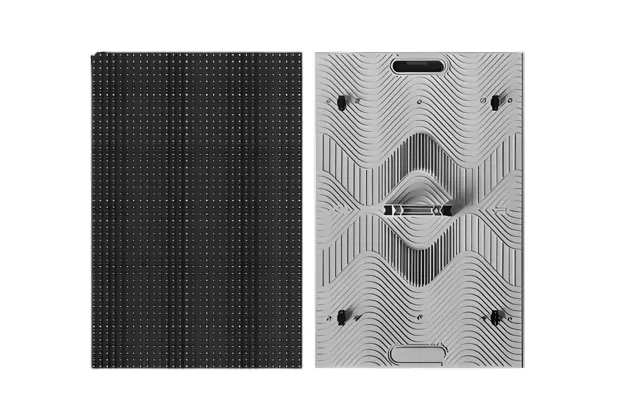

| Module Size(mm) | 480×320×16 | |||||
| Module Weight(kg) | 2 | |||||
| Module Qty/Cabinet(W×H) | 2×3 | |||||
| Cabinet Resolution(W×H) | 288×288 | 216×216 | 168×168 | 144×144 | 120×120 | 96×96 |
| Cabinet Size(mm) | 960×960×87 | |||||
| Cabinet Area(m²) | 0.92 | |||||
| Cabinet Weight(kg/cabinet) | 24.5 | |||||
| Cabinet Material | Die cast aluminum cabinet | |||||
| Cabinet Density (dot/m²) | 90000 | 50625 | 30625 | 22500 | 15625 | 10000 |
| IP Rating | IP66 | |||||
| White Balance Brightness(nits) | ≥4500nits | ≥5000nits | ≥5000nits | ≥5500nits | ≥5500nits | ≥6000nits |
| Color Processor(bit) | 16bit | |||||
| Color Temperature(K) | 6500-9000 | |||||
| Visual Angle(H/V) | 140°/120° | |||||
| Luminous point centre deviation | <3% | |||||
| Luminance uniformity | ≥97% | |||||
| Chromaticity uniformity | Within ±0.003Cx,Cy | |||||
| Contrast Ratio | ≥15000:1 | |||||
| The Max Power Consumption(W/m²) | 550 | 550 | 550 | 550 | 550 | 550 |
| Average Power Consumption(W/m²) | 186 | 186 | 186 | 186 | 186 | 186 |
| Input Voltage | AC100~240V | |||||
| Frequency(Hz) | 50&60 | |||||
| IC Driving(scan) | 1/12 scan | 1/9 scan | 1/7 scan | 1/6 scan | 1/3 scan | 1/2 scan |
| Refreshing Ratio(Hz) | 3840 | |||||
| Maintenance Method | Front and Rear Maintenance | |||||
| Lifespan(hrs) | 100,000 | |||||

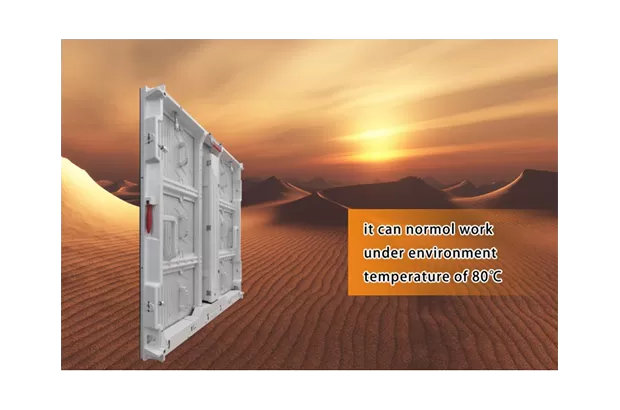

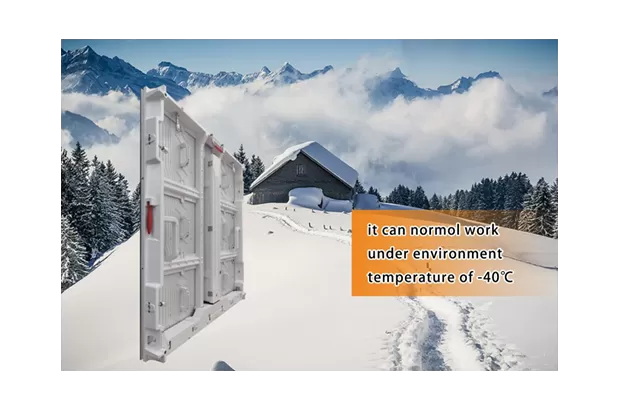

| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | |||||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH(Non Condensing) | |||||
| Parameters(Common Anode) | ||||||
| Item | P3.33 | P4.44 | P5.7 | P6.67 | P8 | P10 |
| Pixel Composition(SMD) | SMD1415 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Pitch(mm) | 3.33 | 4.44 | 5.7 | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 144×96 | 108×72 | 84×56 | 72×48 | 60×40 | 48×32 |
| Module Size(mm) | 480×320×16 | |||||
| Module Weight(kg) | 2 | |||||
| Module Qty/Cabinet(W×H) | 2×3 | |||||
| Cabinet Resolution(W×H) | 288×288 | 216×216 | 168×168 | 144×144 | 120×120 | 96×96 |
| Cabinet Size(mm) | 960×960×87 | |||||
| Cabinet Area(m²) | 0.92 | |||||
| Cabinet Weight(kg/cabinet) | 24.5 | |||||
| Cabinet Material | Die cast aluminum cabinet | |||||
| Cabinet Density (dot/m²) | 90000 | 50625 | 30625 | 22500 | 15625 | 10000 |
| IP Rating | IP66 | |||||
| White Balance Brightness(nits) | ≥4500nits | ≥5000nits | ≥5000nits | ≥5500nits | ≥5500nits | ≥6000nits |
| Color Processor(bit) | 16bit | |||||
| Color Temperature(K) | 6500-9000 | |||||
| Visual Angle(H/V) | 140°/120° | |||||
| Luminous point centre deviation | <3% | |||||
| Luminance uniformity | ≥97% | |||||
| Chromaticity uniformity | Within ±0.003Cx,Cy | |||||
| Contrast Ratio | ≥15000:1 | |||||
| The Max Power Consumption(W/m²) | 700 | 700 | 700 | 700 | 700 | 800 |
| Average Power Consumption(W/m²) | 235 | 235 | 235 | 235 | 235 | 268 |
| Input Voltage | AC100~240V | |||||
| Frequency(Hz) | 50&60 | |||||
| IC Driving(scan) | 1/12 scan | 1/9 scan | 1/7 scan | 1/6 scan | 1/3 scan | 1/2 scan |
| Refreshing Ratio(Hz) | 3840 | |||||
| Maintenance Method | Front and Rear Maintenance | |||||
| Lifespan(hrs) | 100,000 | |||||
| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | |||||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH(Non Condensing) | |||||
| Parameters(Ultra-energy saving) | ||||
| Item | P5.7 | P6.67 | P8 | P10 |
| Pixel Composition(SMD) | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Pitch(mm) | 5.7 | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 84×56 | 72×48 | 60×40 | 48×32 |
| Module Size(mm) | 480×320×16 | |||
| Module Weight(kg) | 2 | |||
| Module Qty/Cabinet(W×H) | 2×3 | |||
| Cabinet Resolution(W×H) | 168×168 | 144×144 | 120×120 | 96×96 |
| Cabinet Size(mm) | 960×960×87 | |||
| Cabinet Area(m²) | 0.92 | |||
| Cabinet Weight(kg/cabinet) | 24.5 | |||
| Cabinet Material | Die cast aluminum cabinet | |||
| Cabinet Density (dot/m²) | 30625 | 22500 | 15625 | 10000 |
| IP Rating | IP66 | |||
| White Balance Brightness(nits) | ≥6000nits | ≥6000nits | ≥6000nits | ≥7000nits |
| Color Processor(bit) | 16bit | |||
| Color Temperature(K) | 6500-9000 | |||
| Visual Angle(H/V) | 140°/120° | |||
| Luminous point centre deviation | <3% | |||
| Luminance uniformity | ≥97% | |||
| Chromaticity uniformity | Within ±0.003Cx,Cy | |||
| Contrast Ratio | ≥15000:1 | |||
| The Max Power Consumption(W/m²) | 280 | 280 | 280 | 280 |
| Average Power Consumption(W/m²) | 76 | 76 | 76 | 76 |
| Input Voltage | AC100~240V | |||
| Frequency(Hz) | 50&60 | |||
| IC Driving(scan) | 1/7 scan | 1/6 scan | 1/3 scan | 1/2 scan |
| Refreshing Ratio(Hz) | 3840 | |||
| Maintenance Method | Front and Rear Maintenance | |||
| Lifespan(hrs) | 100,000 | |||
| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | |||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH(Non Condensing) | |||
| Parameters(Super Brightness) | ||||
| Item | P5.7 | P6.67 | P8 | P10 |
| Pixel Composition(SMD) | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Pitch(mm) | 5.7 | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 84×56 | 72×48 | 60×40 | 48×32 |
| Module Size(mm) | 480×320×16 | |||
| Module Weight(kg) | 2 | |||
| Module Qty/Cabinet(W×H) | 2×3 | |||
| Cabinet Resolution(W×H) | 168×168 | 144×144 | 120×120 | 96×96 |
| Cabinet Size(mm) | 960×960×87 | |||
| Cabinet Area(m²) | 0.92 | |||
| Cabinet Weight(kg/cabinet) | 24.5 | |||
| Cabinet Material | Die cast aluminum cabinet | |||
| Cabinet Density (dot/m²) | 30625 | 22500 | 15625 | 10000 |
| IP Rating | IP66 | |||
| White Balance Brightness(nits) | ≥12000nits | ≥12000nits | ≥12000nits | ≥12000nits |
| Color Processor(bit) | 16bit | |||
| Color Temperature(K) | 6500-9000 | |||
| Visual Angle(H/V) | 140°/120° | |||
| Luminous point centre deviation | <3% | |||
| Luminance uniformity | ≥97% | |||
| Chromaticity uniformity | Within ±0.003Cx,Cy | |||
| Contrast Ratio | ≥15000:1 | |||
| The Max Power Consumption(W/m²) | 450 | 450 | 450 | 500 |
| Average Power Consumption(W/m²) | 150 | 150 | 150 | 168 |
| Input Voltage | AC100~240V | |||
| Frequency(Hz) | 50&60 | |||
| IC Driving(scan) | 1/7 scan | 1/6 scan | 1/3 scan | 1/2 scan |
| Refreshing Ratio(Hz) | 3840 | |||
| Maintenance Method | Front and Rear Maintenance | |||
| Lifespan(hrs) | 100,000 | |||
| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | |||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH(Non Condensing) | |||
FO3 FC Series is widely used for various of outdoor application fields, such as the exterior wall of building, Hanging Garden, Government Cultural Plaza, Bus Station, Vertical Advertising aside road, etc.

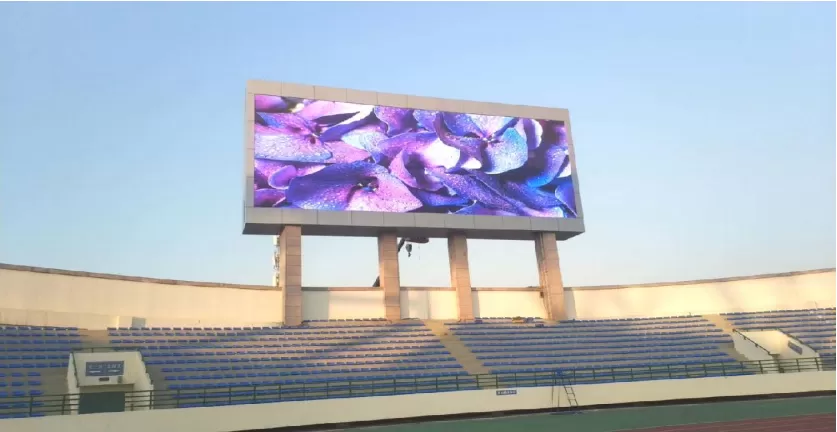

Zhengzhou University double-sided aluminum screen（220m²）

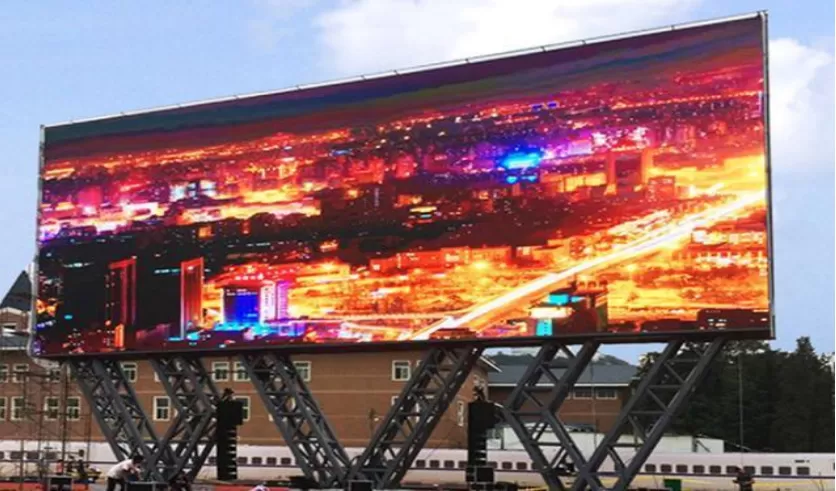

Jiangyin Gymnasium Aluminum Screen（280m²）

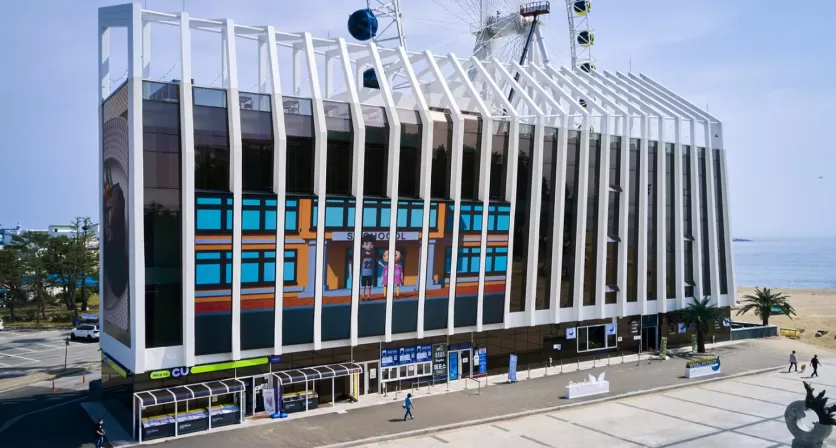

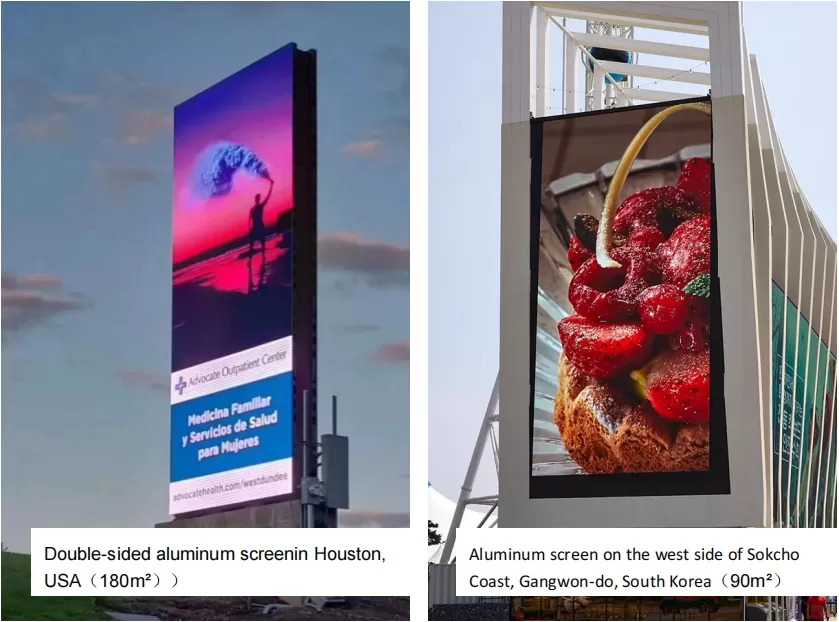

Aluminum screen on the south side of Sokcho coast, Gangwon-do, South Korea（150m²）
