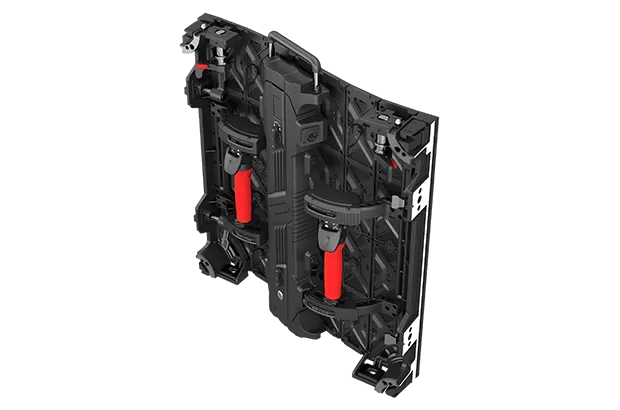

Indoor Flexible LED Screen
Smoother Circular Arc Mechanism, Effortless Angle Adjustment
Single Panel Max. Curved 45
Dual Flexible Modules, More Seamless
Patented Anti-collision Design
More Solid Panel Structure
| Model No. (Indoor) | CFPro1.5 | CFPro1.9 | CFPro1.9 | CFPro2.38 | CFPro2.6 | CFPro2.9 | CFPro3.9 |
| Pixel Pitch | 1.56mm | 1.9mm | 1.9mm | 2.38mm | 2.6mm | 2.9mm | 3.9mm |
| LED Type | SMD1212 | SMD1212/2 in 1 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Packaging techinque | HOB | SMD | HOB | SMD | SMD | SMD | SMD |
| Pixel Density | 409600 pixel/㎡ | 262144 pixel/㎡ | 262144 pixel/㎡ | 176400 pixel/㎡ | 147456 pixel/㎡ | 112896 pixel/㎡ | 65536 pixel/㎡ |
| Panel Dimension | 500mm*500mm*108mm | ||||||
| Panel Resolution | 320*320 pixel | 256*256 pixel | 256*256 pixel | 210*208 pixel | 192*192 pixel | 168*168 pixel | 128*128 pixel |
| Scan Rate | 1/32 | 1/32 or 1/16 | 1/32 or 1/16 | 1/15 | 1/24 or 1/16 | 1/21 | 1/16 |
| Brightness | 700-1000nits | 800-1200nits | 800-1200nits | 800-1200nits | 800-1200nits | 800-1200nits | 800-1200nits |
| Refresh Rate | 3840Hz / 7680Hz | ||||||
| Gray Scale | 14-16bit | ||||||
| Color Temperature | 6500-9500K | ||||||
| Panel Weight | 8.5kg±10% | ||||||
| Cabinet Material | Die-Casting Cabinet | ||||||
| Max Power Consumption | ≤540w/㎡ | ||||||
| Ave Power Consumption | ≤270w/㎡ | ||||||
| Viewing Angle | H:160° V:140° | ||||||
| Working Voltage | AC100-240V~50/60Hz or AC200-240V~50/60Hz | ||||||
| IP Rating | IP30 | ||||||
| Serviceability | Rear | ||||||
| Curve | New Angle Lock: -22.5°/-20°-17.5°/-15°%-12.5°/-10°%-7.5°/-5/-2.5°/0°/+2.5°%+5°%+7.5°/+10°%+12.5°/+15°+/20°+/22.5° | ||||||
| Max Stacking/Hanging | 5m | ||||||
| Lifetime | 50000h | ||||||
| Operating Temp/Humidity | -20℃~+45℃;10%~60%RH | ||||||
| Storage Temp/Humidity | -40℃~+60℃;10%~60%RH | ||||||
Processing platform | Novastar/Colorlight/Magnimage | ||||||
Product Certification | CCC/CE/MET | ||||||
Integrated Cabinet Design

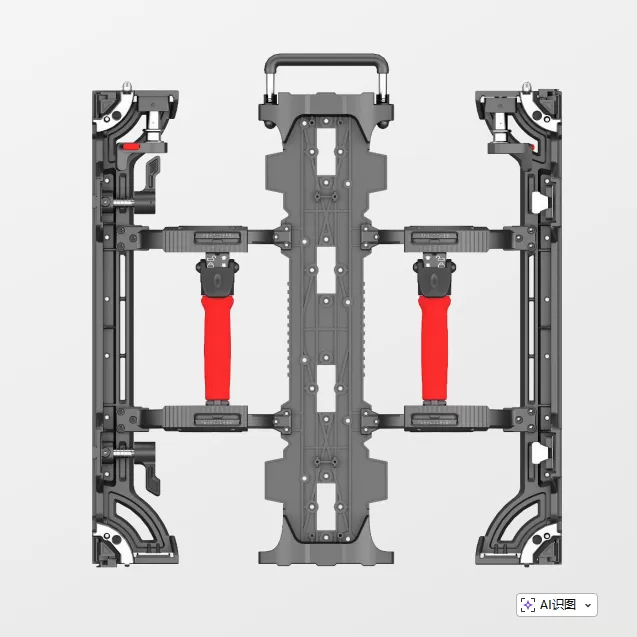

Solid and Beautiful Frame
