Flexible LED Module
Create curved and creative LED display shapes.

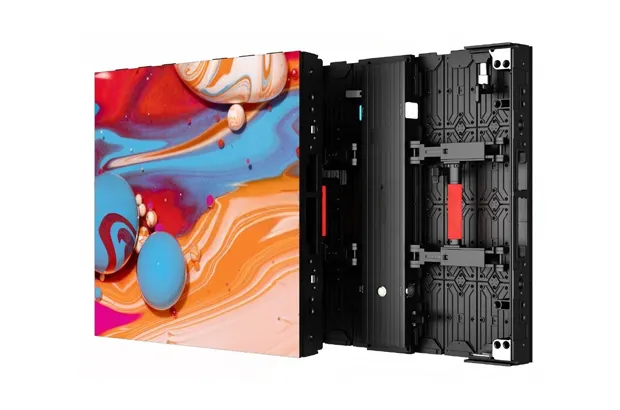

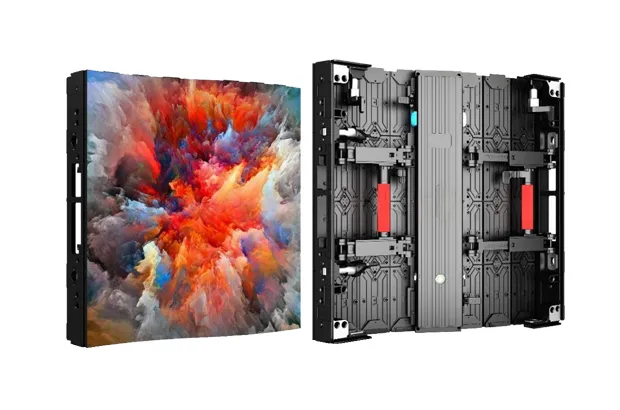

Thin Die-Cast Cabinet
496×496×62mm cabinet with 8kg panel weight.
Fast Installation
Designed for efficient assembly and event deployment.

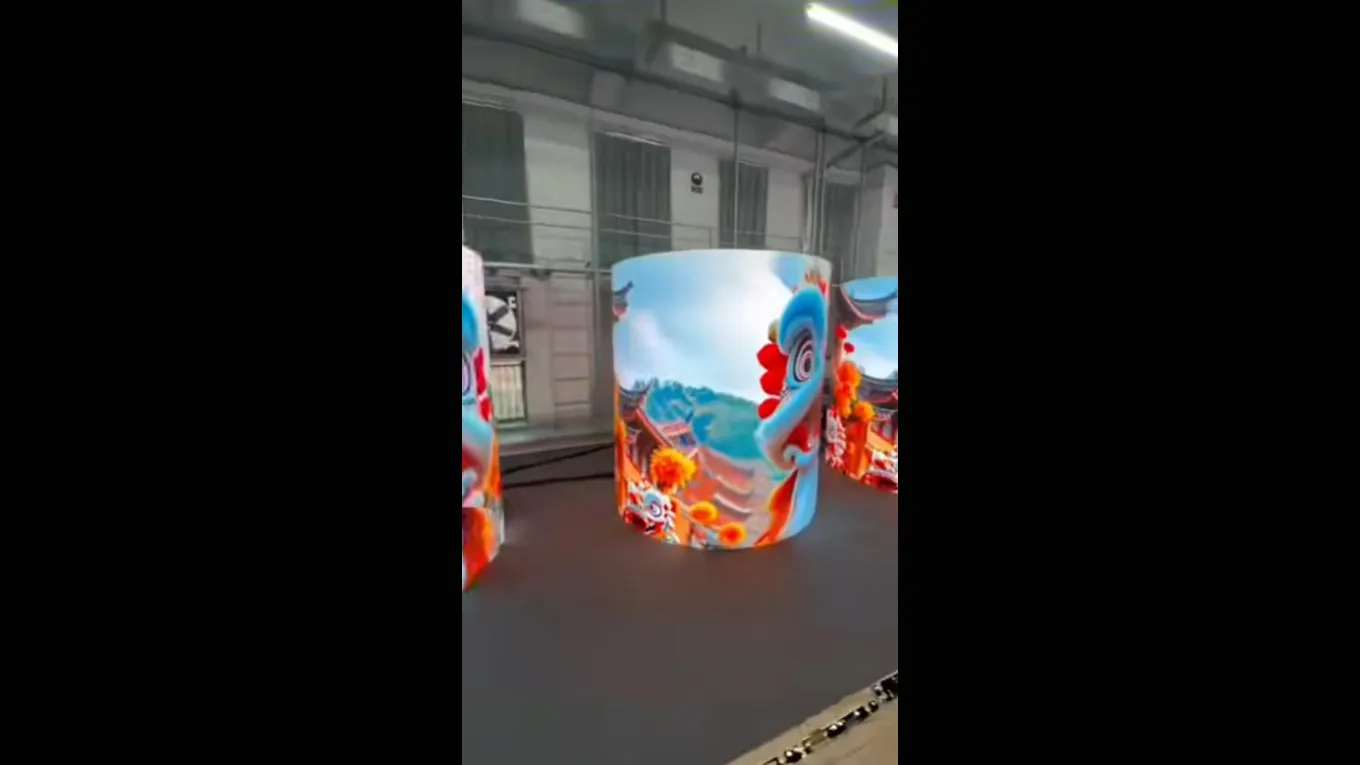

Multiple Curved Shapes
Supports different curved configurations, including up to ±80° options depending on the model.
| Model No. | P1.5(Indoor) | P1.9(Indoor) | P1.9(Indoor) | P1.9(Indoor) | P2.3(Indoor) | P2.8(Indoor) |
| Pixel Pitch | 1.55mm | 1.93mm | 1.93mm | 1.93mm | 2.38mm | 2.82mm |
| LED Type | SMD1212+HOB | SMD1515+HOB | S-SMT 1212 | Two in one | SMD1515 | SMD2020 |
| Pixel Density | 409,600pixel/m² | 262,144pixel/m² | 262,144pixel/m² | 262,144pixel/m² | 173,056pixel/m² | 123,904pixel/m² |
| Brightness | 700-1000nits | 700-1000nits | 900-1100nits | 700-1000nits | 800-1200nits | 800-1200nits |
| Color Temperature | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K |
| Scan | 1/40 or 1/16 | 1/32 | 1/32 | 1/32 | 1/26 | 1/22 |
| Panel Dimension(W*H*D) | 496mm*496mm*62mm (19.53"*19.53"*2.44") | |||||
| Panel Resolution | 320*320pixel | 256*256pixel | 256*256pixel | 256*256pixel | 208*208pixel | 176*176pixel |
| Panel Weight | 8KG(17.64Ib)±10% | |||||
| Cabinet Material | Die-casting Aluminum | |||||
| Max Power Consumption | ≤580W/m² | |||||
| Ave Power Consumption | ≤290W/m² | |||||
| Viewing Angle | H:160°V:140° | |||||
| Refresh Rate | 7680/3840Hz | |||||
| Gray Scale | 14-16bit | |||||
| Working Voltage(Wide Voltage) | AC100-240V~50-60Hz | |||||
| Working Voltage(Narrow Voltage) | AC200-240V~50-60Hz | |||||
| IP Rating | IP30 | |||||
| Max Stacking/Hanging | 5m | |||||
| Serviceability | Rear | |||||
| Curve | -40°-20°/0°/20°/40° | -80°/-60°/-40°-20°/0°/20°/40°/60°/80° | ||||
| Lifetime | 50000h | |||||
| Operating Temp/Humidity | -20℃~+45℃;10%~60%RH | |||||
| Storage Temp/Humidity | -40℃~+60℃;10%～60%RH | |||||
| Processing platform | Novastar/Colorlight/Magnimage/Brompton | |||||
| Certifications | CE-EMC/FCC/MET | |||||
Large capacity: 8 boxes can be installed
Environmental protection material: wood board of environmental protection grade E1
Safe and reliable: internal spherical edging and anti-collision strip
Static electricity prevention: professional anti-static cloth for interior decoration
High-strength load-bearing capacity: the maximum load-bearing capacity is 400KG
