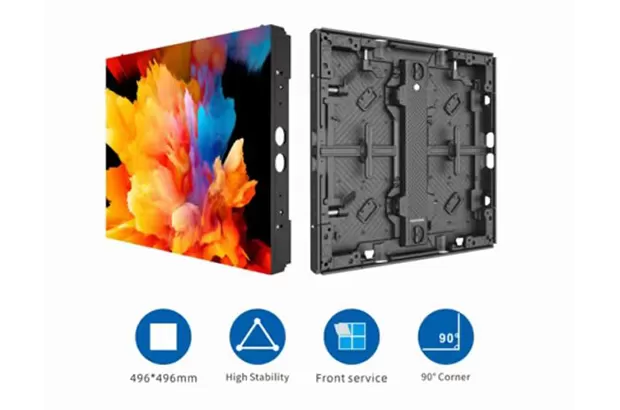

Creative Series-Cans LED Display Screen
| Model No. | MT55/62 1.2 | MT55/62 1.5 | MT55/62 1.9 | MT55/62 1.9 | MT55/62 2.3 |
| Pixel Pitch | 1.29mm | 1.55mm | 1.93mm | 1.93mm | 2.38mm |
| LED Type | SMD1010 | SMD1212 | SMD1515 | Mini Four in one | SMD1515 |
| COB/HOB | GOB/HOB | GOB/HOB | GOB/HOB | / | / |
| Pixel Density | 589,824pixel/m² | 409,600pixel/m² | 262,144pixel/m² | 262,144pixel/m² | 173,056pixel/m² |
| Brightness | 500-800nits | 700-1000nits | 700-1000nits | 700-1000nits | 800-1200nits |
| Scan Ratio | 1/32 | 1/16or1/32or1/40 | 1/32 | 1/32 | 1/26 |
| Panel Resolution | 384*384pixel | 320*320pixel | 256*256pixel | 256*256pixel | 208*208pixel |

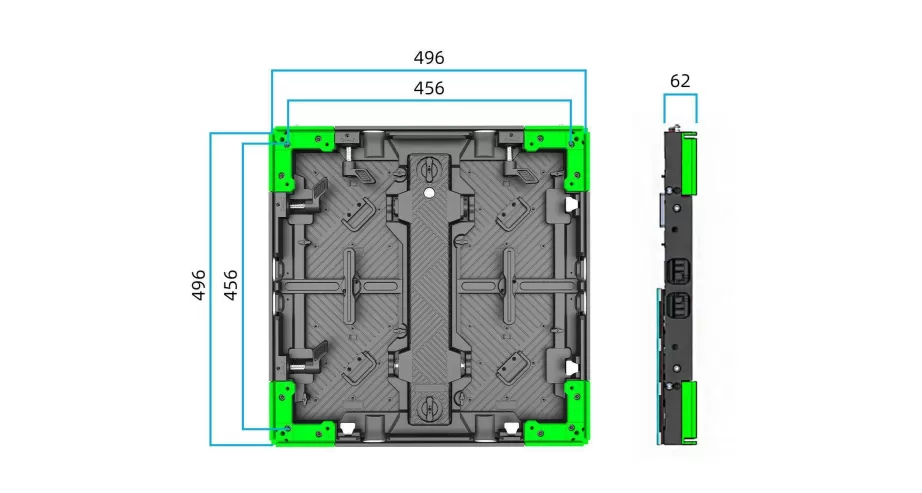

| Panel Dimension(W*H*D) | 496*496*55mm/19.5*2.1” | ||||
| Color Temperature | 6500-9500K | ||||
| Panel Weight | 8.8kg±10%/19.84Lb±10% | ||||

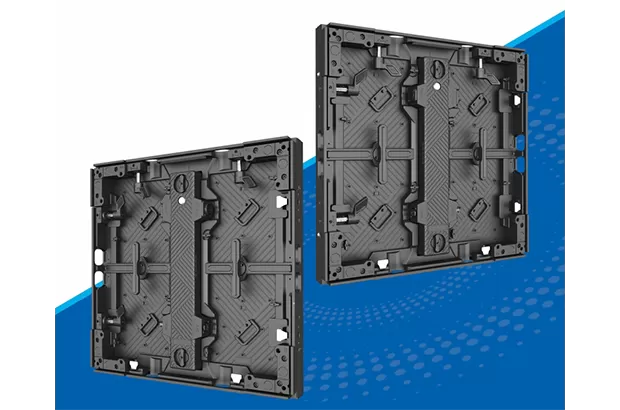

| Cabinet Material | Die-Casting Cabinet | ||||
| Max Power | ≤580w/m² | ||||
| Ave Power | ≤290w/m² | ||||
| Viewing Angle | H:160°V:140° | ||||
| Refresh Rate | 7680/3840Hz | ||||
| Gray Scale | 14-16bit | ||||
| Working Voltage | AC100-240V~50-60Hz | ||||
| Working Voltage | AC200-240V~50-60Hz | ||||
| IP Rating | IP30 | ||||
| Curve | / | ||||
| Max Stacking/Hanging | 8m | ||||
| Senvice ability | Front/Rear | ||||
| Lifetime | 50000h | ||||
| Operating Temp/Humidity | -20℃-+45℃;10%-60%RH | ||||
| Storage Temp/Humidity | -40C-+60℃;10%-60%RH | ||||
| Processing Platform | Novastar/Colorlight/Magnimage/Brompton | ||||
| Certifications | CE-EMC,CE-LVD,FCC,ETL | ||||
In order to ensure your safety, the installation and maintenance of this product must be operated by professionalsand non-professionals should not open it for maintenance.
Before installing and maintaining the product, cut off the power supply, check whether the insulation of the powersupply line of the product is in good condition, and ensure that the local voltage is consistent with the rated voltageof the display screen to avoid damace caused by overheating of the product, and ensure that the product is arounded.
To ensure the reliability of the connection between the product and the installation, the safety of the support anathe installer must be ensured, and the product can be installed only after the connection is reliable to prevent thecenter of gravity from falling down..
The sending system does not support hot-plugging. Be sure to unplug the power cord before plugging in theconnections between various devices.
During the installation process, workers should take safety measures (wear safety helmets, safety belts and otherprotective products).
* When disassembling and assembling control system boards and other equipment, be careful to prevent staticelectricity(wear anti-static gloves, etc.).
