The electric-lift, foldable LED conference display is a next-generation device integrating high-definition visuals, multiple size and pixel-pitch options, and intelligent controls. It overcomes the pain points associated with traditional LED conference displays—such as bulkiness, complex installation, and transport difficulties—by utilizing a lightweight design featuring electric lifting and manual folding mechanisms. Ready to use upon plugging in, it supports COB/GOB technologies for superior protection and is widely suitable for environments such as conference rooms, broadcast studios, and classrooms.
| Model | 135-inch | |||
| Pixel Pitch | 0.93 | 1.25 | 1.56 | 1.87 |
| Manufacturing Process | COB | COB/GOB | COB/GOB | GOB |
| Display Resolution | 3200*1800 | 2400*1350 | 1920*1080 | 1600*900 |
| Android Version | Android 13.0 | Android 11.0 | ||
| Memory/Storage | 8GB/64GB | 4GB/32GB | ||
| Input Interfaces | 2×HDMI 2.0 2×USB3.0；1×USB2.0 | 1×HDMI 1.3，2×USB2.0 | ||
| Audio | Supported | |||
| Optional Accessories | OPS / Screen Casting Device / Camera | |||
| Unfolded dimensions (mm) | 3050(W)*2200~2890(H)*800(D) | |||
| Folded dimensions (mm) | 1800(W)*2200(H)*800(D) | |||
| Lifting height (mm) | 700mm | |||
| Refresh Rate (Hz) | ≥3840HZ/7680HZ | |||
| Brightness (cd) | 600cd (COB optional 1200cd) | |||
| Max Power Consumption (W) | ≤3200 | |||
| Average Power Consumption (W) | ≤800 | |||
| Packaging dimensions (mm) | 1960(W)*1920(H)*900(D) | |||
| Weight (kg) | Approx. 450 | |||
| Model | 162-inch | |||
| Pixel Pitch | 0.93 | 1.25 | 1.56 | 1.87 |
| Manufacturing Process | COB | COB/GOB | COB/GOB | GOB |
| Display Resolution | 3840*2160 | 2880*1620 | 2304*1296 | 1920*1080 |
| Android Version | Android 13.0 | Android 11.0 | ||
| Memory/Storage | 8GB/64GB | 4GB/32GB | ||
| Input Interfaces | 2×HDMI 2.0 2×USB3.0；1×USB2.0 | 1×HDMI 1.3 2×USB2.0 | ||
| Audio | Supported | |||
| Optional Accessories | OPS / Screen Casting Device / Camera | |||
| Unfolded dimensions (mm) | 3650(W)*2325~3025(H)*800(D) | |||
| Folded dimensions (mm) | 2400(W)*2550(H)*900(D) | |||
| Lifting height (mm) | 700mm | |||
| Refresh Rate (Hz) | ≥3840HZ / 7680HZ | |||
| Brightness (cd) | 600cd (COB optional 1200cd) | |||
| Max Power Consumption (W) | ≤4700 | |||
| Average Power Consumption (W) | ≤1100 | |||
| Packaging dimensions (mm) | 2600(W)*2650(H)*900(D) | |||
| Weight (kg) | Approx. 550 | |||
Features electric lifting and folding capabilities with a high-tech aesthetic; the screen rises up to 900mm above the floor.
Deeply customized based on Android 13, offering a rich app ecosystem and exceptional expandability.
Supports local and online HD video playback, including 4K HDR format decoding.
Optional OPS industrial PC available; supports dual-system switching (Windows/Android) and peripherals such as cameras, microphones, and wireless casting devices.
High contrast ratio of 12,000:1 (compared to the standard 800:1 for LCDs) and a color gamut exceeding 110% of DCI-P3.
COB surface light source technology significantly reduces moiré patterns compared to SMD processes and offers a wide viewing angle of up to 175 degrees.
Supports customization for high brightness (1200 cd/m²), high refresh rates (3840Hz/7680Hz), and high grayscale depth (14-bit native, 22-bit via software).
Supports wireless screen casting across multiple platforms—including Windows, Mac, iPhone/iPad, and Android—and supports HTML5 browsers.
Designed for user-friendly installation and maintenance; ready to use upon startup with no need for cabinet/module assembly or internal wiring.

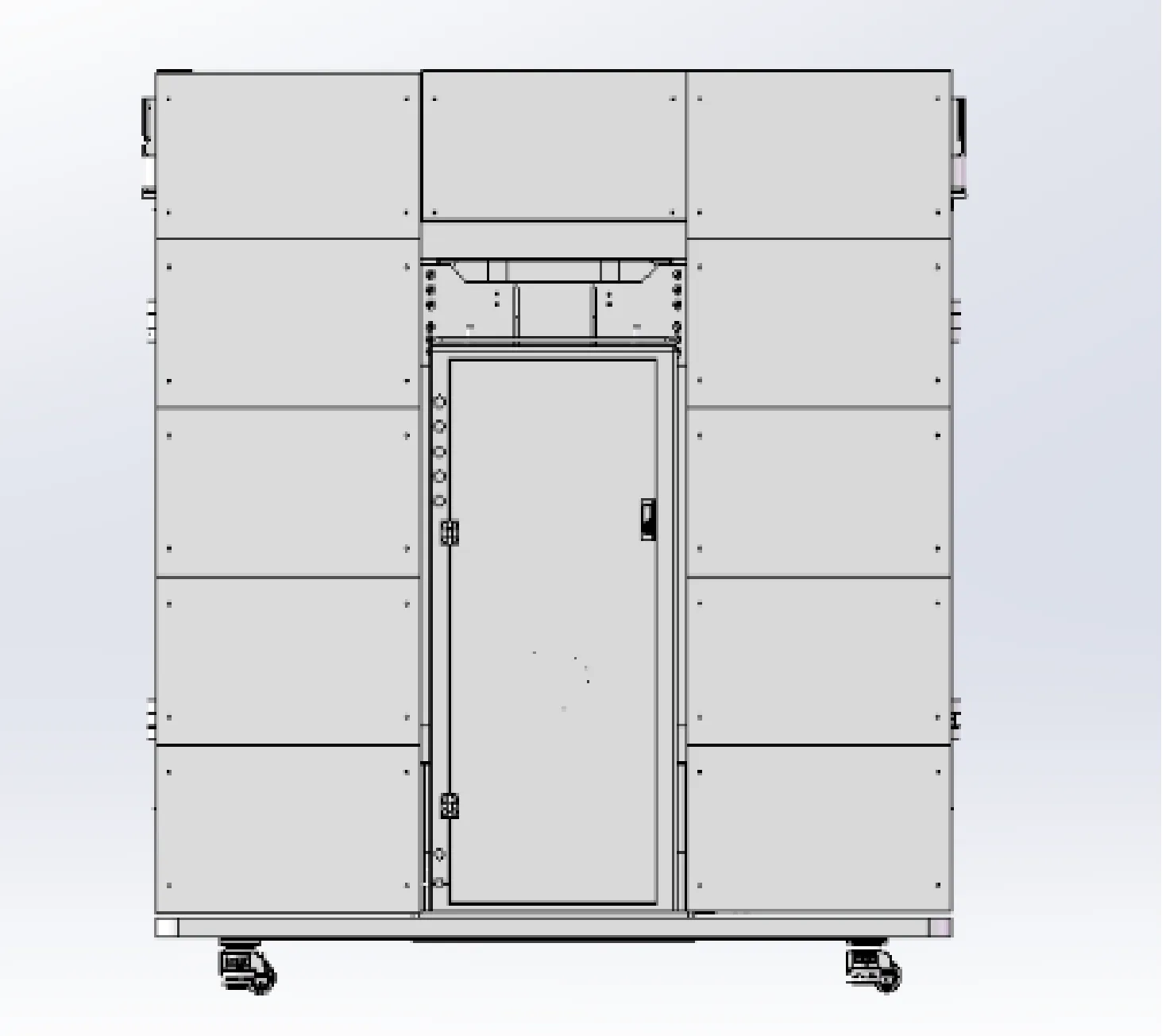

Folded the front view Folded the rear view
