Die-Casting Aluminum Design: Compared with the traditional bulky cabinet, the die-casting aluminum cabinet with humanized design is stronger, more light-weight and preise. This LED panel is highly praised for bete user experience.
| Item | P1.56 | P1.953 | P2.5 | P2.604 | P2.97 | P3.91 |
| Pixel Composition(SMD) | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Pixel Pitch(mm) | 1.56 | 1.953 | 2.5 | 2.604 | 2.98 | 3.91 |
| Module Resolution(WxH) | 160×160 | 128×128 | 100×100 | 96×96 | 84×84 | 64×64 |
| Module Size(mm) | 250×250 | |||||
| Module Weight(kg) | 0.5 | |||||
| Module Qty/Cabinet(WH) | 4×2/2×2 4×1/3×1/2×1 | |||||
| Cabinet Resolution(W×H) | 640×320 640×160 | 512×256 512×128 | 400×200 400×100 | 384×192 384×96 | 336×168 336×84 | 256×128 256×64 |
| Cabinet Size(mm) | 1000×50×20/500×500×20 1000×250×20/750×250×20/500×250×20 | |||||
| Cabinet Area(m²) | 0.5/0.25 0.25/0.1875/0.125 | |||||
| Cabinet Weight(kg/cabinet) | 9.6/4.8 4.8/3.6/2.4 | |||||
| Cabinet Material | Die cast aluminum | |||||
| Cabinet Density (dot/m²) | 409600 | 250000 | 160000 | 147456 | 112896 | 65536 |
| IP Rating | IP43 | |||||
| White Balance Brightness(nits) | 600-800nits | 600-800nits | 600-800nits | 600-800nits | 600-800nits | 600-800nits |
| Color Processor(bit) | 14-16bit | 14-16bit | 14-16bit | 14-16bit | 14-16bit | 14-16bit |
| Color Temperature(K) | 6500-9000 | |||||
| Visual Angle(HV) | 140°/140° | |||||
| Luminous point centre deviation | <3% | |||||
| Luminance uniformity | ≥97% | |||||
| Chromaticity uniformity | Within ±0.003Cx,Cy | |||||
| Contrast Ratio | ≥5000:1 | |||||
| The Max Power | 500 | 500 | 500 | 500 | 500 | 500 |
| Average Power | 165 | 165 | 165 | 165 | 165 | 165 |
| Input Voltage | AC100~240V | |||||
| Frequency(Hz) | 50&60 | |||||
| IC Driving(scan) | 1/32 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 |
| Refreshing Ratio(Hz) | 3840Hz | |||||
| Maintenance Method | Front Service | |||||
| Lifespan(hrs) | 100,000 | |||||
| Work Temperature/Humidity | -10°C-50°C/10%RH-98%RH (Non Condensing) | |||||
| Storage Temperature/Humidity | -20°C-60°C/10%RH-98%RH(Non Condensing) | |||||
As customers have higher requirements for LED displays, more and more cabinets have been developed to meet manket demands.Compared with the traditional bulky cabinetthe die-casting aluminum cabinet with humanized design is stronger,more ight-weight and precie. This ED panel is highly praised for beer user experience.The pixelpitches of this LED screen are SMDD41.56 P1.95 .P2 5 P2.6.P2 9.P3.9.

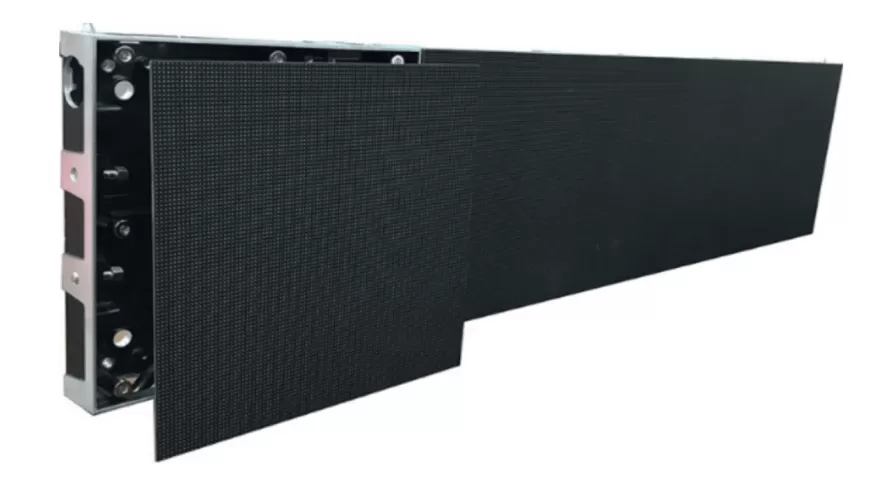

All electrical components: power supply,receiving card, and data cable are easly accessed fom the frontof the FA3 LED display.This design feature alows for direct wal
mount installation.
