Break the limitation that “the screen is merely a display tool" and achieve the integration of thedual values of“decoration + function”.
| Item | P0.93 | P1.25 | P1.25 | P1.56 | P1.87 |
| Pixel pitch | 0.9375mm (common anode) | 1.25mm (common anode) | 1.25mm (common anode) | 1.5625mm (common anode) | 1.875mm (common cathode) |
| Pixel Structure | COB 1R1G1B | COB 1R1G1B Virtual | |||
| Pixel density | 1,137,778 | 640,000 | 640,000 | 409,600 | 284,444 |
| Module size | 150x337.5mm | ||||
| LED package | Flip-chip COB | Flip-chip COB | Flip-chip COB | Flip-chip COB | Flip-chip COB |
| Module resolution(pixels) | 160x360 | 120x270 | 120x270 | 96x216 | 80x180 |
| Module arrangement per cabinet | 4x2 | ||||
| Cabinet dimension | 600x337.5x25mm | ||||
| Cabinet weight (including module) | 3.78 kg | ||||
| Cabinet resolution (pixels) | 480x270 | 480x270 | 480x270 | 384x216 | 320x180 |
| Maintenance | Full front maintenance | ||||
| System backup | Support | ||||
| White balance brightness | 500-800cd/m² | ||||
| Pixel-level calibration | Support | ||||
| Color temperature | 3000-9300K Adjustable; >98% | ||||
| Refresh rate | 3840Hz | ||||
| Viewing angle | 160°(V/H) | ||||
| Grayscale level | 16bits | ||||
| Contrast ratio | 10000:1 | ||||
| Scanning mode | 1/60 | 1/60 | 1/60 | 1/48 | 1/40 |
| Working voltage (input) | 100-240V,50/60Hz | ||||
| Max./Avg.Power consumption | ≤350W/m² / ≤150W/m² | ||||
| Storage temperature&humidity (RH) | -40°C~+70°C&10~95% | ||||
| Working temperature&humidity(RH) | -20°C~+50°C&10~95% | ||||
| IP ratings | IP30 | ||||
| Screen temperature rise | ≤5℃ | ||||
| Installation | On-wall/recessed/pedestal/suspended/stacked install | ||||
| Signal output | HDMI/VGA/DVI/DP | ||||
| Certification | RoHS/FCC/CE | ||||
Seamless Integration
It has strong scene compatibility and high installation fit, eliminating the sense of separationbetween traditional screens and decorative spaces.
Upgrade the Spatial Style
Designed with natural textures as the core, it conforms to modern decorative aesthetics, is compatible with various decoration stvlesand enhances the sense of luxury in the space.

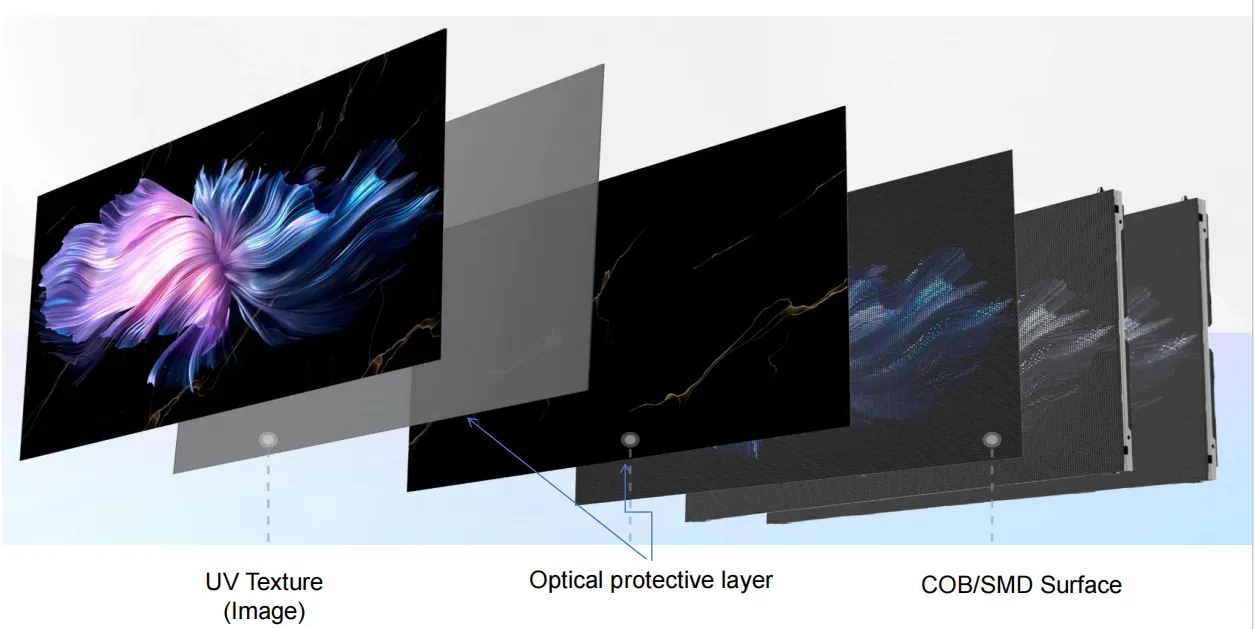

Stacked textured screen structure
Integrating the display screen intoarchitectural decoration to achieveseamless integration with theenvironment when the screen is off.harmonizing with various decorativedesigns based on the specific scenario.
