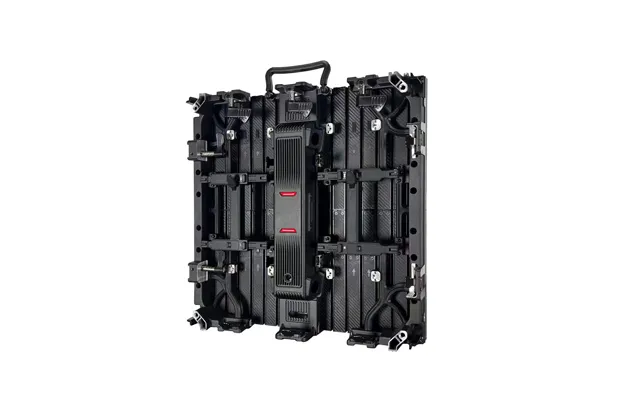

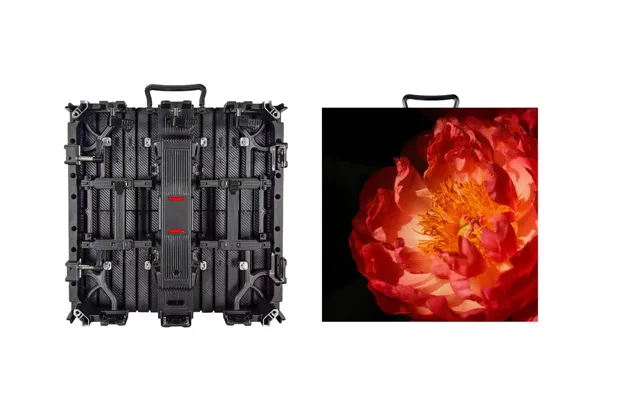

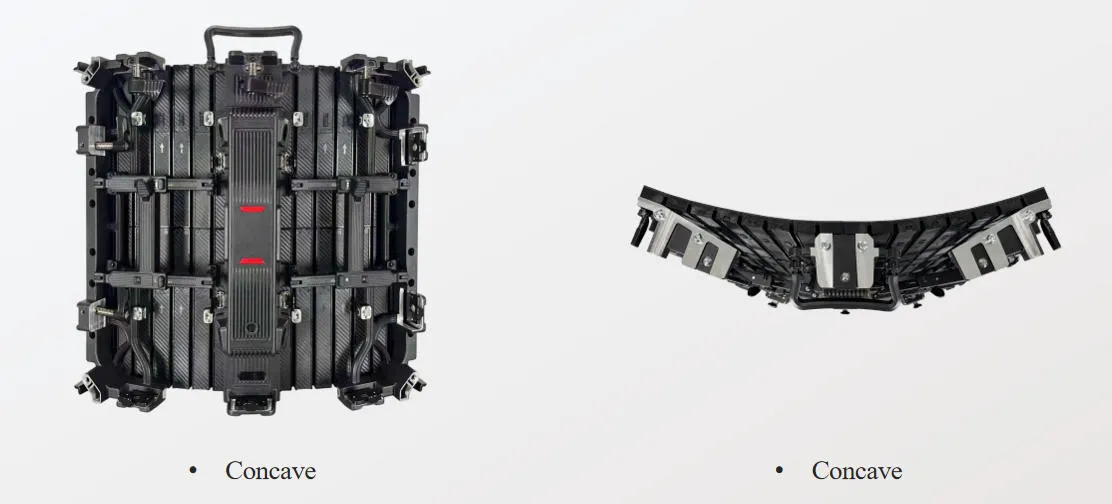

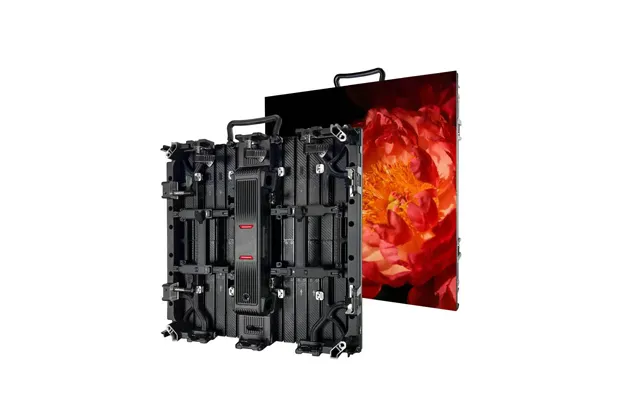

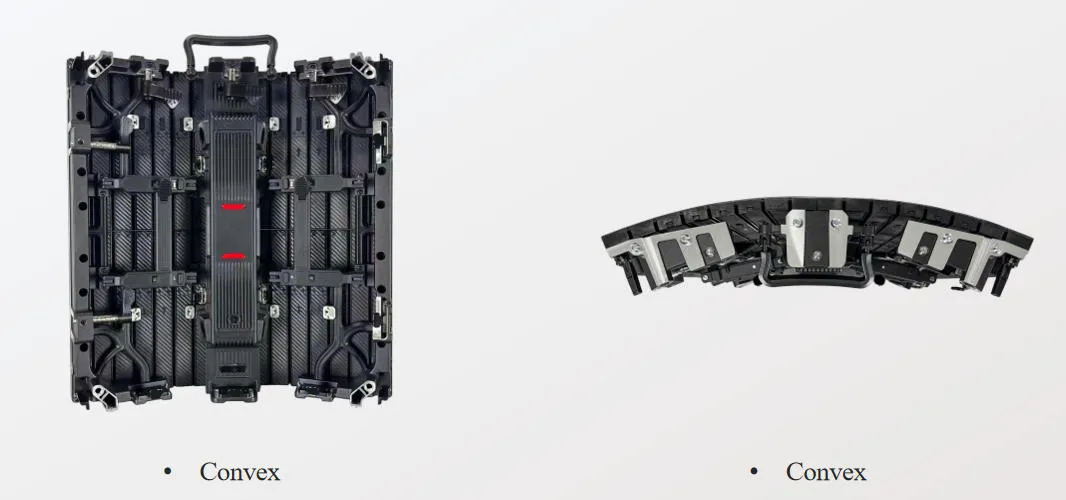

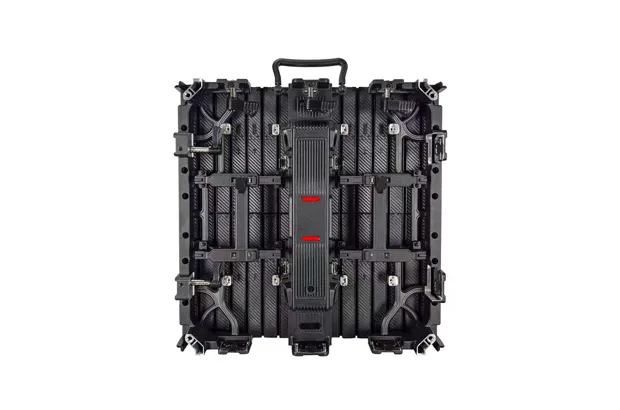

500Y Flexible Series, let rent LED display screen at will, can be spelled into S type, C type, and other changing shapes.
Make LED display screen more wonderful.
| Model No. (Indoor) | P1.95 | P2.604 | P2.97 | P3.91 |
| Pixel Pitch | 1.95mm | 2.604mm | 2.97mm | 3.91mm |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Packaging techinque | GOB | SMD | SMD | SMD |
| Pixel Density | 262144 pixel/㎡ | 147456 pixel/㎡ | 118336 pixel/㎡ | 65536 pixel/㎡ |
| Panel Dimension | 500mm*500mm*108mm | |||
| Panel Resolution | 256*256 pixel | 192*192 pixel | 172*172 pixel | 128*128 pixel |
| Scan Rate | 1/32 | 1/32 | 1/28 | 1/16 |
| Brightness | 600-800nits | 600-800nits | 600-800nits | 600-800nits |
| Refresh Rate | 3840Hz / 7680Hz | |||
| Gray Scale | 14-16bit | |||
| Color Temperature | 6500-9500K | |||
| Panel Weight | 8.5kg±10% | |||
| Cabinet Material | Die-Casting Cabinet | |||
| Max Power Consumption | ≤540w/㎡ | |||
| Ave Power Consumption | ≤270w/㎡ | |||
| Viewing Angle | H:160° V:140° | |||
| Working Voltage | AC100-240V~50/60Hz or AC200-240V~50/60Hz | |||
| IP Rating | IP43 | |||
| Serviceability | Rear | |||
| Curve | New Angle Lock: -22.5°/-20°-17.5°/-15°%-12.5°/-10°%-7.5°/-5/-2.5° /0°/+2.5°%+5°%+7.5°/+10°%+12.5°/+15°+/20°+/22.5° | |||
| Max Stacking/Hanging | 5m | |||
| Operating Temp/Humidity | -20℃~+45℃;10%~60%RH | |||
| Storage Temp/Humidity | -40℃~+60℃;10%~60%RH | |||
| Model No. (Outdoor) | P2.604 | P2.97 | P3.91 |
| Pixel Pitch | 2.604mm | 2.97mm | 3.91mm |
| LED Type | SMD1415 | SMD1415 | SMD1921 |
| Packaging techinque | SMD | SMD | SMD |
| Pixel Density | 147456 pixel/㎡ | 118336 pixel/㎡ | 65536 pixel/㎡ |
| Panel Dimension | 500mm*500mm*108mm | ||
| Panel Resolution | 192*192 pixel | 172*172 pixel | 128*128 pixel |
| Scan Rate | 1/32 | 1/28 | 1/16 |
| Brightness | ≥4500nits | ≥4500nits | ≥4500nits |
| Refresh Rate | 3840Hz / 7680Hz | ||
| Gray Scale | 14-16bit | ||
| Color Temperature | 6500-9500K | ||
| Panel Weight | 8.5kg±10% | ||
| Cabinet Material | Die-Casting Cabinet | ||
| Max Power Consumption | ≤800w/㎡ | ||
| Ave Power Consumption | ≤270w/㎡ | ||
| Viewing Angle | H:160° V:140° | ||
| Working Voltage | AC100-240V~50/60Hz or AC200-240V~50/60Hz | ||
| IP Rating | IP65 | ||
| Serviceability | Rear | ||
| Curve | New Angle Lock: -22.5°/-20°-17.5°/-15°%-12.5°/-10°%-7.5°/-5/-2.5° /0°/+2.5°%+5°%+7.5°/+10°%+12.5°/+15°+/20°+/22.5° | ||
| Max Stacking/Hanging | 5m | ||
| Operating Temp/Humidity | -20℃~+45℃;10%~60%RH | ||
| Storage Temp/Humidity | -40℃~+60℃;10%~60%RH | ||

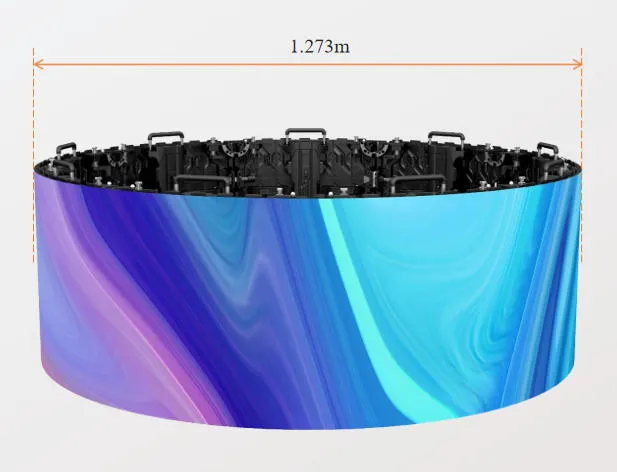

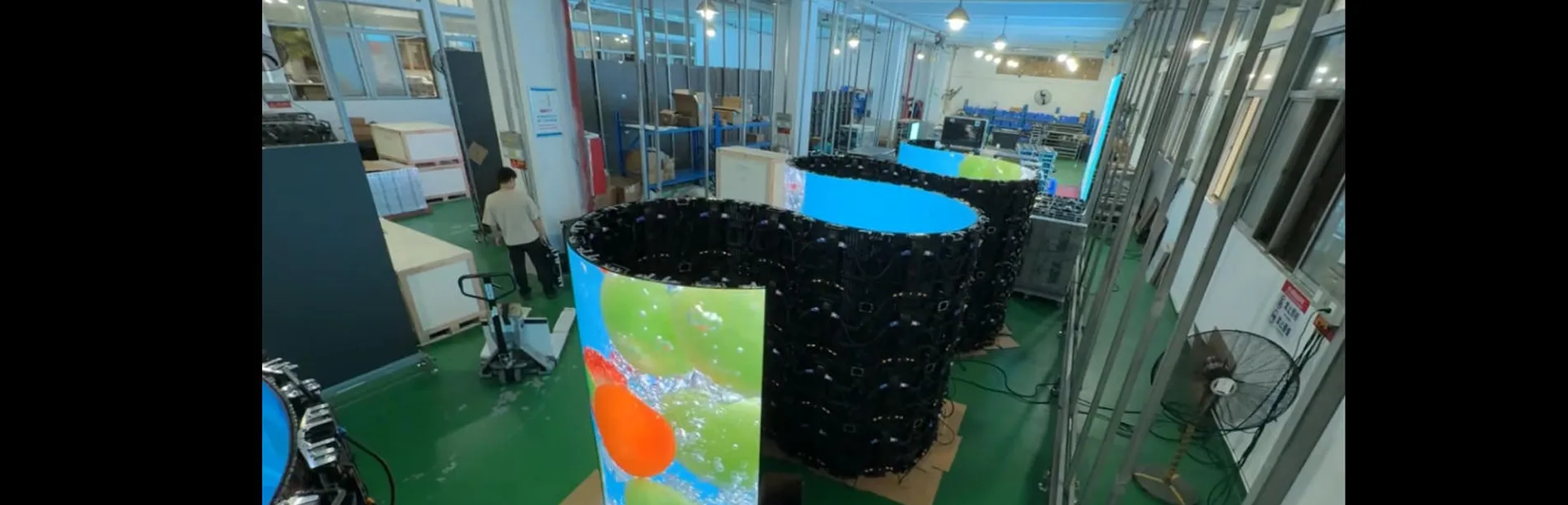

Cylindrical shape can be achieved by merely 8 cabinets, minimum outside diameter is 1.273m

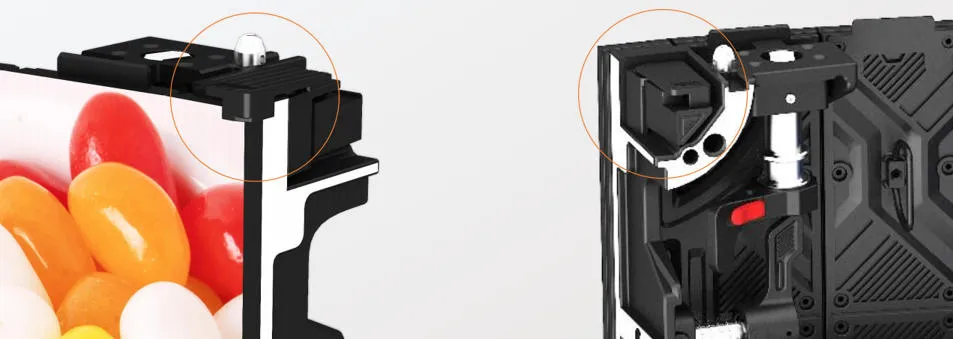

• Cabinet corners are reserved for protection corner installation.
• The optional protection corner can protect corner LEDs from damage due to collisions.
• Equipped with superior components and IC

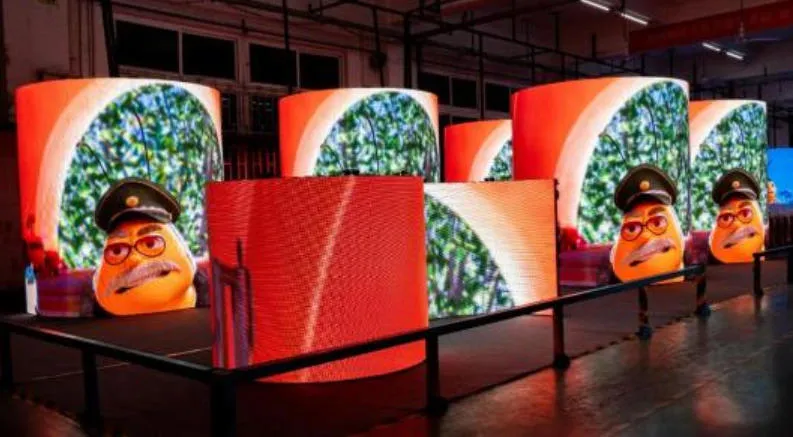

• Excellent, consistent and longevity performance

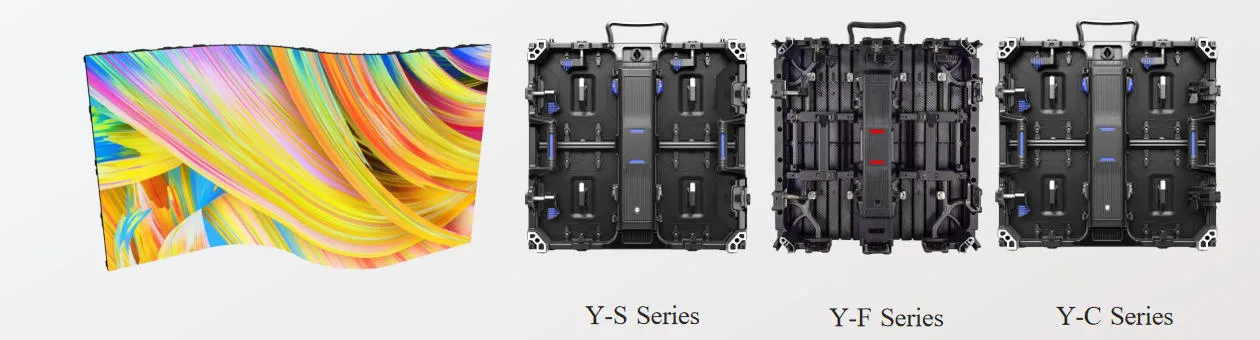

• The Y-F series supports combined with Y-S, Y-C Series
• Quickly Build Versatile Shapes
