This Outdoor COB fine-pitch advertising display is a next-generation, portable outdoor advertising solution that integrates high-definition, high-brightness display capabilities, rapid deployment, and intelligent control. It overcomes common drawbacks of traditional outdoor LCD displays—such as low brightness, poor contrast, and severe glare—by utilizing an aluminum profile cabinet and anti-glare tempered glass. Suitable for a wide range of applications including commercial promotions, bus shelters, upscale residential complexes, urban lighting projects, exhibitions, and retail traffic generation, it represents a new generation of mobile visual communication solutions.
| Model | P1.5 | P1.9 |
| Lamp Protection | COB Packaging process | |
| Pixel Pitch | 1.5 | 1.9 |
| Display Resolution | 640*1120 | 504*882 |
| Display Size (mm) | 1000*1750（Single-sided） | |
| Screen Thickness (mm) | 185 | |
| Overall Dimensions (mm) | 1200*800*2430（Single-sided/Double-sided） | |
| Packaging Dimensions (mm) | 1220*1000*2480 | |
| Unit Weight (kg) | Double-sided: net weight 265 kg, gross weight 350 kg. | |
| Refresh Rate (Hz) | ≥7680 | |
| Brightness (cd) | 3000cd | |
| Contrast Ratio | ≥16000:1 | |
| Grayscale Level (bit) | 15bit (22-bit enabled via software） | |
| Maximum Power Consumption (W) | Single-sided≤2000W，Double-sided≤4000W | |
| Average Power Consumption (W) | Single-sided≤800，Double-sided≤1600 | |
| Control System | Nova Synchronous/Asynchronous Playback System | |
Manufactured using COB technology, it features a wide viewing angle and offers resistance to UV radiation, blue light, and corrosion, while withstanding extreme temperatures.
It delivers a color gamut exceeding 110% of DCI-P3, ensuring colors that are closer to reality.
With an ultra-high contrast ratio of up to 16,000:1—more than ten times that of standard LCDs (1,000:1)—it produces clear images with distinct contrast between light and dark areas.
The cabinet utilizes a custom-molded aluminum profile design, while the modules feature a waterproof die-cast aluminum base, ensuring superior flatness, heat dissipation, and corrosion resistance.
Equipped with a high-end Nova control system, it supports 15-bit grayscale (extendable to 22-bit via software) and advanced color calibration, resulting in refined image quality and vibrant colors.
An integrated brightness sensor allows the display to automatically adjust its brightness based on ambient lighting conditions.

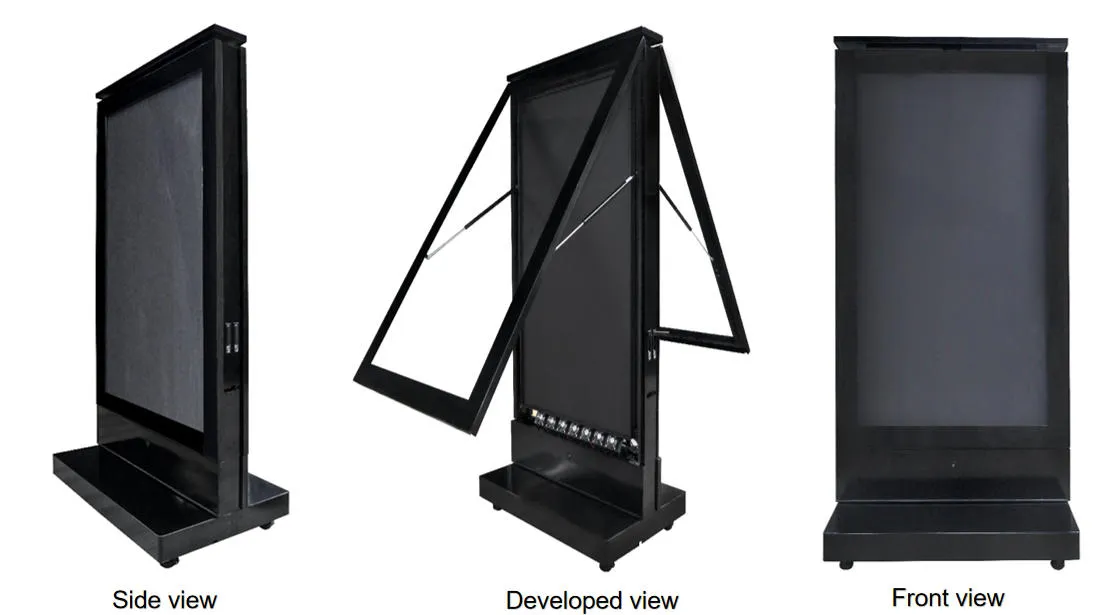

Available in single-sided or double-sided configurations for greater versatility, it features heavy-duty hydraulic support struts to ensure convenient maintenance and enhanced reliability.
