| LCD | Size | 43inch 49inch 55inch 65inch 75inch | 43inch 49inch 55inch 65inch 75inch |
| Native Resolution | 3840×2160 | 3840×2160 | |
| Brightness(Option) | 1500 nits 2500 nits | 1500 nits 2500 nits | |
| Contrast Ratio | 1200:1 | 1200:1 | |
| Light Lifetime (Typ.) | 50000 Hours | 50000 Hours | |
| Electrical parameters | Rated input voltage | AC 100-240V 50/60Hz | AC 100-240V 50/60Hz |
| Power Consumption(Max) | 220-550W | 220-550W | |
| Standby Power consumption | ≤0.5W | ≤0.5W | |
| System parameters | System | Google TV+Dolby Atmos | Android 14.0 |
| Main Chip | MT9602 | T982 | |
| CPU | ARMCortex-A53 quad core 1.5 GHz | ARM Cortex-A55*4 | |
| DDR3/Flash | 2G/16G | DDR4 4G/EMMC5.1 64G | |
| Network | 100MDHCP/2.4G&5G,2T2R | RJ45 10/100M | |
| WIFI | 802.11a/b/g/n/ac(2T2R) | 2.4G+5GWIFI | |
| Port | HDMI*3 USB2.0*2 RG45*1 Tuner*1 CVBS In*1 | HDMI In*2 USB3.0*1 USB2.0*1 RG45*1 AUDIOOUT*1 | |
| Control | Bluetooth +IR | CS/BS | |
| Bluetooth | Bluetooth5.1 | BT5.4 | |
| Language | English/Chinese | English/Chinese | |
| Mechanical Specs | Bezel Width (T/B/L/R)mm | 20/20/20/20 | 20/20/20/20 |
| Color | Black | Black | |

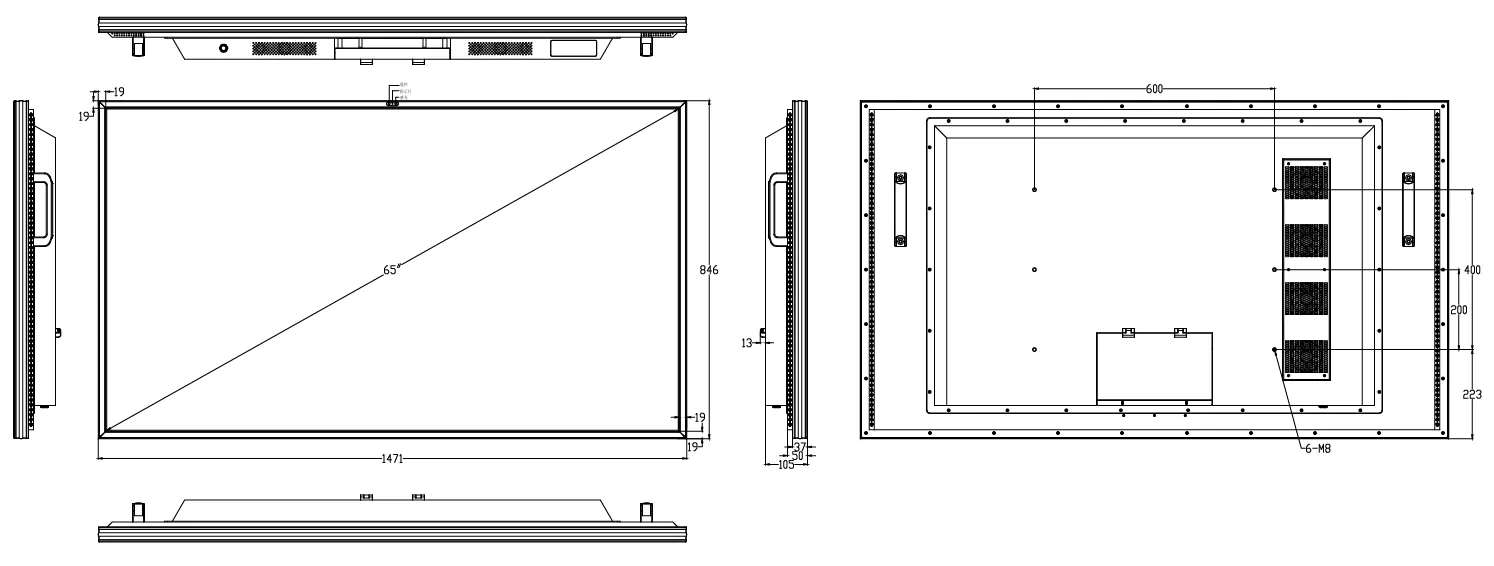

| Monitor Dimension (LxHxD) | 43'': 983.8×572×105 49'': 1116.4×646.6×105 55'': 1253×723×105 65'': 1468.5×843.6×99.6 75'': 1695×973×105 | 43'': 983.8×572×105 49'': 1116.4×646.6×105 55'': 1253×723×105 65'': 1468.5×843.6×99.6 75'': 1695×973×105 | |
| VESA Mounting (LxH)mm | 400×400 600×400 600×500 | 400×400 600×400 600×500 | |
| Waterproof Level | IP65 IP66 | IP65 IP66 | |
| Environment | Operating Temperature | -10℃-50℃ | -10℃-50℃ |
| Storage Temperature | -20℃-60℃ | -20℃-60℃ | |
| Humidity | 10-95%(Non-condensing) | 10-95%(Non-condensing) | |
| Sunlight Level | Partial sunlight | Partial sunlight | |
| *The parameter index will change according to the specific situation of the project (the product shall be subjected to the submitted contract specification) | |||
1、4K Ultra HD for a better viewing experience.
2、Anti-glare, 2500 nit LED screen, providing clearer and brighter images.
3、This device features an all-aluminum body and is equipped with 3mm tempered glass to withstand damage from impacts.
4、Smart light sensors can automatically adjust screen brightness.
5、Integrates temperature control sensors to adjust working temperature.
6、lP65 protection level, waterproof shell.
7、Equipped with the Google platform.
8、Equipped with built-in 2*10W high-quality speakers, it features waterproof characteristics and a long lifespan.
9、This device supports Bluetooth control and allows voice intercom whenused with a remote control.
1.During the transportation process, the machine should be placed and fixed in strictaccordance with the identification of the outer packaging box to avoid the machinetipping and foreign objects during transportation (especially the front of the displayscreen);
2. Long-distance single transportation requires wooden box or wooden frameprotection.
