Cans Screen RX Series (P1.875,P2)
Cans Screen RX Series (P1.875,P2)
Cans Screen RX Series (P1.875,P2)

Cans Screen RX Series (P1.875,P2)

Creative Series-Cans LED Display Screen

Contact Us Pdf Download
Cans Screen RX Series (P1.875,P2)
Specifications
Case Studies
Features

Cans Screen RX Series (P1.875,P2) Specifications


Product nameP1.875 LED Cans-shape ScreenP2 LED Cans-shape Screen
Pixel configuration1R1G1B(Full color)1R1G1B(Full color)
LED typeSMD1515SMD1515
Pixel density (dots/m²)284445250000
Moduel size (mm)Special shape customization / 300mm x 168.75mmSpecial shape customization / 320mm x 160mm
Brightness500-700(cd/m²)500-700(cd/m²)
Drive mode45 Scan40Scan
Refresh rate≥3000-3840 Hz≥3000-3840 Hz
Frequency50 / 60 Hz50 / 60 Hz
Grey level12-16 Bit12-16 Bit
Viewing angle(W/H)160°/160°160°/160°
Cabinet materialAluminum / IronAluminum / Iron
IP GradeIP43IP43
Maintenance modeSupport Front serviceSupport Front service

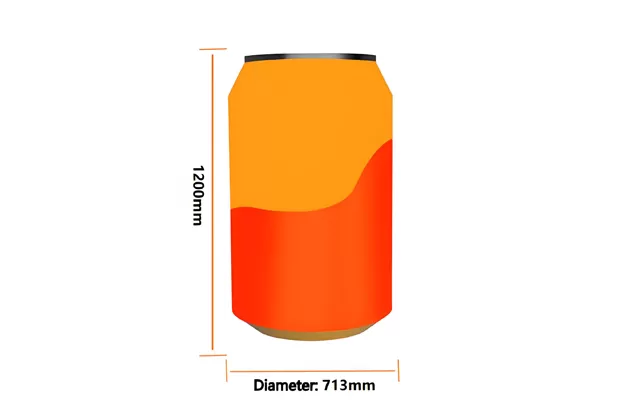

SizeDiameter 764mmDiameter 764mmDiameter 764mmDiameter 764mmDiameter 713mmDiameter 713mmDiameter 713mmDiameter 713mmDiameter 713mm
High 1.341mHigh 1.51mHigh 1.678mHigh 1.847mHigh 1.27mHigh 1.43mHigh 1.59mHigh 1.75mHigh 1.91m
Whole area2.8m²3.2m²3.61m²4.01m²2.47m²2.83m²3.19m²3.55m²3.91m²
Whole resolution(dots)1280 × 7151280 × 8051280 × 8951280 × 9851120 × 6351120 × 7151120 × 7951120 × 8751120 × 955
Net weight>75kg>75kg>75kg>75kg75kg>75kg>75kg>75kg>75kg
Max Consumption≥1200W≥1200W≥1200W≥1200W≥1200W≥1200W≥1200W≥1200W≥1200W
Avg Consumption≥600W≥600W≥600W≥600W≥600W≥600W≥600W≥600W≥600W
Display modeasynchronousasynchronousasynchronousasynchronousasynchronousasynchronousasynchronousasynchronousasynchronous
Mooncell systemMooncell systemMooncell systemMooncell systemMooncell systemMooncell systemMooncell systemMooncell systemMooncell system
VoltageAC110/220VAC110/220V
Working Temperature-20—60(℃)-20—60(℃)
Storage Temperature-20—60(℃)-20—60(℃)
Working Humidity10—85%(RH)10—85%(RH)
Storage Humidity10—85%(RH)10—85%(RH)


Cans Screen RX Series (P1.875,P2) Case Studies

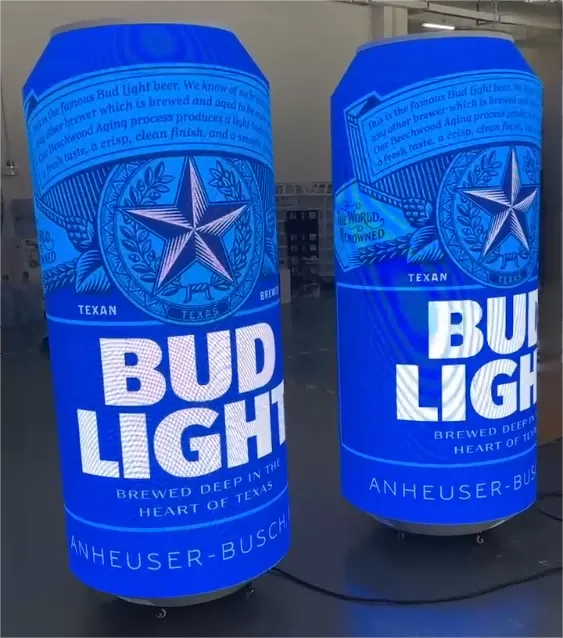

Cans Screen RX Series (P1.875,P2) Video
Cans Screen RX Series (P1.875,P2) Video

Cans Screen RX Series (P1.875,P2) Detailed Information and Features

Creative Series Cans
Cans Screen RX Series (P1.875,P2) Detailed Information and Features
Front Service
Front Service
Wide viewing angle
Wide viewing angle
HD
HD
High contrast
High contrast
Seamless splicing
Seamless splicing
Creative customization
Creative customization
Model: P1.8 P2.0 P2.5
Model: P1.8 P2.0 P2.5

  • Unique creative design

  • Ultra-high-definition display effect

  • Ultra-wide visual experience

  • Extremely long service life

Application
