K1.25 K1.53 K1.86 K2 K2.5(640×480mm)
| Item | K1.25 | K1.53 | K1.86 | K2 | K2.5 |
| Pixel pitch | 1.25mm | 1.538mm | 1.86mm | 2mm | 2.5mm |
| Pixel density | 640000 dots/m² | 422500 dots/m² | 288906 dots/m² | 250000 dots/m² | 160000 dots/m² |
| Module size | 320x160mm | ||||
| LED package | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2121 |
| Module resolution(pixels) | 256x128 | 208x104 | 172x86 | 160x80 | 128x64 |
| Module arrangement per cabinet | 2x3 | ||||
| Cabinet dimension | 640x480x48mm | ||||
| Cabinet weight(including module) | 7.2kg | ||||
| Cabinet resolution(pixels) | 512x384 | 416x312 | 344x258 | 320x240 | 256x192 |

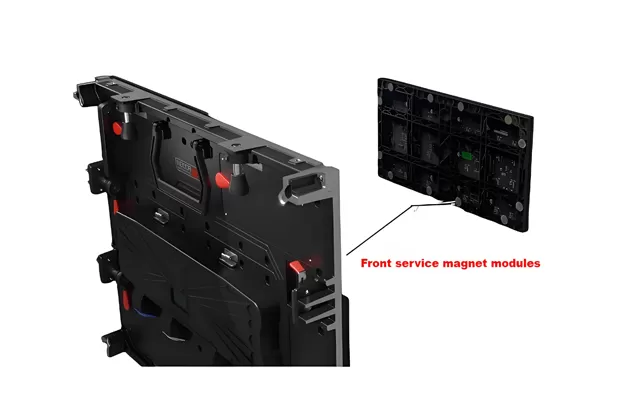

| Maintenance | Full front service | ||||
| System backup | Support | ||||
| White balance brightness | 500-800cd/m² | ||||
| Pixel-livel calibration | Support | ||||
| Color temperature | 6500K(adjustable) | ||||
| Refresh rate | 3840Hz | ||||
| Viewing angle | 160(V/H) | ||||
| Brightness uniformity | >99% | ||||
| Grayscale level | 16bits | ||||
| Contrast ratio | 5000:01:00 | ||||
| Scanning mode | 1/64 | 1/52 | 1/43 | 1/40 | 1/32 |
| Working voltage(input) | 110-240V,50/60Hz | ||||
| Max./Avg.Power consumption | 500W/m²/165-260W/m² | ||||
| Storage temperature&humidity(RH) | -20℃-50℃&35-75% | ||||
| Working temperature&humidity(RH) | -20℃-50℃&35-75% | ||||
| IP ratings | IP45 | ||||
| Screen temperature rise | ≤5℃ | ||||
| Installation | On-wall/recessed/pedestal/suspended/stacked install | ||||
| Signal output | HDMI/VGA/DVI/DP | ||||
| Certification | RoHS/FCC/CE | ||||
