LED Flexible Transparent Film Display
| LED Adhensive Led film screen Specification | |||||||
| Pixel Pitch | L :4mm | L :4-8mm | L :5mm | L :6mm | L :8mm | L :10mm | L :16mm |
| /W :4mm | /W :4-8mm | /W :5mm | /W :6mm | /W :8mm | /W :10mm | /W :16mm | |
| Pixel Density | 62500dots/㎡ | 62500-40000dots/㎡ | 40000dots/㎡ | 27778dots/㎡ | 15625dots/㎡ | 10000dots/㎡ | 3906dots/㎡ |
| Transparency | ＞85% | ＞85% | ＞85% | ＞85% | ＞88% | >95% | >95% |
| Module Size(mm) | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm |
| LED Type | 2121 | 2121 | 2121 | 2121 | 2121 | 2121 | 2121 |
| Weight | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 | ≤ 3.5KG/m2 |
| Resolution(dots) | 250x60pix | 250x30pix | 200x48pix | 166x40pix | 125x30pix | 100x24pix | 64x15pix |
| LED Control System | Synchronous/Async | Synchronous/Async | Synchronous/Async | Synchronous/Async | Synchronous/Async | Synchronous/Async | Synchronous/Async |
| Brightness | 3000cd/㎡； | 3000cd/㎡； | 3000cd/㎡； | 3000cd/㎡； | 3000cd/㎡； | 3000cd/㎡； | 3000cd/㎡； |
| adjustable | adjustable | adjustable | adjustable | adjustable | adjustable | adjustable | |
| Viewing Angle | H 160，W 140 | H 160，W 140 | H 160，W 140 | H 160，W 140 | H 160，W 140 | H 160，W 140 | H 160，W 140 |
| Thickness | 3mm | 3mm | 3mm | 3mm | 3mm | 3mm | 3mm |
| Resume Upload From Break point | √ | √ | √ | √ | √ | √ | √ |
| Life Span | ≥ 100,000hrs | ≥ 100,000hrs | ≥ 100,000hrs | ≥ 100,000hrs | ≥ 100,000hrs | ≥ 100,000hrs | ≥ 100,000hrs |
| Gray Scale | ≥16(bit) | ≥16(bit) | ≥16(bit) | ≥16(bit) | ≥16(bit) | ≥16(bit) | ≥16(bit) |
| Color Temperature | 5500K-15000K | 5500K-15000K | 5500K-15000K | 5500K-15000K | 5500K-15000K | 5500K-15000K | 5500K-15000K |
| （adjustable） | （adjustable） | （adjustable） | （adjustable） | （adjustable） | （adjustable） | （adjustable） | |
| Drive Mode | static | static | static | static | static | static | static |
| Maximum Power Consumption | 1200W/ m² | 1200W/ m² | 1200W/ m² | 1200W/ m² | 1200W/ m² | 1200W/ m² | 1200W/ m² |
| Average Power Consumption | 450W/ m² | 450W/ m² | 450W/ m² | 450W/ m² | 450W/ m² | 450W/ m² | 450W/ m² |
| Input Voltage | 200V ～240V±10%； | 200V ～240V±10%； | 200V ～240V±10%； | 200V ～240V±10%； | 200V ～240V±10%； | 200V ～240V±10%； | 200V ～240V±10%； |
| AC50HZ， | AC50HZ， | AC50HZ， | AC50HZ， | AC50HZ， | AC50HZ， | AC50HZ， | |
| Operating Temperature | 0℃～+60℃ | 0℃～+60℃ | 0℃～+60℃ | 0℃～+60℃ | 0℃～+60℃ | 0℃～+60℃ | 0℃～+60℃ |
| Operating Humidity | 20%RH～85%RH | 20%RH～85%RH | 20%RH～85%RH | 20%RH～85%RH | 20%RH～85%RH | 20%RH～85%RH | 20%RH～85%RH |
| Storage Temperature | -20℃ ~+65℃ | -20℃ ~+65℃ | -20℃ ~+65℃ | -20℃ ~+65℃ | -20℃ ~+65℃ | -20℃ ~+65℃ | -20℃ ~+65℃ |
| Storage Humidity | 10%RH～85%RH | 10%RH～85%RH | 10%RH～85%RH | 10%RH～85%RH | 10%RH～85%RH | 10%RH～85%RH | 10%RH～85%RH |
| Pixel Pitch | L :6mm/W :6mm | L :8mm/W :8mm | L :10mm/W :10mm |
| Pixel Density | 27777dots/㎡ | 15625dots/㎡ | 10000dots/㎡ |
| Transparency | ＞85% | ＞88% | >95% |
| Module Size(mm) | 1200mm*240mm | 1200mm*240mm | 1200mm*240mm |
| LED Type | 2121 | 2121 | 2121 |
| Weight | 1.04kg | 1.11kg | 1.21kg |
| Resolution(dots) | 200x40pix | 150x30pix | 120x24pix |
| LED Control System | Synchronous/Async | Synchronous/Async | Synchronous/Async |
| Brightness | 3000cd/㎡；adjustable | 2500cd/㎡；adjustable | 2000cd/㎡；adjustable |
| Viewing Angle | H 160，W 140 | H 160，W 140 | H 160，W 140 |
| Thickness | 3mm | 3mm | 3mm |
| Resume Upload From Break point | √ | √ | √ |
| Life Span | ≥ 100,000hrs | ≥ 100,000hrs | ≥ 100,000hrs |
| Gray Scale | ≥16(bit) | ≥16(bit) | ≥16(bit) |
| Color Temperature | 5500K-15000K（adjustable） | 5500K-15000K（adjustable） | 5500K-15000K（adjustable） |
| Drive Mode | static | static | static |
| Maximum Power Consumption | 1200W/ m² | 1200W/ m² | 1200W/ m² |
| Average Power Consumption | 450W/ m² | 450W/ m² | 450W/ m² |
| Input Voltage | 200V ～240V±10%；AC50HZ， | 200V ～240V±10%；AC50HZ， | 200V ～240V±10%；AC50HZ， |
| Operating Temperature | 0℃～+60℃ | 0℃～+60℃ | 0℃～+60℃ |
| Operating Humidity | 20%RH～85%RH | 20%RH～85%RH | 20%RH～85%RH |
| Storage Temperature | -20℃ ~+65℃ | -20℃ ~+65℃ | -20℃ ~+65℃ |
| Storage Humidity | 10%RH～85%RH | 10%RH～85%RH | 10%RH～85%RH |

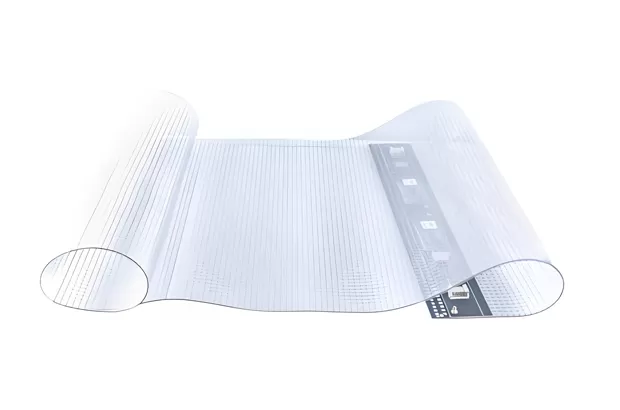

Adhensive LED film screen (also known as flexible LED transparent display or soft LED transparent display) is mainly composed of ultra-low resistance ultra-thin circuit boards, multi-channel built-in driver IC wicks and optical-grade packaging materials. It is a new type of excellent medium. Platform/advertising carrier.
Compared with traditional LED screens and transparent displays, it is softer, more transparent, lighter, and has a wider range of applications. It has the characteristics of high light transmittance (the transmittance can reach more than 98%), light and thin attachment, strong flexibility,

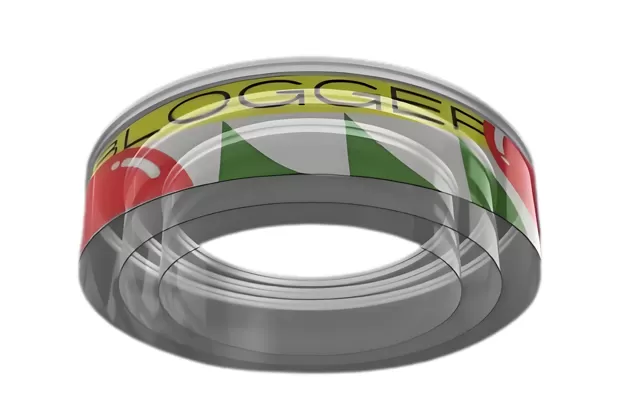

energy saving and environmental protection, and easy installation. It can be rolled up arbitrarily, and can be used as creative LED displays such as curved screens, wave screens, and cylindrical screens. It supports dynamic video, picture and text display and other multimedia display forms to perfectly realize your imagination.
1.High Trainsparent
More than 95% Transparent, Almost invisible for PCB at 1~3meters distance. Good Day lighting and Led Film Landscape Consistency.
2. Energy saving
Super Heat Dissipation, lmprove efficiency, Lower failure ratio, Longer Life time.
3.High Flexibility
High flexibility, adhensive to any arc irregular shape, static bending Curvature reach 5cm.
4.Invisible
Micron light-emitting chip adoptive. Perfect clear and Transparent.
5.Perfect Look
High refresh, High grayscale, High Colorful, Adjustable brightness acheive comfortable Viewer effect.
6.Wider view angle
Horizontal and vertical both 160 degree view angle, Seamless, Uniform colors, Perfect Bi-side view effect.
7.Thin,light,adhensive
Less 2mm thick, Light weighter 0.5-1.2kg/sqm, No need Steel Structure, Effectively Reducing Transport and install Cost.
8.Easy Install
Just stick screen lightly, and connect signal and power. Effectively Save Install and Maintenance Cost.
9.Customized size
Client project customized ,seamless splicing, invisible install, integration with Glass Completely.
