The mobile All-in-One LED conference display is a next-generation device—suitable for both mobile and fixed installations—that integrates high-definition display capabilities, various size and pixel pitch options, and intelligent controls. Featuring high-definition visuals and support for COB/GOB technologies for enhanced durability, it is widely applicable in settings such as conference rooms, broadcast studios, and classrooms.
| Model | 108-inch 135-inch | |||
| Pixel Pitch | 0.93 | 1.25 | 1.56 | 1.87 |
| Manufacturing Process | COB | COB/GOB | COB/GOB | GOB |
| Display Resolution | 2560*1440 (108-inch) 3200*1800 (135-inch) | 1920*1080 (108-inch) 2400*1350 (135-inch) | 1536*864 (108-inch) 1920*1080 (135-inch) | 1280*720 (108-inch) 1600*900 (135-inch) |
| Android Version | Android 13.0 | Android 11.0 | ||
| Memory/Storage | 8GB/64GB | 4GB/32GB | ||
| Input Interfaces | 2×HDMI 2.0 2×USB3.0；1×USB2.0 | 1×HDMI 1.3，2×USB2.0 | ||
| Audio | Supported | |||
| Optional Accessories | OPS / IR Touch / Screen Casting Device / Camera | |||
| Display Dimensions (mm) | 108-inch: 2400(W)*1350(H) 135-inch: 3000(W)*1687.5(H) | |||
| Height from Ground (mm) | 800mm | |||
| Refresh Rate (Hz) | ≥3840HZ / 7680HZ | |||
| Brightness (cd) | 600cd (COB optional 1200cd） | |||
| Max Power Consumption (W) | 108-inch: ≤2050 135-inch: ≤3200 | |||
| Average Power Consumption (W) | 108-inch: ≤450 135-inch: ≤800 | |||
| Weight (kg) | 108-inch: Approx. 150 135-inch: Approx. 180 | |||
| Model | 162-inch | |||
| Pixel Pitch | 0.93 | 1.25 | 1.56 | 1.87 |
| Manufacturing Process | COB | COB/GOB | COB/GOB | GOB |
| Display Resolution | 3840*2160 | 2880*1620 | 2304*1296 | 1920*1080 |
| Android Version | Android 13.0 | Android 11.0 | ||
| Memory/Storage | 8GB/64GB | 4GB/32GB | ||
| Input Interfaces | 2×HDMI 2.0 2×USB3.0；1×USB2.0 | 1×HDMI 1.3 2×USB2.0 | ||
| Audio | Supported | |||
| Touch (20 points) | Optional | |||
| Display Dimensions (mm) | 3600(W)*2025(H) | |||
| Height from Ground (mm) | 800mm | |||
| Refresh Rate (Hz) | ≥3840HZ / 7680HZ | |||
| Brightness (cd) | 600cd (COB optional 1200cd） | |||
| Max Power Consumption (W) | ≤4700 | |||
| Average Power Consumption (W) | ≤1100 | |||
| Weight (kg) | Approx. 240 | |||
Deeply customized based on Android 13, featuring a rich app ecosystem and exceptional expandability.
Supports local and online HD video playback, as well as 4K HDR video decoding and playback.
Optional OPS industrial PC; supports Windows/Android dual-system switching, as well as peripherals such as infrared touch, cameras, microphones, and wireless casting devices.
COB surface light source offering excellent uniformity and high contrast while minimizing moiré patterns; features a wide COB viewing angle of up to 175 degrees.
Supports customization for high brightness (1200 cd/m²), high refresh rates (3840Hz/7680Hz), and high grayscale depth (14-bit native, 22-bit via software).
Supports wireless screen casting across multiple platforms—including Windows, Mac, iPhone/iPad, and Android—and supports HTML5 browsers.
Designed for user-friendly installation and maintenance; eliminates the need for rear access aisles or complex structural modifications (such as steel framing) and supports both wall-mounted and mobile floor-stand installations.

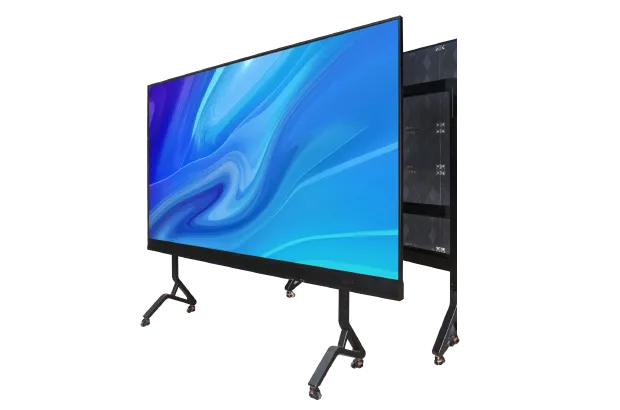

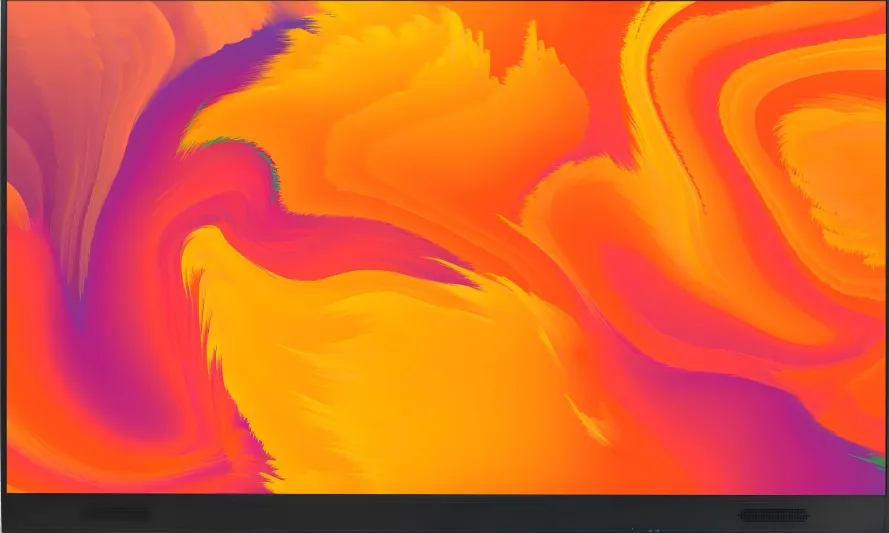

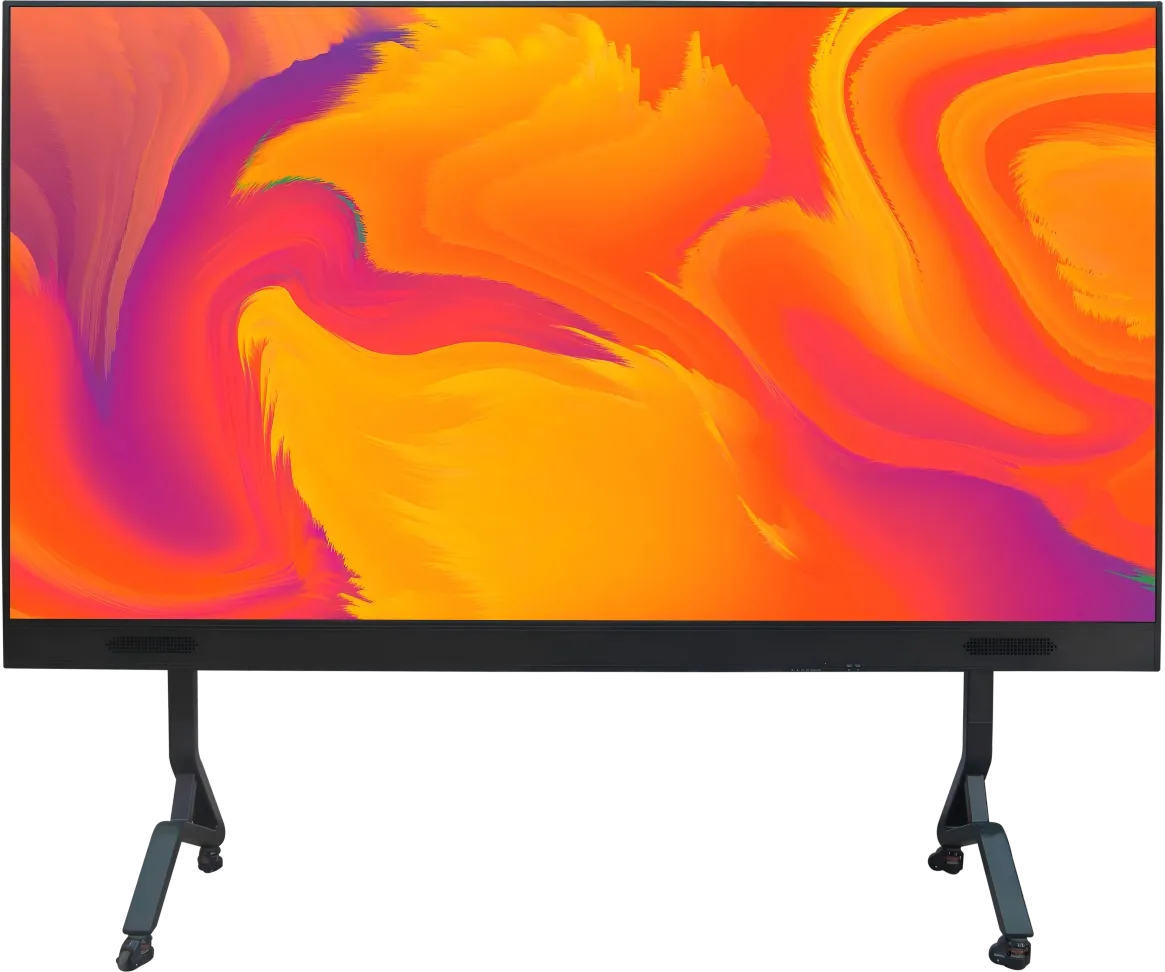

Mobile All-in-one conference display Wall-mounted All-in-one conference display
