Global Outdoor DIP3lN1 LED Screen Creator No More Waiting To Be Energy-Efficient
| Product Name | S10 |
| Pixel Configuration | DIP 570 |
| Pixel Pitch | 10mm |

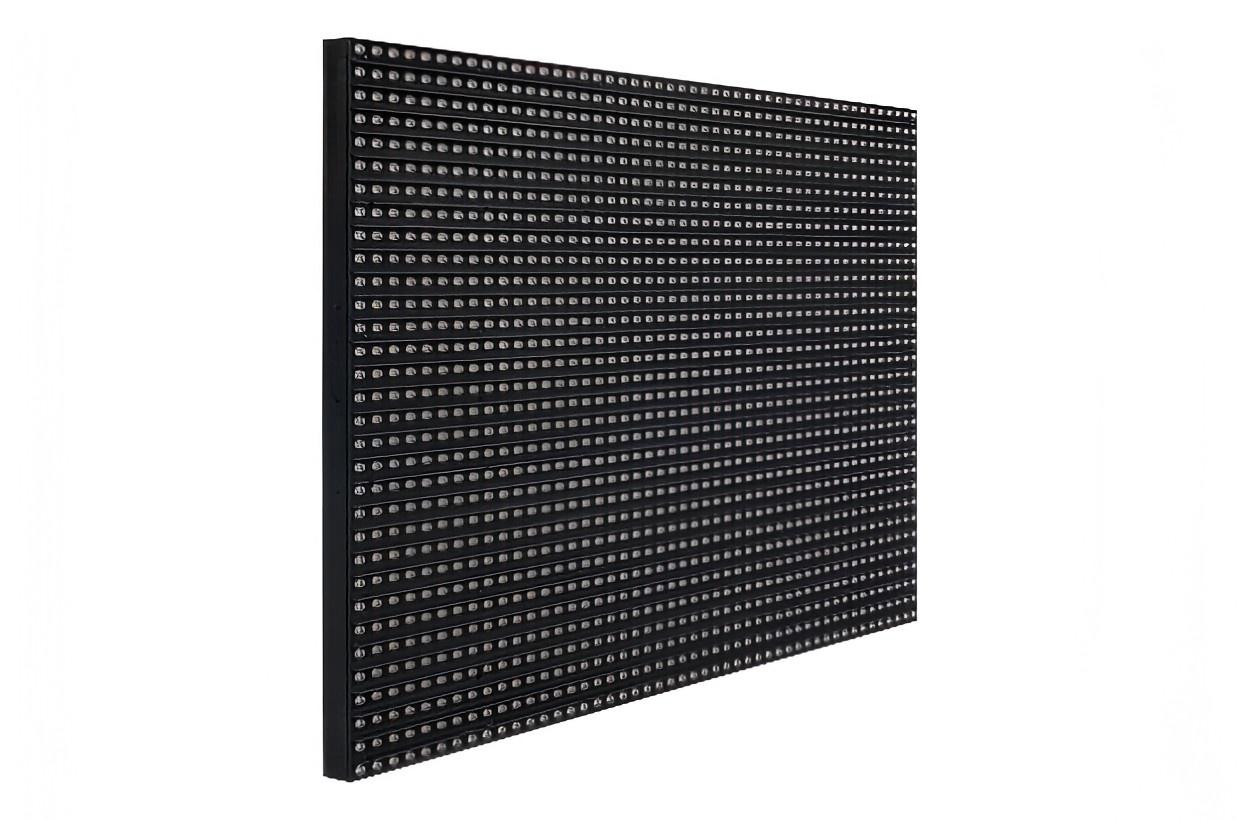

| Module Dimensions | 480×320×30mm |

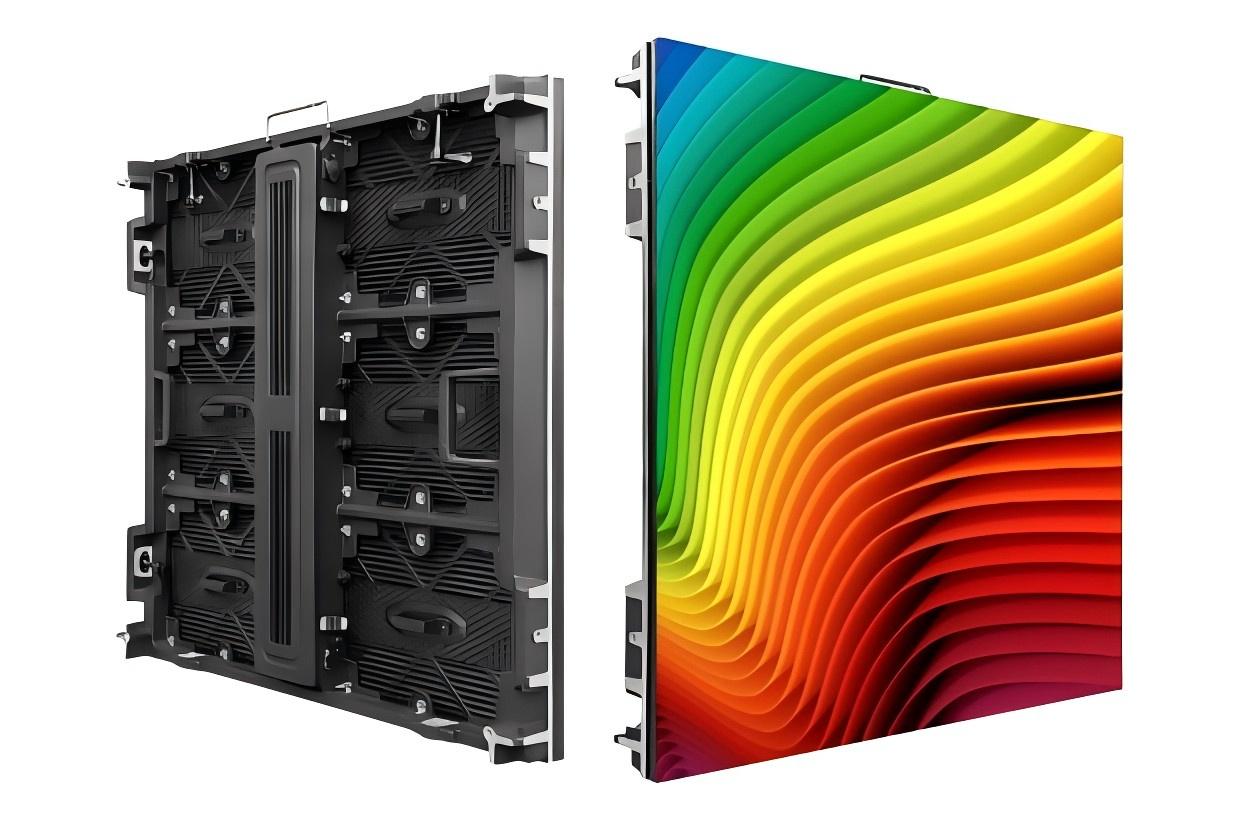

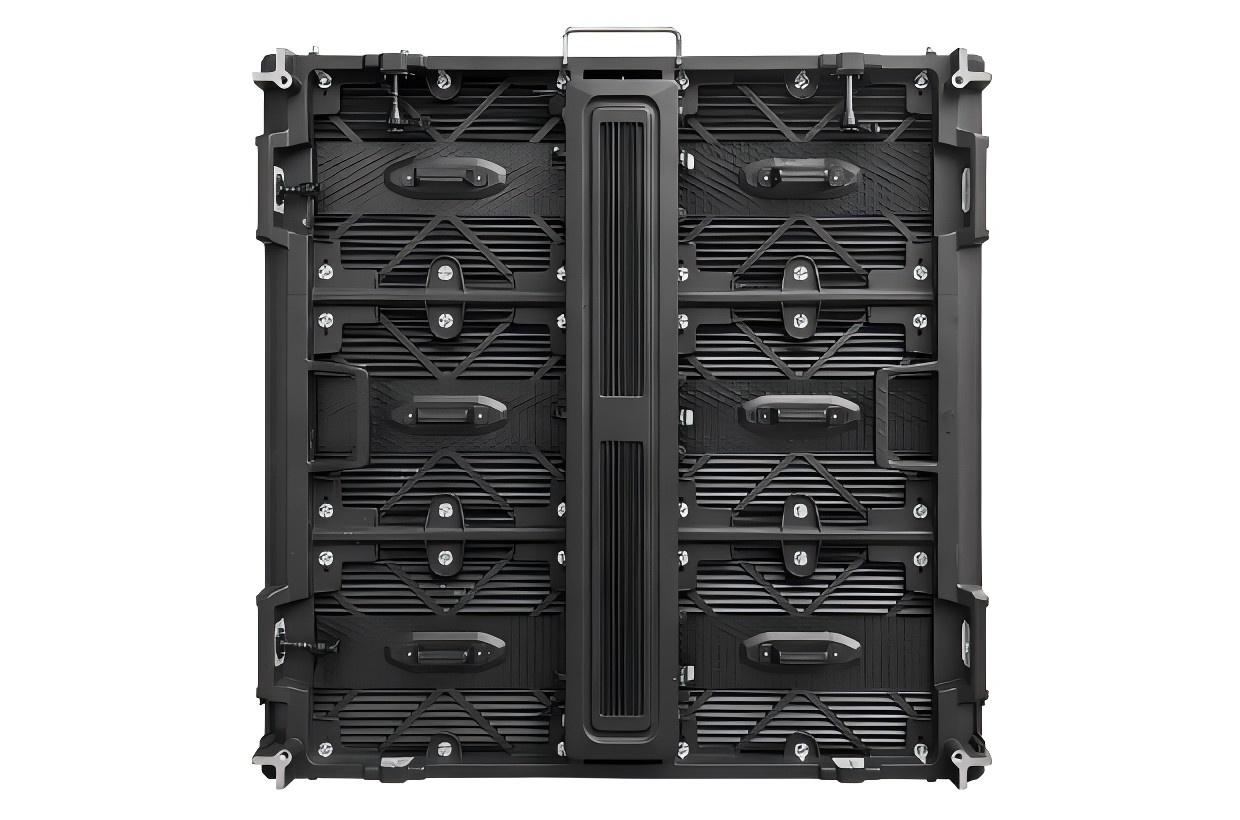

| Cabinet Dimensions | 960×960×110mm |
| Module weight | 2.9kg |
| Cabinet weight | 30kg |
| Color Grayscale | 14bit |
| Gray Scale per Color | ≥16384 |
| Refresh Rate | ≥3840Hz |
| Driving Type | 1/4 scan |
| Signal Transmission Distance | CAT5 cable:<100 m; Single mode fiber:<10 km |
| Brightness(nits) | 8000 |
| Horizontal /Vertical Viewing Angle | 100°/100° |
| Ac Input Voltage | AC:100-240V |
| Ac Input Power Maximum(W/m²) | 380 |
| Ac Input Power Average(W/m²) | 125 |
| Working Temperature | -40℃ - 50℃ |
| IP Rating | IP65/IP54 |
| Lifetime Typical Value | 100000 |
