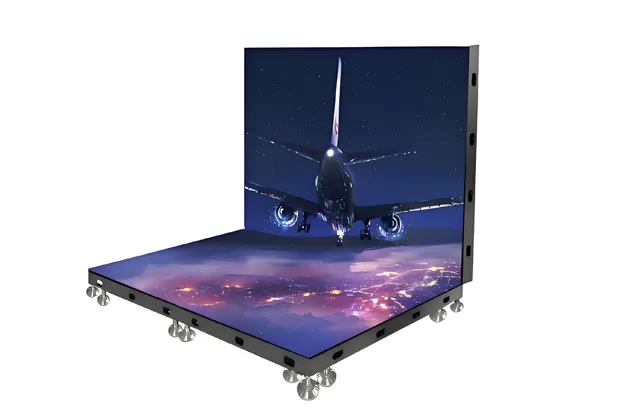

Outdoor Floor LED Screen

Contact Us Pdf Download
OFloor (P2.5, P2.6, P2.9, P3.9, P4.8, P5.2, P6.25) (500×500mm) (500×1000mm)
Specifications

OFloor (P2.5, P2.6, P2.9, P3.9, P4.8, P5.2, P6.25) (500×500mm) (500×1000mm) Specifications

ItemP2.5P2.6P2.9P3.9P4.8P5.2P6.25
Pixel Pitch2.5 2.6 2.976 3.91 4.81 5.2 6.25
LED TypeSMD1415SMD1415SMD1415SMD1921SMD1921SMD1921SMD1921
Module Resolution100dots x100dots96dots x96dots84dots x84dots64dots x64dots52dots x52dots48dots x48dots40dots x40dots
Driving Mode1/25scan1/32scan1/21scan1/16scan1/13scan1/12scan1/10scan
Module Pixels10000dots9216dots7056dots4096dots2704dots2304dots1600dots
ModuleSize250mmx250mm250mm x250mm250mmx250mm250mmx250mm250mm x250mm250mm x250mm250mmx250mm
Cabinet Size500mm x500mm500mm x500mm500mmx1000mm500mmx1000mm500mm x1000mm500mm x1000mm500mm x1000mm
Cabinet Resolution200dots x200dots192dots x192dots168dots x336dots128dots x256dots104dots x208dots96dots x192dots80dots x160dots
Pixel Density  160,000dots/m²  147,456dots/m²  112,896dots/m²  65,536dots/m²  43,264dots/m²  36,864dots/m²  25,600dots/m²
Minimum Viewing Distance  ≥2.5m  ≥2.6m  ≥2.9m  ≥3.9  ≥4.8  ≥5.2  ≥6.25
Brightness1500nits-3000nits1500nits-3000nits1500nits-3000nits1500nits-3000nits1500nits-3000nits1500nits-3000nits1500nits-3000nits
IP GradeIP54/IP45IP54/IP45IP54/IP45IP54/IP45IP54/IP45IP54/IP45IP54/IP45
Refresh rate1920-3840Hz1920~3840Hz1920~3840Hz1920~3840Hz1920~3840Hz1920~3840Hz1920~3840Hz
Gray Scale14bit14bit14bit16bit16bit16bit16bit
Viewing Angle110/110°(H/V)110/110°(H/V)110/110°(H/V)110/110°(H/V)110/110°(H/V)110/110°(H/V)110/110°(H/V)
Maximum Power Consumption200W/Panel200W/Panel400W/Panel400W/Panel400W/Panel400W/Panel400W/Panel
Average Power Consumption100W/Panel100W/Panel200W/Panel200W/Panel200W/Panel200W/Panel200W/Panel
Input Voltage100~240V100~240V100~240V100~240V100~240V100~240V100~240V

AC 50-60HzAC 50-60HzAC 50-60HzAC 50-60HzAC 50-60HzAC 50-60HzAC 50-60Hz
Operating Temperature-10℃~+60℃-10℃~+60℃-10℃~+60℃-10℃~+60℃-10℃~+60℃-10℃~+60℃-10℃~+60℃
Operating Humidity10~90%RH10~90%RH10~90%RH10~90%RH10~90%RH10~90%RH10~90%RH
Cabinet MaterialIronIronIronronIronIronIron
Cabinet Weight11.5kg11.5kg11.5kg25kg25kg25kg25kg
Operating SystemWindowWindowsWindowsWindowsWindowsWindowsWindows

s(win7,win8,etc)(win7,win8,etc)(win7,win8,etc)(win7,win8,etc)(win7,win8,etc)(win7,win8,etc)(win7,win8,etc)
Signal Source CompatibilityDVI,HDMIDVL HDMIDVL HDMIDVI HDMIDVL HDMIDVL HDMIDVL,HDMI
