(Indoor) The All-purpose Exhibition & Multifunctional LED Panel
| Specifications | ||||
| LEDSHELL | LS 3.875 | LS 2.58 | LS 1.93 | LS 1.55 |
| Pixel Pitch | 3.875mm | 2.58mm | 1.9375mm | 1.55mm |
| Max Brightness Calibrated | 1500nits | 1500nits | 1500nits | 1500nits |
| Panel Dimension | 496mmx496mmx55mm/62mm | |||
| Panel Resolution(HxV) | 128x128 | 192x192 | 256x256 | 320x320 |
| Panel Weight | 8.2kg | 8.2kg | 8.2kg | 8.2kg |
| Power Consumption Max/Average | 180W/90W | 160W/80W | 160W/80W | 160W/80W |
| BTU Max /Average | 615/280 | 545/250 | 545/250 | 545/250 |
| Transparency | Solid | Solid | Solid | Solid |
| Serviceability | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Curving (Concave &Convex) | Concave 5°~Convex 5° | Concave 5°~Convex 5° | Concave 5°~Convex 5° | Concave 5°~Convex 5° |
| Max.Hanging(panels) | 20 | 20 | 20 | 20 |
| Max.Stacking(panels) | 12 | 12 | 12 | 12 |
| LED Configuration | SMD1010 Black | SMD1010 Black | SMD1010 Black | SMD1010 Black |
| Viewing Angle Horizontal | 140° | 140° | 140° | 140° |
| Viewing Angle Vertical | 140° | 140° | 140° | 140° |
| Scan Ratio | 1/16 scan | 1/16 scan | 1/16 scan | 1/16 scan |
| Refresh Rate | 7680Hz | 7680Hz | 7680Hz | 7680Hz |
| Gray Scale | 15bit | 15bit | 15bit | 15bit |
| Frame Material | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy |
| Processing Platform | NOVA/Brompton | NOVA/Brompton | NOVA/Brompton | NOVA/Brompton |
| IP Rating | Indoor | Indoor | Indoor | Indoor |
Front maintenance and Rear maintenance
SUMMARY:
Super light weight, Magnesium frame, 8.2kg/pc;
Decrease cost of production;
1 mold with many variations;
Easier installation;
Stronger frame design;
Cabinet can be easily change to 90degree corner.
90degree cut cabinet can easily recover to normal frame with add on parts:
Less components;
Better performance on flatness.
Corner fill function;
Safety lock indication;
38.5mm,55mm,62mm thickness adjustment;
SEG slot separation;
Back cover function;
Aluvision 55mm M6 bolt compatible;
Bematrix 62mm M8 bolt compatible.

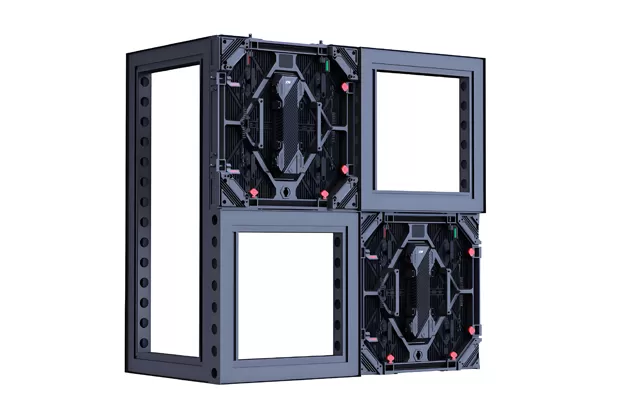

LEDSHEEL is compatile with Aluvision and Bematrix 496 frame.

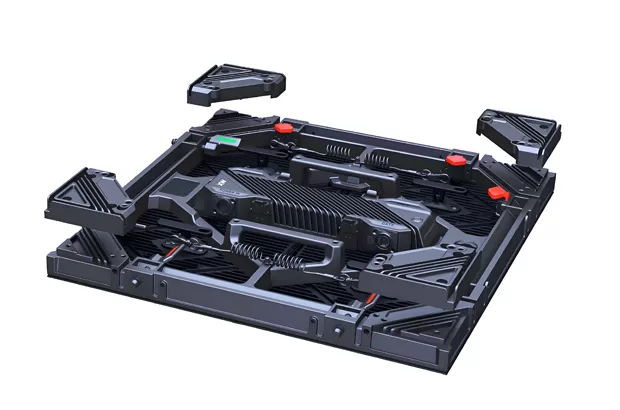

Removable corner block：
Without corner block, super thin cabinet 38.5mm;
+corner block，cabinet thickness 55mm，match Aluvision 55mm 496 frame；
+7mm spacer + corner block，cabinet thickness 62mm,match Bematrix 62mm 496 frame.
Screen tree:
