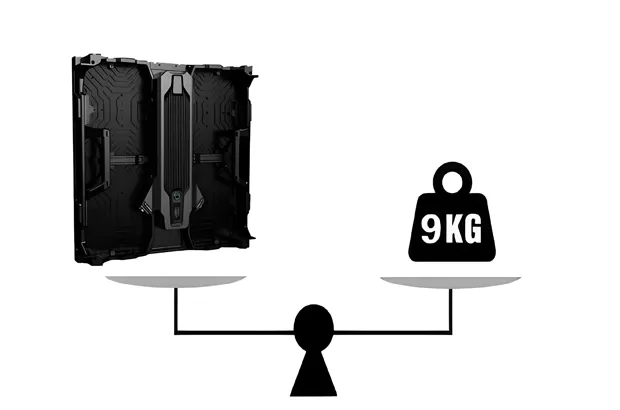

As the cabinet uses die-cast aluminum material, the weight of the panel is only 9 kgs, and it has great heat dissipation.
| Indoor Parameters | |||
| Item | P2.6 | P2.9 | P3.91 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm |
| LED Type | SMD1515 | SMD2020 | SMD2020 |
| Module Resolution | 96dots x 96dots | 84dots x 84dots | 64dots x 64dots |
| Driving Mode | 1/24scan | 1/21scan | 1/16scan |
| Module Pixels | 9,216dots | 7,056dots | 4,096dots |
| Module Size | 250 x 250 | 250 x 250 | 250 x 250 |
| Cabinet Size | 500 x 500/1000 | 500 x 500/1000 | 500 x 500/1000 |
| Cabinet Resolution | 192 x 192/384dots | 168 x 168/336dots | 128 x 128/256dots |
| Pixel Density | 147456 | 112896 | 65536 |
| Minimum Viewing Distance | ≥2.6m | ≥2.9m | ≥3.9m |
| Brightness | 600~800nits | 600~800nits | ≥800nits |
| IP Grade | IP43 | IP43 | IP43 |
| Refresh Rate | 1920Hz~7,680Hz | 1920Hz~7,680Hz | 1920Hz~7,680Hz |
| Gray Scale | 12~16bits | 12~16bits | 12~16bits |
| Viewing Angle | 160°/160° | 160°/160° | 160°/160° |
| Max Power Consumption | 520(W/m²) | 520(W/m²) | 520(W/m²) |
| Avg Power Consumption | 175(W/m²) | 175(W/m²) | 175(W/m²) |
| Input Voltage | AC110V~AC220V 50Hz/60Hz | AC110V~AC220V 50Hz/60Hz | AC110V~AC220V 50Hz/60Hz |
| Operating Temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
| Operating Humidity | 10%~90% | 10%~90% | 10%~90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel |
| Operating System | Windows (Win7,Win8,etc.) | Windows (Win7,Win10,etc.) | Windows (Win7,Win10,etc.) |
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2, SDI,HDMI2.0,etc | DVI,HDMI1.3,DP1.2, SDI,HDMI2.0,etc | DVI,HDMI1.3,DP1.2, SDI,HDMI2.0,etc |
| Outdoor Parameters | |||
| Item | P2.9 | P3.9 | P4.8 |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| LED Type | SMD1415/ SMD1921 | SMD1921 | SMD1921 |
| Module Resolution | 84dots x 84dots | 64dots x 64dots | 52dots x 52dots |
| Driving Mode | 1/21scan | 1/16scan | 1/13scan |
| Module Pixels | 7,056dots | 4,096dots | 2,704dots |
| Module Size | 250 x 250 | 250 x 250 | 250 x 250 |
| Cabinet Size | 500 x 500/1000 | 500 x 500/1000 | 500 x 500/1000 |
| Cabinet Resolution | 168 x 168/336dots | 128 x 128/256dots | 104 x 104/208dots |
| Pixel Density | 112896 | 65536 | 43264 |
| Minimum Viewing Distance | ≥2.9m | ≥3.9m | ≥4.8m |
| Brightness | ≥4500nits | ≥4500nits | ≥4500nits |
| IP Grade | IP65 | IP65 | IP65 |
| Refresh Rate | 1920Hz~7,680Hz | 1920Hz~7,680Hz | 1920Hz~7,680Hz |
| Gray Scale | 12~16bits | 12~16bits | 12~16bits |
| Viewing Angle | 160°/160° | 160°/160° | 160°/160° |
| Max Power Consumption | 800(W/m²) | 800(W/m²) | 800(W/m²) |
| Avg Power Consumption | 240(W/m²) | 240(W/m²) | 240(W/m²) |
| Input Voltage | AC110V~AC220V 50Hz/60Hz | AC110V~AC220V 50Hz/60Hz | AC110V~AC220V 50Hz/60Hz |
| Operating Temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
| Operating Humidity | 10%~90% | 10%~90% | 10%~90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel |
| Operating System | Windows (Win7,Win10,etc.) | Windows (Win7,Win10,etc.) | Windows (Win7,Win10,etc.) |
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2, SDI,HDMI2.0,etc | DVI,HDMI1.3,DP1.2, SDI,HDMI2.0,etc | DVI,HDMI1.3,DP1.2, SDI,HDMI2.0,etc |
