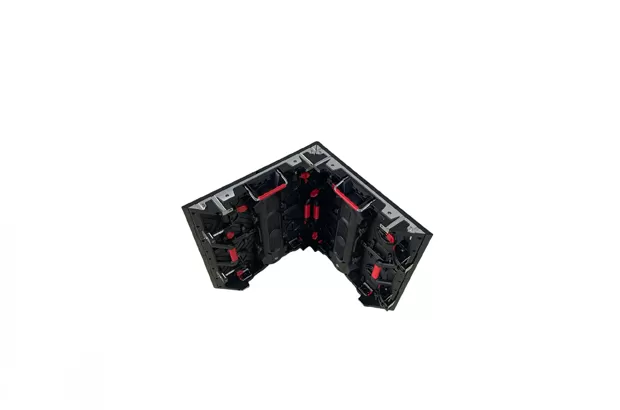

With 45° cutting angle design, the L-N Pro LED display cabinets can be assembled at seamless 90 angles, so that it can meet a variety of installation requirements.
| Parameters (Indoor) | ||||
| Item | P1.9 | P2.6 | P2.9 | P3.9 |
| Pixel Pitch | 1.95mm | 2.604mm | 2.97mm | 3.91mm |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Module Resolution | 128dots×128dots | 96dots×96dots | 84dcts×84dots | 64dots×64dots |
| Driving Mode | 1/32scan | 1/32scan | 1/28scan | 1/16scan |
| Module Pixels | 16,384dots | 9,216dots | 7,058dots | 4,098dots |
| Module Size | 250mm×250mm | 250mm×250mm | 250mm×250mm | 250mm×250mm |
| Cabinet Size | 500 × 500mm | 500 × 500mm | 500 × 500mm | 500 × 500mm |
| Cabinet Resolution | 256 × 256dots | 192 × 192dots | 168 × 168dots | 128 × 128dots |
| Pixel Density | 282,144dots/㎡ | 147,456dots/㎡ | 112,898dots/㎡ | 65,538dots/㎡ |
| Minimum Viewing Distance | ≥1.9m | ≥2.6m | ≥2.9m | ≥3.9m |
| Brightness | 600~800nits(Black) | 600~800nits(Black) | 600~800nits(Black) | 600~800nits(Black) |
| IP Grade | IP43 | IP43 | IP43 | IP43 |
| Refresh Rate | 1,920Hz~7,680Hz | 1,920Hz~7,680Hz | 1,920Hz~7,680Hz | 1,920Hz~7,680Hz |
| Gray Scale | 13bits~24bits | 13bits~24bits | 14bits~24bits | 14bits~24bits |
| Viewing Angle | H:160° /V:160° | H:160° /V:160° | H:160° /V:160° | H:160° /V:160° |
| Max Power Consumption | 520W/㎡ | 520W/㎡ | 520W/㎡ | 520W/㎡ |
| Avg Power Consumption | 175W/㎡ | 175W/㎡ | 175W/㎡ | 175W/㎡ |
| Input Voltage | AC110V~AC220V @50Hz/60Hz | AC110V~AC220V @50Hz/60Hz | AC110V~AC220V @50Hz/60Hz | AC110V~AC220V @50Hz/60Hz |
| Operating Temperature | 20℃~85℃ | 20℃~85℃ | 20℃~50℃ | 20℃~50℃ |
| Operating Humidity | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casing Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel |
| Operating System | Windows (Win7,Win8,etc.) | Windows (Win7,Win8,etc.) | Windows (Win7,Win10,etc.) | Windows (Win7,Win10,etc.) |
| Signal Source Compatibility | DVI,HDM1.3,DP1.2,SDI,HDMI20,etc | DVI,HDM1.3,DP1.2,SDI,HDMI20,etc | DVI,HDM1.3,DP1.2,SDI,HDMI20,etc | DVI,HDM1.3,DP1.2,SDI,HDMI20,etc |
| Parameters (Outdoor) | |||
| Item | P2.6 | P2.9 | P3.9 |
| Pixel Pitch | 2.604mm | 2.978mm | 3.906mm |
| LED Type | SMD1415 | SMD1415 | SMD1921 |
| Module Resolution | 96dots×96dots | 84dcts×84dots | 64dots×64dots |
| Driving Mode | 1/32scan | 1/28scan | 1/16scan |
| Module Pixels | 9,216dots | 7,058dots | 4,098dots |
| Module Size | 250mm×250mm | 250mm×250mm | 250mm×250mm |
| Cabinet Size | 500 × 500mm | 500 × 500mm | 500 × 500mm |
| Cabinet Resolution | 192 × 192dots | 168 × 168dots | 128 × 128dots |
| Pixel Density | 147,456dots/㎡ | 112,898dots/㎡ | 65,538dots/㎡ |
| Minimum Viewing Distance | ≥2.6m | ≥2.9m | ≥3.9m |
| Brightness | ≥4,000nits | ≥4,000nits | ≥4,000nits |
| IP Grade | IP65 | IP65 | IP65 |
| Refresh Rate | 1,920Hz~7,680Hz | 1,920Hz~7,680Hz | 1,920Hz~7,680Hz |
| Gray Scale | 13bits~24bits | 14bits~24bits | 14bits~24bits |
| Viewing Angle | H:160° /V:160° | H:160° /V:160° | H:160° /V:160° |
| Max Power Consumption | 760W/㎡ | 800W/㎡ | 800W/㎡ |
| Avg Power Consumption | 230W/㎡ | 250W/㎡ | 250W/㎡ |
| Input Voltage | AC110V~AC220V @50Hz/60Hz | AC110V~AC220V @50Hz/60Hz | AC110V~AC220V @50Hz/60Hz |
| Operating Temperature | 20℃~85℃ | 20℃~50℃ | 20℃~50℃ |
| Operating Humidity | 10%~~90% | 10%~90% | 10%~90% |
| Cabinet Material | Die-casting Aluminum | Die-casing Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel |
| Operating System | Windows (Win7,Win8,etc.) | Windows (Win7,Win10,etc.) | Windows (Win7,Win10,etc.) |
| Signal Source Compatibility | DVI,HDM1.3,DP1.2,SDI,HDMI20,etc | DVI,HDM1.3,DP1.2,SDI,HDMI20,etc | DVI,HDM1.3,DP1.2,SDI,HDMI20,etc |
