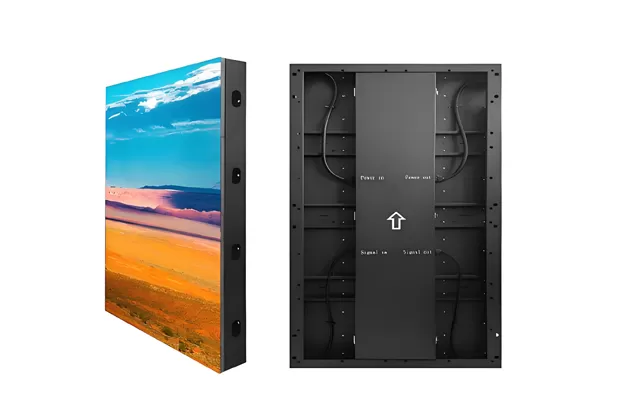

IFloor Interactive (P2.5, P2.6, P2.9, P3.9, P4.8, P5.2, P6.25)

IFloor Interactive (P2.5, P2.6, P2.9, P3.9, P4.8, P5.2, P6.25) (500×500mm) (500×1000mm)

Name: IFloor Interactive (P2.5, P2.6, P2.9, P3.9, P4.8, P5.2, P6.25)
Brand: Shenzhen KMTEKLED Photoelectricity Co.,LTD.
Availability: InStock

Indoor&Semi-Outdoor Floor LED Screen-P2.5,P2.6,P2.9,P3.9,P4.8,P5.2,P6.25

Steel cabinet

Specifications

Features

IFloor Interactive(P2.5, P2.6, P2.9, P3.9, P4.8, P5.2, P6.25) Specifications

Item	P2.5	P2.6	P2.9	P3.9	P4.8	P5.2	P6.25
Pixel Pitch	2.5	2.6	2.976	3.91	4.81	5.2	6.25
LED Type	SMD1415	SMD1415	SMD1415	SMD1921	SMD1921	SMD1921	SMD1921
Module Resolution	100dots x100dots	96dots x96dots	84dots x84dots	64dots x64dots	52dots x52dots	48dots x48dots	40dots x40dots
Driving Mode	1/21 scan	1/21 scan	1/21 scan	1/16 scan	1/13 scan	1/12 scan	1/10 scan
Module Pixels	10000dots	9216dots	7056dots	4096dots	2704dots	2304dots	1600dots
ModuleSize	250mmx250mm	250mm x250mm	250mmx250mm	250mmx250mm	250mm x250mm	250mm x250mm	250mmx250mm
Cabinet Size	500mm x500mm	500mm x500mm	500mmx1000mm	500mmx1000mm	500mm x1000mm	500mm x1000mm	500mm x1000mm
Cabinet Resolution	200dots x200dots	192dots x192dots	168dots x336dots	128dots x256dots	104dots x208dots	96dots x192dots	80dots x160dots
Pixel Density	160,000dots/m²	147,456dots/m²	112,896dots/m²	65,536dots/m²	43,264dots/m²	36,864dots/m²	25,600dots/m²
Minimum Viewing Distance	≥2.5m	≥2.6m	≥2.9m	≥3.9	≥4.8	≥5.2	≥6.25
Brightness	900nits-1500nits	900nits~1500nits	900nits~1500nits	900nits~1800nits	900nits~3000nits	900nits~3000nits	900nits~3000nits
IP Grade	IP54/IP45	IP54/IP45	IP54/IP45	IP54/IP45	IP54/IP45	IP54/IP45	IP54/IP45
Refresh rate	1920-3840Hz	1920~3840Hz	1920~3840Hz	1920~3840Hz	1920~3840Hz	1920~3840Hz	1920~3840Hz
Gray Scale	14bit	14bit	14bit	16bit	16bit	16bit	16bit
Viewing Angle	110/110°(H/V)	110/110°(H/V)	110/110°(H/V)	110/110°(H/V)	110/110°(H/V)	110/110°(H/V)	110/110°(H/V)
Maximum Power Consumption	200W/Panel	200W/Panel	400W/Panel	400W/Panel	400W/Panel	400W/Panel	400W/Panel
Average Power Consumption	100W/Panel	100W/Panel	200W/Panel	200W/Panel	200W/Panel	200W/Panel	200W/Panel
Input Voltage	100~240V	100~240V	100~240V	100~240V	100~240V	100~240V	100~240V
Input Voltage	AC 50-60Hz	AC 50-60Hz	AC 50-60Hz	AC 50-60Hz	AC 50-60Hz	AC 50-60Hz	AC 50-60Hz
Operating Temperature	-10℃~+60℃	-10℃~+60℃	-10℃~+60℃	-10℃~+60℃	-10℃~+60℃	-10℃~+60℃	-10℃~+60℃
Operating Humidity	10~90%RH	10~90%RH	10~90%RH	10~90%RH	10~90%RH	10~90%RH	10~90%RH
Cabinet Material	Iron	Iron	Iron	ron	Iron	Iron	Iron
Cabinet Weight	11.5kg	11.5kg	11.5kg	25kg	25kg	25kg	25kg
Operating System	Window	Windows	Windows	Windows	Windows	Windows	Windows
Operating System	s(win7,win8,etc)	(win7,win8,etc)	(win7,win8,etc)	(win7,win8,etc)	(win7,win8,etc)	(win7,win8,etc)	(win7,win8,etc)
Signal Source Compatibility	DVI,HDMI	DVL HDMI	DVL HDMI	DVI HDMI	DVL HDMI	DVL HDMI	DVL,HDMI

IFloor Interactive(P2.5, P2.6, P2.9, P3.9, P4.8, P5.2, P6.25) Detailed Information and Features

Stable mask

Interactivity

IP54

High load-bearing capacity

Fast and Easy Maintenance

1500nits-1800nits

1920Hz ~ 3840Hz

14bits

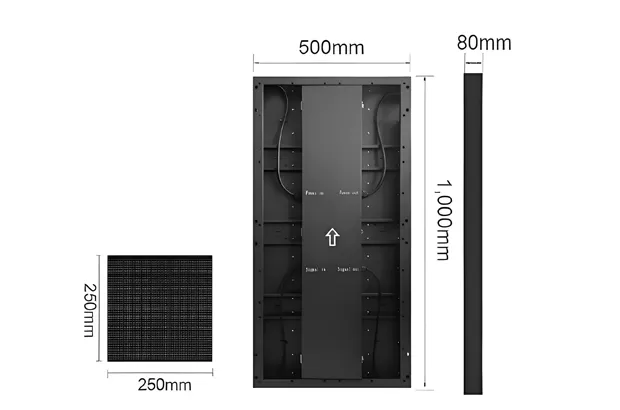

Slim and lightweight design

The iron cabinet only weights 23kgs which is lighter than conventional cabinets in the market. Lighter cabinets provide more convenience for installation and maintenance. 0.5m by 1m panel size can be easily assembled into big screen of different dimensions.

0.5m(w) x 1m(h)
80mm thickness
23kgs weight

The pixel pitch P2.5, P2.6, P2.9, P3.9, P4.8,P5.2, and P6.25 are available.

High Load-bearing Capacity

Each square meter can bear 2200kg
It has excellent load-bearing performance thanks to the following points:

The cabinet material is strong, and the board is 1.5
Multilayer subdivision PC mask is used
One cabinet (is equipped) with 4 adjustable feets which support adjustable height: 130mm-170mm

Special reinforcement structure and wire buckle design greatly enhance the stability of the cabinet.

Strong PC Mask Design

Using private mode anti-scratch mask
The mask convex design enhances the wear resistance and scratch resistance of the module surface
IP54. Protective rubber ring enhances waterproof performance
Enough distance reserved between the LEDs and the mask so the LEDs won't be influenced when people standing on
Multilayer subdivision PC mask is stronger to realize high protection level

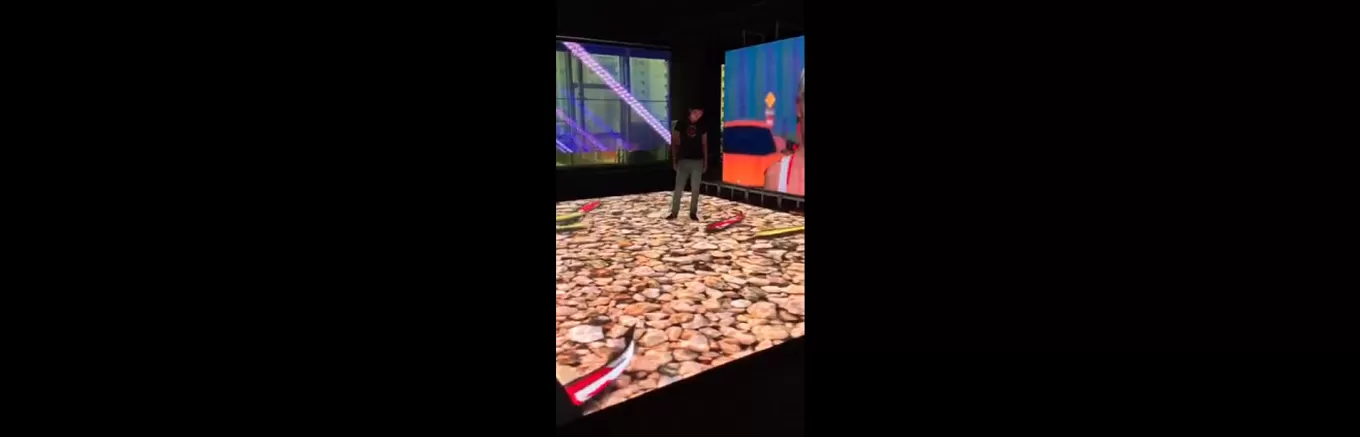

Interactive Induction

One module has 8 built-in chips to achieve the fast response time: 0.016s.
Adjustable sensitivity. The reaction speed and time can be changed on the software according to different needs.
The response speed of the built-in chip is much faster than that of the radar sensor.

Comparison of radar sensing and build-in chip sensing

Radar sensing sensitivity is lower than chip sensing. Radar-sensed signals are vulnerable to interference, if the radar device is blocked, corresponding interaction will disappear. The gravity sensing chip senses according to the force of people stepping on the ground,it can detect 1,000 people at the same time without any delay. There will be no failure point.

Cabinet Front Maintenance

Magnetic suction cabinet design, supporting arbitrary removal of the cabinet without affecting the normal operation of other parts. Also it's more convinent for replacing the modules.

Good heat dissipation

The back cover of cabinet and power box are made of aluminum, which makes the cabinet more durable and highly stable.

Meanwhile, heat dissipation of aluminum is much better than other materials in the market. As the eletronic components can be cooled down quickly, their lifespan will be longer.

Patch design to fix cables

Each cabinet has patches for fixing cables.

The vibration generated when stepping on the screen will not cause the wire to loosen.

And the inner layout will be neater.

High brightness up to 1500nits

Unlike the regular indoor screens only reach 800nits brightness, our product can reach 1500nits since we use outdoor LEDs. And it has better moisture resistance.

Multiple installation modes
