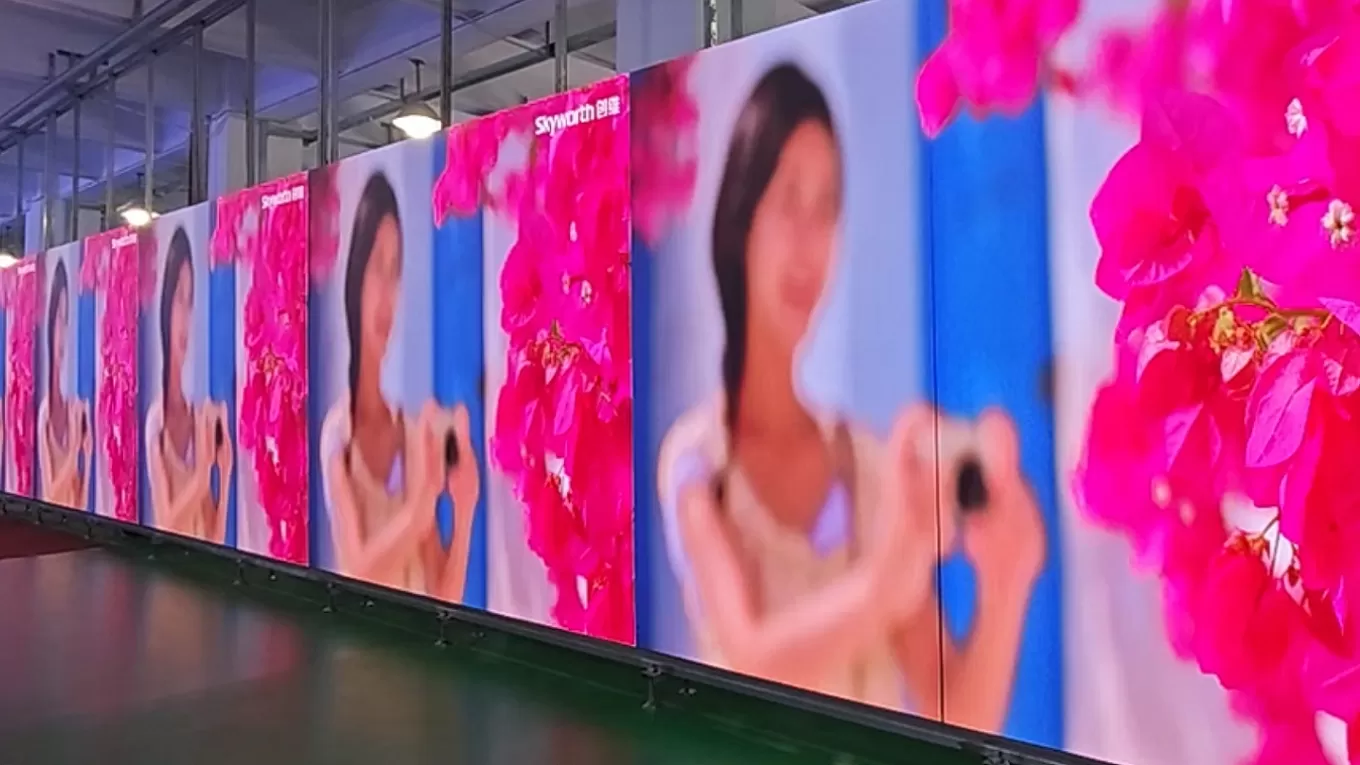

Applicability model: P1.25, P1.56, P1.66
When customers require special sizes, we recommend this cabinet size 400x450mm cabinet, module size: 200x100mm.
Hot Swapping (Nova A5S receiver).
| Item | V1.25 | V1.56 | V1.66 |
| Pixel pitch | 1.25mm | 1.56mm | 1.66mm |
| Pixel density (dots/m²) | 640,000 | 409,000 | 284,444 |
| Module size | 200x150mm | 200x150mm | 200x150mm |
| LED package | SMD1010 | SMD1212 | SMD1212 |
| Module resolution(pixels) | 160x120 | 128x96 | 108x90 |
| Module arrangement per cabinet | 2x3 | ||
| Cabinet dimension (WxHxD) | 400x450x60mm | ||
| Cabinet weight (including module) | 5kg | ||
| Cabinet resolution(pixels) | 320x360 | 256x288 | 240x270 |
| Maintenance | Full front service | ||
| Backup system | Support | ||
| White balance brightness | 500-800cd/m² | ||
| Color temperature | 6,500K (adjustable) | ||
| Refresh rate | 3,840Hz | ||
| Viewing angle | 160°(V/H) | ||
| Brightness uniformity | ≥99% | ||
| Gray scale level | 16bits | ||
| Contrast ratio | 5,000:1 | ||
| Scanning mode | 1/60 scan | 1/48 scan | 1/48 scan |
| Working voltage (input) | 110-240V, 50-60Hz | ||
| Max./Avg.Power consumption | 500W/m²/165-260W/m² | ||
| Storage temperature&humidity (RH) | -20℃-50℃ & 35-75% | ||
| Working temperature&humidity (RH) | -10℃-50°C & 35-75% | ||
| IP rating | IP45 | ||
| Screen temperature rise | ≤5℃ | ||
| Installation | On-wall/recessed/pedestal/suspended/stacked install | ||
| Signal output | HDMI/DVI/DP | ||
| Certification | RoHS/FCC/CE | ||
| LED Display Type | Small pixel pitch LED screen | ||
