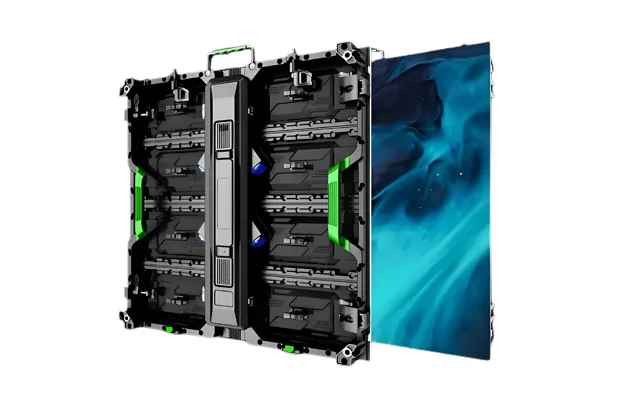

FI2 D & RI2 D Series
P1.25/P1.53/P1.86/P2/P2.5 LED display
| Indoor Fixed & Rental Installation Solution | ||||||
| FI2 D & RI2 D Series | ||||||
| Pixel Pitch | P1.25 | P1.53 | P1.86 | P2 | P2.5 | |
| LED Type | SMD1010 | SMD1212 | SMD1515 | SMD2020 | SMD2020 | |
| Physical Density (dots/m²) | 640000 | 428613 | 288906 | 250000 | 160000 | |
| Module Resolution | 256×128 | 209×105 | 172×86 | 160×80 | 128×64 | |
| Module Size(WxH) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | |
| Cabinet Size(mm) | 640×640×66.5 | 640×640×66.5 | 640×640×66.5 | 640×640×66.5 | 640×640×66.5 | |
| Cabinet Resolution | 512×512 | 418×418 | 344×344 | 320×320 | 256×256 | |
| Cabinet Weight(kg) | 13 | 13 | 13 | 13 | 13 | |
| Maintenance Mode | Front&Back maintenance | Front&Back maintenance | Front&Back maintenance | Front&Back maintenance | Front&Back maintenance | |
| Cabinet Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | |
| Brightness | 600-800cd | 600-800cd | 600-800cd | 600-800cd | 600-800cd | |
| Viewing angle(H/V) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | |
| The best viewing distance | ≥1.25m | ≥1.53m | ≥1.86m | ≥2m | ≥2.5m | |
| Drive Mode | Static,1/60 Scan | Static,1/52 Scan | Static,1/43 Scan | Static,1/40 Scan | Static,1/32 Scan | |
| Grey Level | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | |
| Refresh Rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | |
| Max Power Consumption(W/m²) | 900 | 900 | 900 | 900 | 900 | |
| Average Power Consumption(W/m²) | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | |
| IP Grade | IP43 | IP43 | IP43 | IP43 | IP43 | |
| Input Power | AC90-264V,47-63 Hz | |||||
| Working Temperature/Humidity (℃/RH) | -20-60℃/10%-90% | |||||
| Storage Temperature/Humidity (℃/RH) | -30-70℃/10%-90% | |||||
| LED Display Type | Small pixel pitch LED display | |||||
