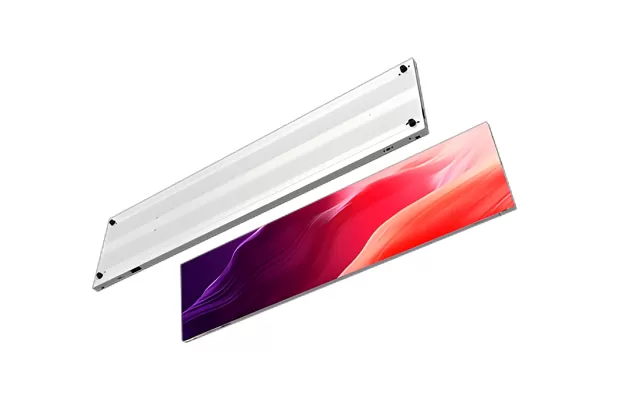

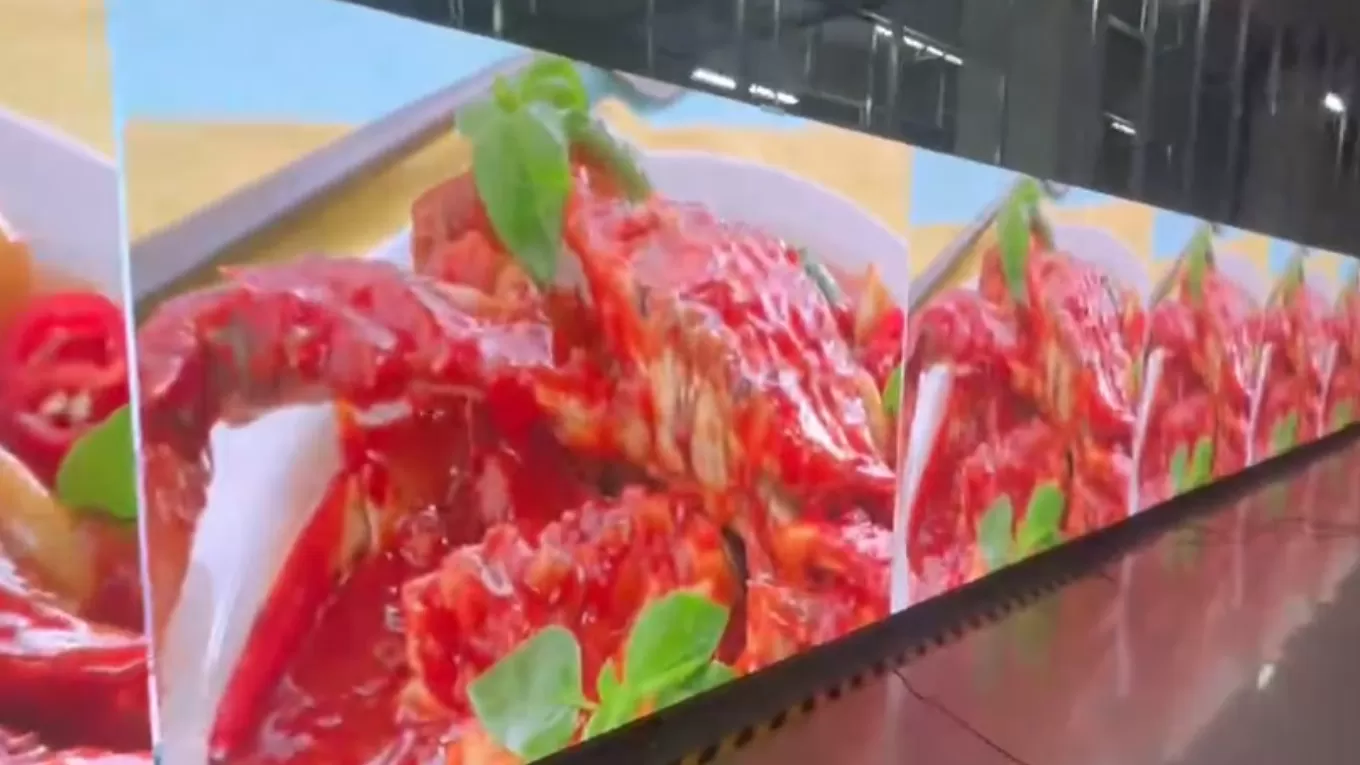

FI3 SK Series Creative Flat Panel Display
| Parameters | |||||
| Item | SK1.56 | SK1.953 | SK2.604 | SK2.97 | SK3.91 |
| Pixel Composition(SMD) | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Pixel Pitch(mm) | 1.56 | 1.953 | 2.604 | 2.97 | 3.91 |
| Module Resolution(W×H) | 160×160 | 128×128 | 96×96 | 84×84 | 64×64 |
| Module Size(mm) | 250×250 | ||||
| Module Weight(kg) | 0.5 | ||||
| Module Qty/Cabinet(W×H) | 2×4 / 2×3 / 2×2 | ||||
| Cabinet Resolution(W×H) | 640×160 | 512×128 | 384×96 | 336×84 | 256×64 |
| Cabinet Size(mm) | 1000×250×20 / 750×250×20 / 500×250×20 | ||||
| Cabinet Area(m²) | 0.25 | ||||
| Cabinet Weight(kg/cabinet) | 4.8 / 3.6 / 2.4 | ||||
| Cabinet Material | Aluminium profiles | ||||
| Cabinet Density (dot/m²) | 409600 | 262144 | 147456 | 112896 | 65536 |
| IP Rating | IP20 | ||||
| White Balance Brightness(nits) | ≥600nits | ≥600nits | ≥600nits | ≥600nits | ≥600nits |
| Color Processor(bit) | 14bit | 14bit | 16bit | 16bit | 16bit |
| Color Temperature(K) | 6500-9000 | ||||
| Visual Angle(H/V) | 140°/120° | ||||
| Luminous point centre deviation | <3% | ||||
| Luminance uniformity | ≥97% | ||||
| Chromaticity uniformity | Within ±0.003Cx,Cy | ||||
| Contrast Ratio | ≥5000:1 | ||||
| The Max Power Consumption(W/m²) | 500 | 500 | 500 | 500 | 500 |
| Average Power Consumption(W/m²) | 165 | 165 | 165 | 165 | 165 |
| Input Voltage | AC100~240V | ||||
| Frequency(Hz) | 50&60 | ||||
| IC Driving(scan) | 1/40 scan | 1/32 scan | 1/32 scan | 1/28 scan | 1/16 scan |
| Refreshing Ratio(Hz) | 3840 | ||||
| Maintenance Method | Front | ||||
| Lifespan(hrs) | 100,000 | ||||
| Work Temperature/Humidity | -10℃-50℃/10%RH-98%RH (Non Condensing) | ||||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH(Non Condensing) | ||||
| LED Display Type | Small pixel pitch LED screen | ||||
