High-Performance Aluminum-Based Outdoor LED Display
| Parameters | ||||||
| Model Number | P2.976 | P3.91 | P4.81 | P6.25 | P7.8 | P10.4 |
| Physical Pitch | 2.976mm | 3.91mm | 4.81mm | 6.25mm | 7.8mm | 10.4mm |
| Package Mode | SMD1415/1516 | SMD1921 | SMD1921 | SMD2727/3535 | SMD2727/3535 | SMD2727/3535 |
| Physical Density | 112896dots/㎡ | 65536 dots/㎡ | 43264dots/㎡ | 25600 dots/㎡ | 16384dots/㎡ | 9216 dots/㎡ |
| Module Size | 250*250mm | |||||
| Pixel Resolution | 84*84=7056dots | 64*64=4096dots | 52*52=2704dots | 40*40= 1600dots | 32*32= 1024dots | 24*24=576dots |
| Module Thickness | 17mm | |||||
| Weight | 1.005kg | |||||
| Max Power | 40W | 40W | 40W | 40W | 40W | 40W |
| Scan Mode | 21S | 8S | 13S | 5S | 4S | 2S |

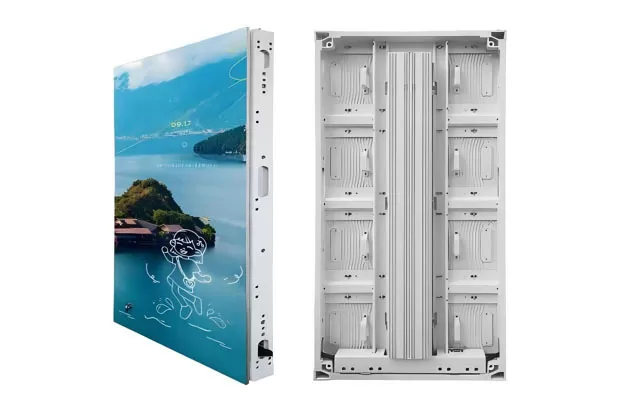

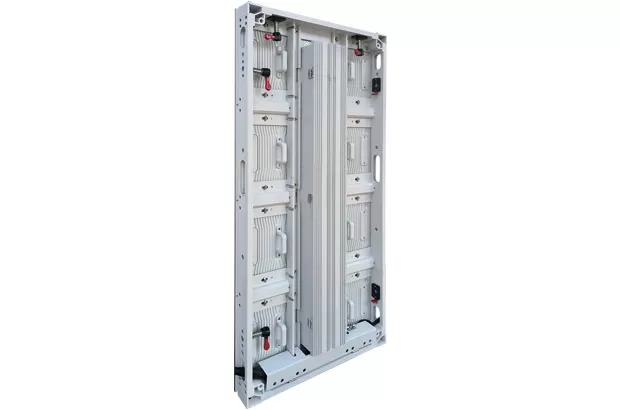

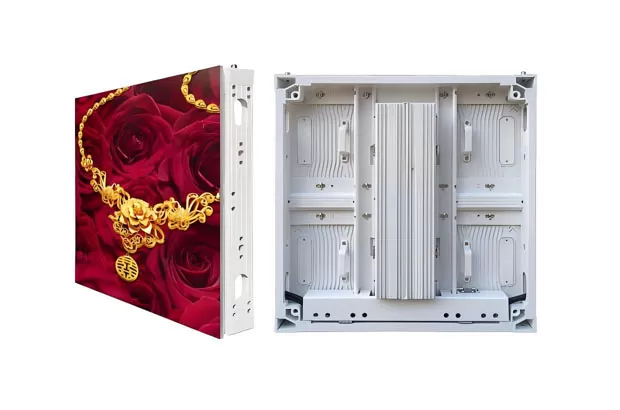

| Match Cabinet | 500*500*70mm/500*750*70mm/500*1000*70mm | |||||
| Cabinet Weight | 9kg/12.5kg/17.7kg | |||||
| Pixel Per Cabinet | 168*168=28224dots | 128*128= 16384dots | 104*104= 10816dots | 80*80=6400dots | 64*64=4096dots | 48*48=2304dots |
| Number Of Cabinet Modules | 4pcs /6pcs /8pcs | |||||
| Recommended Viewing | 3-100m | 4-100m | 5-100m | 6-100m | 8-100m | 10-100m |
| Module Base Shell Material | Aluminum Base Shell | |||||
| Rate Refresh | ≥3840Hz | |||||
| Pixel Configuration | 1R1G1B | |||||
| Brightness Of White Balance | ≥4500cd/㎡ | ≥5000cd/㎡ | ≥4500cd/㎡ | ≥5000cd/㎡ | ≥6000cd/㎡ | ≥6000cd/㎡ |
| Grayscale Level | 16bit | 16bit | 14bit | 14bit | 14bit | 14bit |
| Change frame frequency | 60Hz | |||||
| Number Of Power Supplies In The Cabinet | 1pcs /1pcs /2pcs | |||||
| Power Supply | 5V 40A*1 PCS ，5V 60A*1 PCS ，5V 40A*2 PCS or 5V80A*1PCS | |||||
| Average Power Consumption | 265W/㎡ | |||||
| Max. Power Consumption | 800W/㎡ | |||||
| Protection Level | IP65 | |||||
| Fire resistance rating | 5VB | |||||
| Module Working Voltage | DC 5V | |||||
| Operating | -20 ~ +50℃ | |||||
| Life Time | >1000000h | |||||
| The Rate | <0.0001 | |||||
| MBTF | >5000h | |||||
| Maintenance Mode | Full Front/Rear Maintenance | |||||
| Best Viewing Angle | H:160° ; V:160° | H:160° ; V:160° | H:140° ; V:140° | H:140° ; V:140° | H:120° ; V:120° | H:120° ; V:120° |
| Cabinet Matching Module Model | P2.976/P3.91/P4.81/P6.25/P7.8/P10.4 | |||||
| Input Voltage | 220V；AC±10% | |||||
| Evenness | ≤ 0.5mm | |||||
| Working Voltage | 220V；AC±10% | |||||
| CPU | I5 or above I5 | |||||
| Operation System | WIN98/2000/NT/XP/WIN7/WIN8/WIN9/WIN10/WIN11 | |||||
| Control Method | Synchronization | |||||
| Driving IC | PWM | |||||
