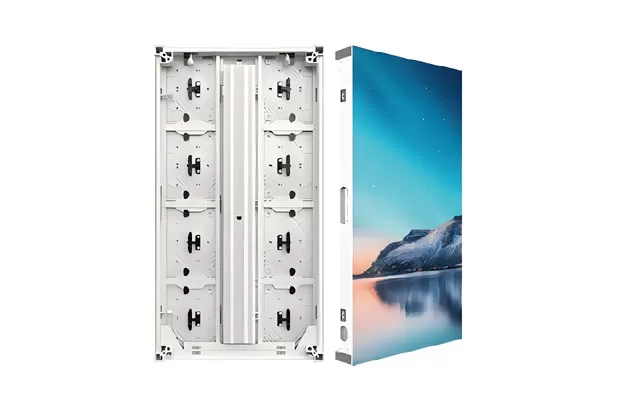

FO4 FS Series Fixed Outdoor HD Small-pitch LED Display
| FS Parameters | |||||
| Item | FS1.95 | FS2.604 | FS2.97 | FS3.91 | FS4.81 |
| Pixel Composition(SMD) | 1415 | 1415 | 1415 | 1415 | 1921 |
| Pixel Pitch(mm) | 1.95 | 2.604 | 2.97 | 3.91 | 4.81 |
| Module Resolution(W×H) | 128×128 | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size(mm) | 250×250×18 | ||||
| Module Weight(kg) | 0.7 | ||||
| Module Qty/Cabinet(W×H) | 2×4 | ||||
| Cabinet Resolution(W×H) | 256x512 | 192×384 | 168*336 | 128×256 | 104×208 |

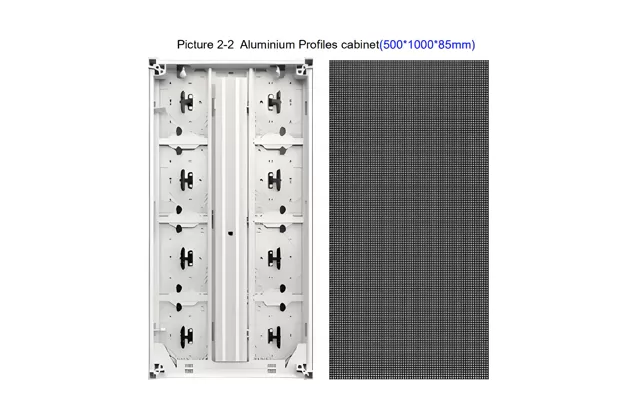

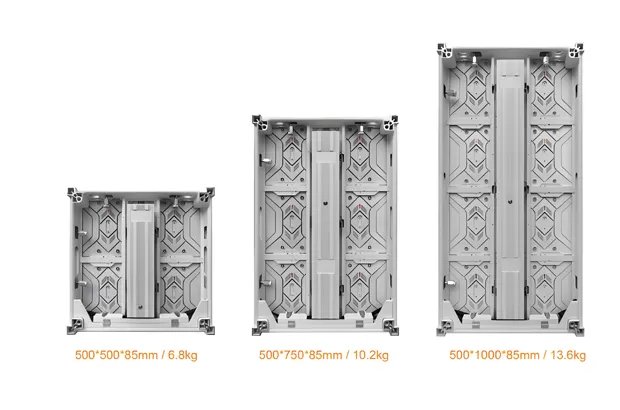

| Cabinet Size(mm) | 500×1000×85 | ||||
| Cabinet Area(m²) | 0.5 | ||||
| Cabinet Weight(kg/cabinet) | 13.6 | ||||
| Cabinet Material | Aluminium Profiles | ||||
| Cabinet Density (dot/m²) | 262144 | 147456 | 112896 | 65536 | 43264 |
| IP Rating | IP66 | ||||
| White Balance Brightness(nits) | ≥4500 | ≥4500 | ≥4500 | ≥4500 | ≥4500 |
| Color Processor(bit) | 16 | ||||
| Color Temperature(K) | 6500-9000 | ||||
| Visual Angle(H/V) | 140°/120° | ||||
| Luminous point centre deviation | <3% | ||||
| Luminance uniformity | ≥97% | ||||
| Chromaticity uniformity | Within±0.003Cx,Cy | ||||
| Contrast Ratio | ≥5000:1 | ||||
| The Max Power Consumption(W/m²) | 700 | 700 | 700 | 700 | 700 |
| Average Power Consumption(W/m²) | 235 | 235 | 235 | 235 | 235 |
| Input Voltage | AC100~240V | ||||
| Frequency(Hz) | 50&60 | ||||
| IC Driving(scan) | 1/32 scan | 1/24 scan | 1/21 scan | 1/16 scan | 1/13 scan |
| Refreshing Ratio(Hz) | 3840 | ||||
| Maintenance Method | Front and Rear Maintenance | ||||
| Lifespan(hrs) | 100,000hours | ||||
| Work Temperature/Humidity | -10℃-50℃/10%RH-98%RH (Non Condensing) | ||||
