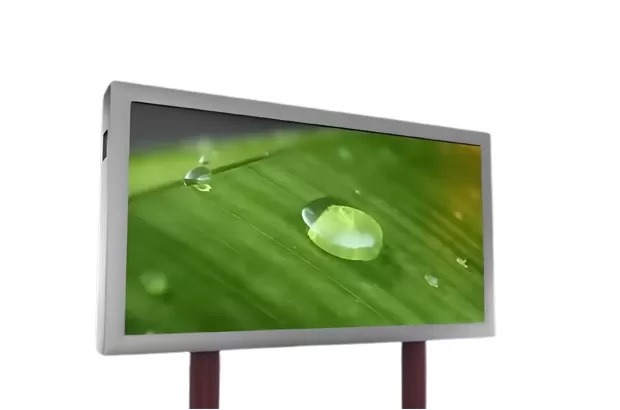

P4.4/P5.7/P6.66 /P8/P10
Products in strict accordance with EMC ClassB design,Can get certification by CNAS etc third-part
| Pixel Pitch | P5.7 | P6.66 | P8 | P10 |
| LED Type | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Physical Density (dots/m²) | 30625 | 22500 | 15625 | 10000 |
| Module Resolution | 84×56 | 72×48 | 60×40 | 48×32 |
| Module Size (W×H) | 480×320 | 480×320 | 480×320 | 480×320 |
| Cabinet Size (mm) | 960×960×77mm | 960×960×77mm | 960×960×77mm | 960×960×77mm |
| Cabinet Resolution | 168×168dots | 144×144dots | 120×120dots | 96×96dots |
| Cabinet Weight(kg) | 28kg | 28kg | 28kg | 28kg |
| Maintenance Mode | Front and Back | Front and Back | Front and Back | Front and Back |
| maintenance | maintenance | maintenance | maintenance | |
| Cabinet Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Brightness | >6500cd/m² | >6500cd/m² | >6500cd/m² | >6500cd/m² |
| Environmental | outdoor | outdoor | outdoor | outdoor |
| Viewing angle | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| The best viewing distance | >5m | >5m | >5m | >5m |
| Drive Mode | 1/7 Scan | 1/6 Scan | 1/4 Scan | 1/2 Scan |
| Grey level | 14 bit | 14 bit | 14 bit | 14 bit |
| Refresh Rate (Hz) | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Max Power Consumption (W/m²) | 650W/m² | 650W/m² | 650W/m² | 650W/m² |
| Average Power Consumption (W/m²) | 200W/m² | 200W/m² | 200W/m² | 200W/m² |
| IP Grade | IP 65 | IP 65 | IP 65 | IP 65 |
| Input Power | AC100-240V, 50/60 Hz | |||
| Working Temperature/Humidity (℃/RH) | -20~50℃/10%~95% | |||
| Storage Temperature/Humidity (℃/RH) | -20~50℃/10%~95% | |||
| Operating Life | 100,000hours | |||
Full-Aluminum design, with special grain design,good heat-dssipation.
Partial voltage design,lower heat-emitting,longer lifetime.
With HUB between modules and receiving card,more stable.
Creating circuit design, high effective rate, Brightness can range from 6500nits to 10000nits.

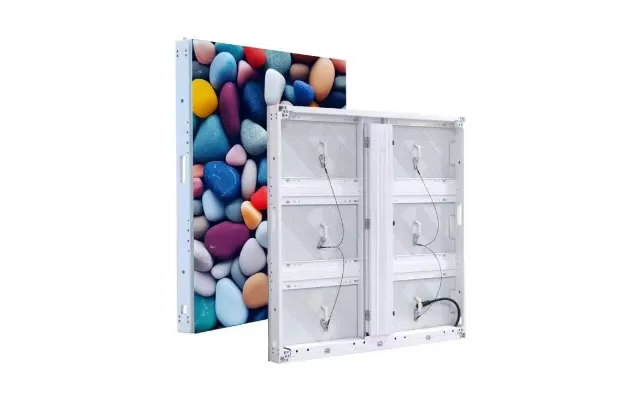

Full front & rear maintenance design, easy install and save installation space.
Lightweight design, 30kg/m, thickness is only 77mm.
Modules can be switched between right and left side, lower-cost.
Creating mask design , can higher the contrast rate.
With high precision mask design, no block color difference.
