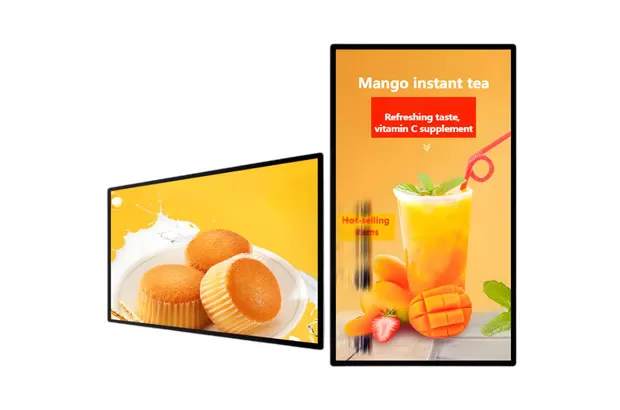

The 32, 43, 49, 55, 65-inch HD display delivers exquisite image quality, rich and vibrant colors, and clear and smooth dynamic video. Utilizing unique patented ADSDS super-hard screen technology and high-performance image processing, it boasts a 178° ultra-wide viewing angle and 1.07 billion colors. Combined with a minimalist design, it boasts an elegant and sophisticated appearance. Equipped with a high-power, high-quality audio system, it provides a multi-layered soundstage, bringing you a thrilling audio experience.
| Specifications | Parameter | |
| LCD Panel | Screen Size (Diag.) | 32'' 43” 49'' 55'' 65'' |
| Resolution | (32'' 43” 49'' 55''：1920*1080) (65''：3840*2160) | |
| Aspect Ratio | 16:09 | |
| Brightness | 300-350cd/m2 (Center 1point ,Typ.) | |
| Contrast Ratio | 1500:01:00 | |
| Viewing Angle(CR>10) | 178° | |
| Display area | Pls see Dimensional Drawing | |
| Backlight Life | 50000Hrs | |
| Hardware configuration | Chip-set | Chip-set HuiduA133，4 cores A53，1.5GHz |
| RAM | 1G Byte DDR | |
| ROM | 32G Byte eMMC flash | |
| Android OS | Android OS Android 10.0 | |
| Sound | Built-in Speakers | 5W*2(8Ω) |
| I/O interface | USB2.0 | 2（includes a Front USB） |
| RJ45 network input/LAN in | 1（10/100M） | |
| Wifi module | 2.4G WIFI | 1 |
| Power supply | Input Power | 100-240V |
| Consumption | Power Consumption (Typical) | ＜90W |
| Stand-by power consumption | Power Consumption (Standby) | ＜0.5W |
| Environmental conditions | Operating Temp. | -10-50℃ |
| Operating Humid | 10%-80% | |
| Product spec | Dimension (WxHxD) | Pls see Dimensional Drawing |
| Physical spec | Package Dimension | Pls see Dimensional Drawing |
| Net Weight | 13.9KG | |
| Wall hanging size(mm) | Horizontal 300 x Vertical 300 | |
| Software Features (Cloud Platform) | Software function | 1. The terminal features a rich interface to meet diverse needs. |
| 2. The terminal can be set to play specific programs at a scheduled time, multiple programs can be played simultaneously, and specific programs can be paused and played. | ||
| 3. The terminal can switch between "networked advertising machine" and "stand-alone advertising machine" functions using the remote control. If you have a small number of advertising machines, you can use the stand-alone function first, then switch back to the networked advertising machine function when the number of machines increases. | ||
| 4. It supports wired, Wi-Fi, and 4G networks, and automatically switches to the stand-alone version if the network is disconnected. | ||
| 5. The network publishing system uses a B/S architecture and supports one-click installation. It takes only 2 minutes to install the system, 5 minutes to connect to the host, and 30 minutes to learn how to publish programs. | ||
| 6. Terminal programs can be remotely transmitted and managed, expired files can be remotely deleted, and programs can be copied to the terminal via USB flash drive. | ||

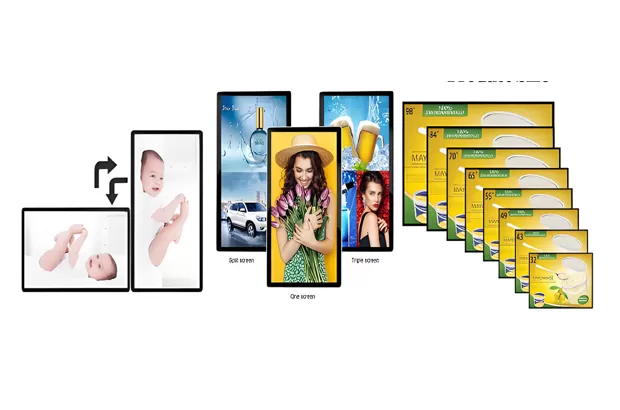

| Software Features (Cloud Platform) | Software function | 7. Program creation supports images, audio, video, text, Flash, web pages, weather, news, interest rates, and other information. It can also play AV signals and content from USB flash drives. It supports split-screen, overlay, image effects, and text subtitle effects, and you can set the duration of image material in the program. 8. Supports 1080P HD playback and supports at least two HD video decoding channels per screen (up to 10 channels decoded simultaneously). |
| 9. The control center monitors the online status of each terminal's playback and allows viewing of exception logs. | ||
| 10. Supports carousel and interstitial scheduling, instant notifications, timed playback on and off, and remote volume control. It also allows viewing the execution of transmission commands, operation logs, and program statistics such as the cumulative frequency and duration of program (material) playback on each terminal. | ||
| 11. Supports dynamic domain name resolution, eliminating the need for a fixed IP address (support for Peanut Shell domain name resolution can be solved). | ||
| 12. Multiple administrators and operation accounts can be set up and assigned different permissions; administrators can review content and record reasons for rejection. | ||
| 13. A single server can manage an unlimited number of terminals. | ||
| Advanced Features: | ||
| 1. Provides an XML data interface to support the access of text, video, and image information from external devices, such as queue call information and KTV welcome messages. Please refer to the code for details. 2. Supports touchscreen program production without additional programming. Connecting to an external touchscreen monitor allows for flexible creation of touchscreen-based programs. | ||
| 3. Supports Ethernet or Wi-Fi access, allowing simultaneous playback of the same program on multiple terminals within a local area network (referred to as "multi-device synchronization"). | ||
