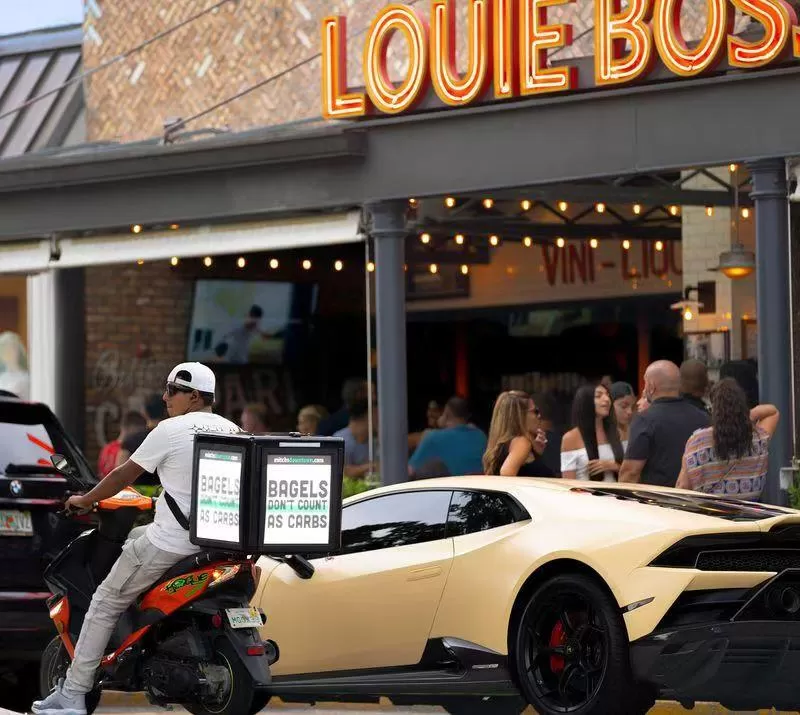

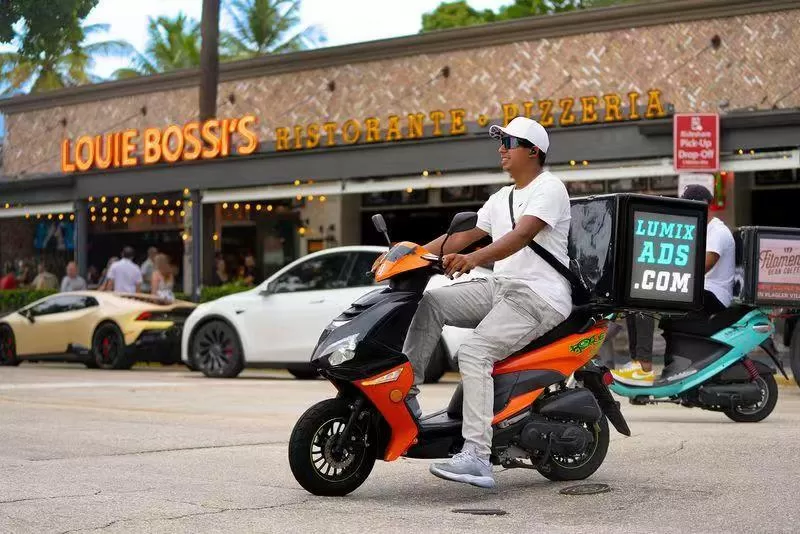

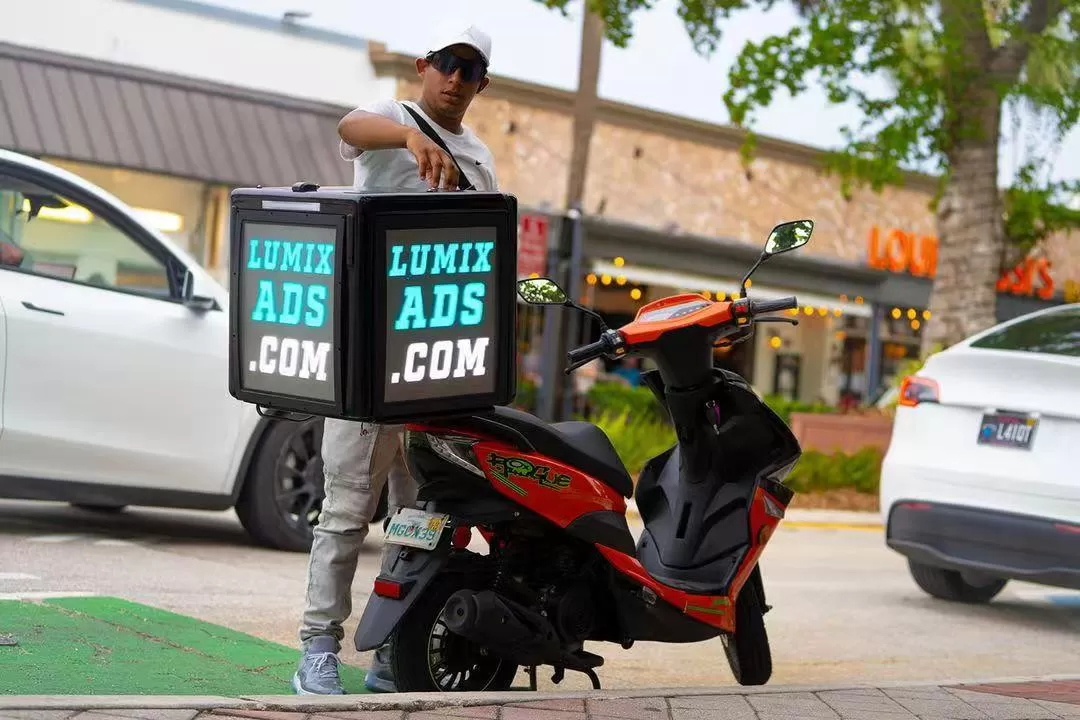

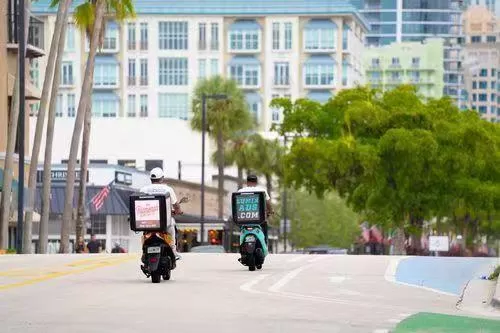

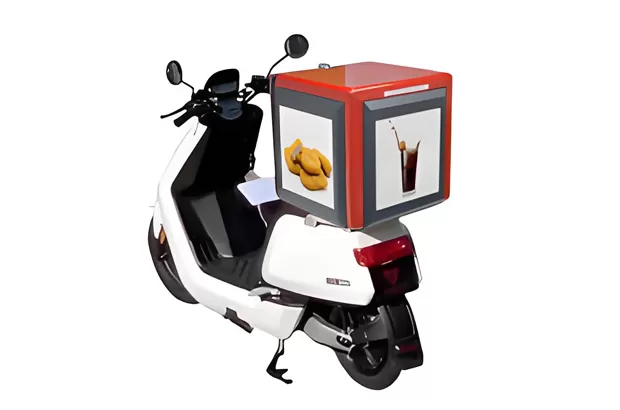

High coverage. The number of takeaway drivers is large, and there are many operating routes. Major commercial districts, business and financial districts, residential districts, stations and other areas are all target areas.

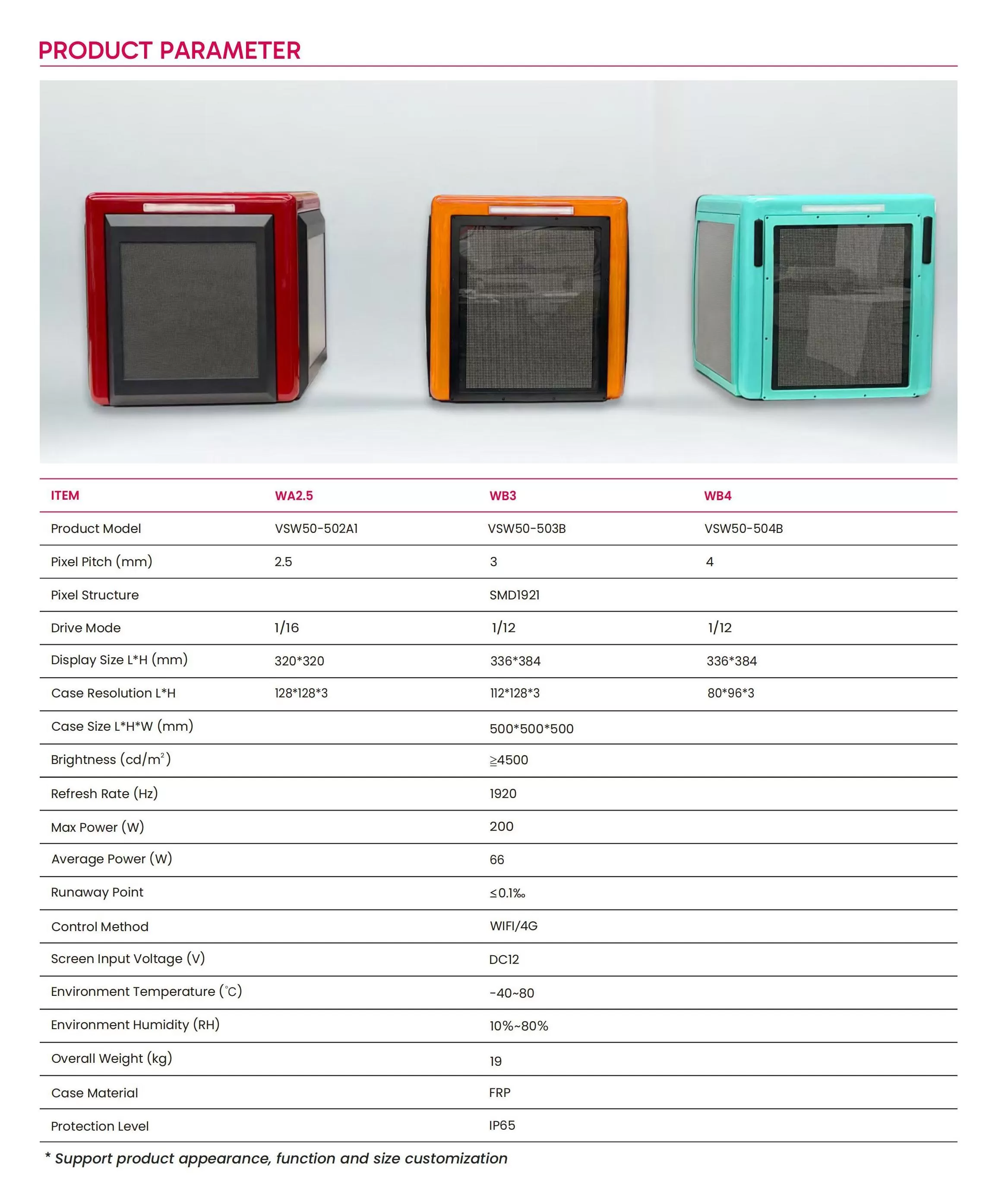

| PRODUCT PARAMETER | |||
| ITEM | WA2.5 | WB3 | WB4 |
| Product Model | VSW50-502Al | VSW50-503B | VSW50-504B |
| Pixel Pitch(mm) | 2.5 | 3 | 4 |
| Pixel Structure | SMD1921 | ||
| Drive Mode | 1/16 | 1/12 | 1/12 |
| Display Size L*H(mm) | 320*320 | 336*384 | 336*384 |
| Case Resolution L*H | 128*128*3 | 112*128*3 | 80*96*3 |
| Case Size L*H*W(mm) | 500*500*500 | ||
| Brightness(cd/m²) | ≥4500 | ||
| Refresh Rate(Hz) | 1920 | ||
| Max Power(w) | 200 | ||
| Average Power(w) | 66 | ||
| Runaway Point | ≤0.1% | ||
| Control Method | WIFI / 4G | ||
| Screen Input Voltage(v) | DC12 | ||
| Environment Temperature(℃) | -40~80 | ||
| Environment Humidity(RH) | 10%~80% | ||
| Overall Weight(kg) | 19 | ||
| Case Material | FRP | ||
| Protection Level | IP65 | ||
| *Support product appearance,function and size customization | |||
