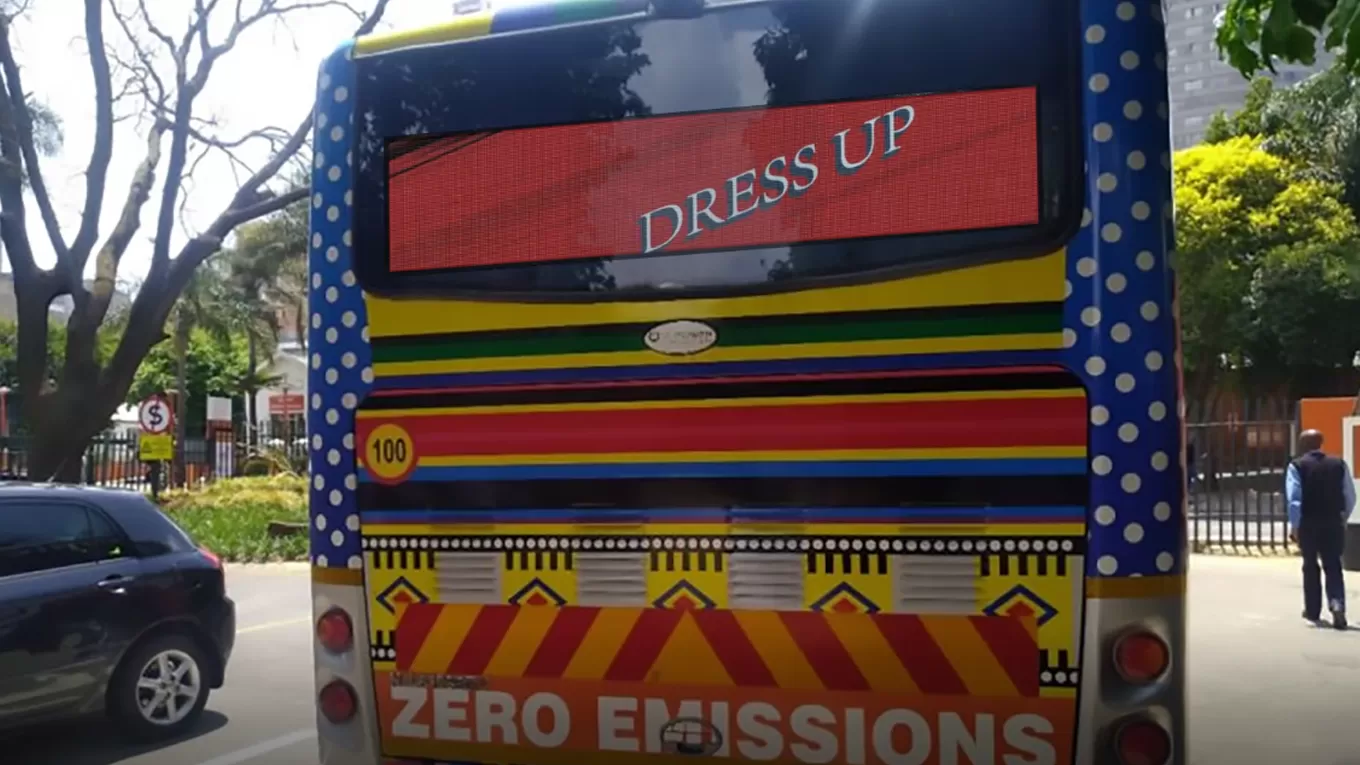

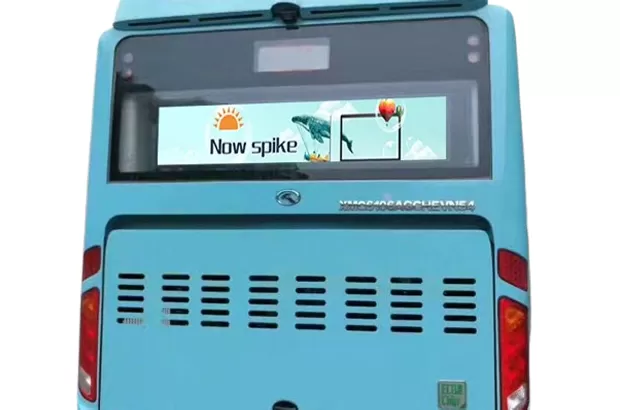

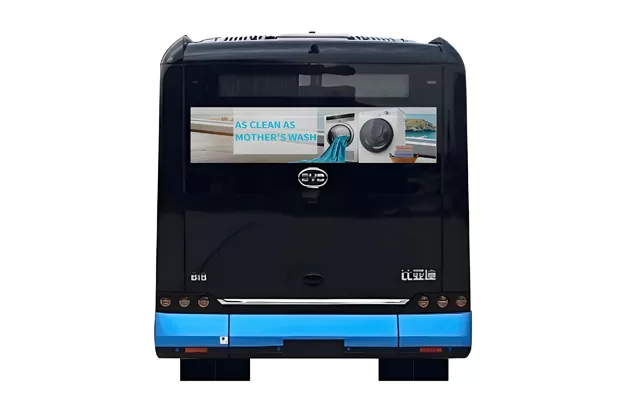

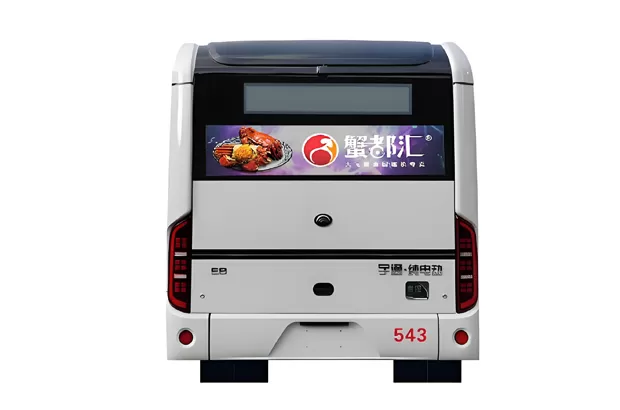

The bus LED vehicle rear window screen is installed on the bus rear window. It is an important carrier for mobile advertisement display.
| Specifications | ||||
| LEDSHELL | LS 3.875 | LS 2.58 | LS 1.93 | LS 1.55 |
| Pixel Pitch | 3.875mm | 2.58mm | 1.9375mm | 1.55mm |
| Max Brightness Calibrated | 1500nits | 1500nits | 1500nits | 1500nits |
| Panel Dimension | 496mmx496mmx55mm/62mm | |||
| Panel Resolution(HxV) | 128x128 | 192x192 | 256x256 | 320x320 |
| Panel Weight | 8.2kg | 8.2kg | 8.2kg | 8.2kg |
| Power Consumption Max/Average | 180W/90W | 160W/80W | 160W/80W | 160W/80W |
| BTU Max /Average | 615/280 | 545/250 | 545/250 | 545/250 |
| Transparency | Solid | Solid | Solid | Solid |
| Serviceability | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Curving (Concave &Convex) | Concave 5°~Convex 5° | Concave 5°~Convex 5° | Concave 5°~Convex 5° | Concave 5°~Convex 5° |
| Max.Hanging(panels) | 20 | 20 | 20 | 20 |
| Max.Stacking(panels) | 12 | 12 | 12 | 12 |
| LED Configuration | SMD1010 Black | SMD1010 Black | SMD1010 Black | SMD1010 Black |
| Viewing Angle Horizontal | 140° | 140° | 140° | 140° |
| Viewing Angle Vertical | 140° | 140° | 140° | 140° |
| Scan Ratio | 1/16 scan | 1/16 scan | 1/16 scan | 1/16 scan |
| Refresh Rate | 7680Hz | 7680Hz | 7680Hz | 7680Hz |
| Gray Scale | 15bit | 15bit | 15bit | 15bit |
| Frame Material | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy |
| Processing Platform | NOVA/Brompton | NOVA/Brompton | NOVA/Brompton | NOVA/Brompton |
| IP Rating | Indoor | Indoor | Indoor | Indoor |
