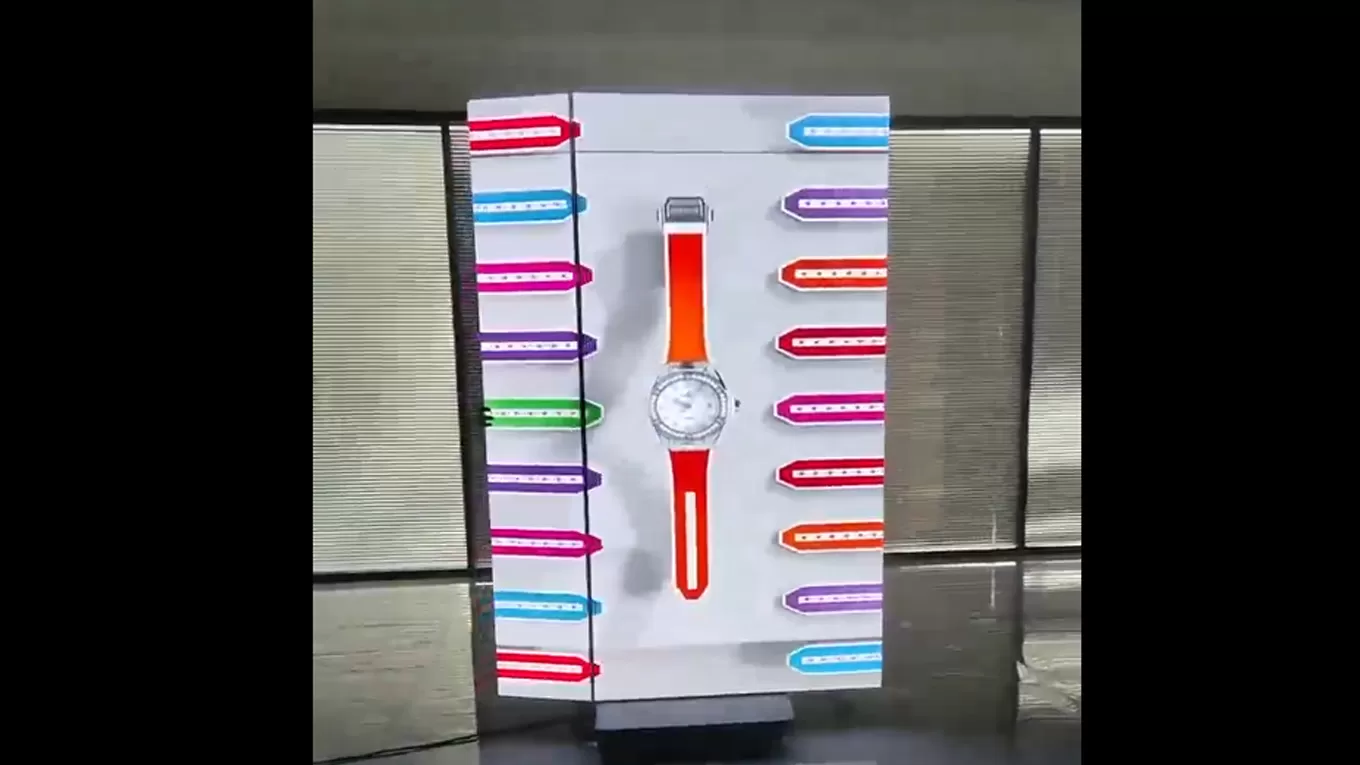

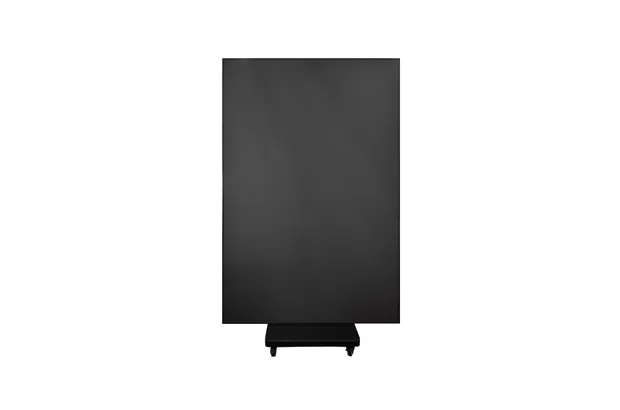

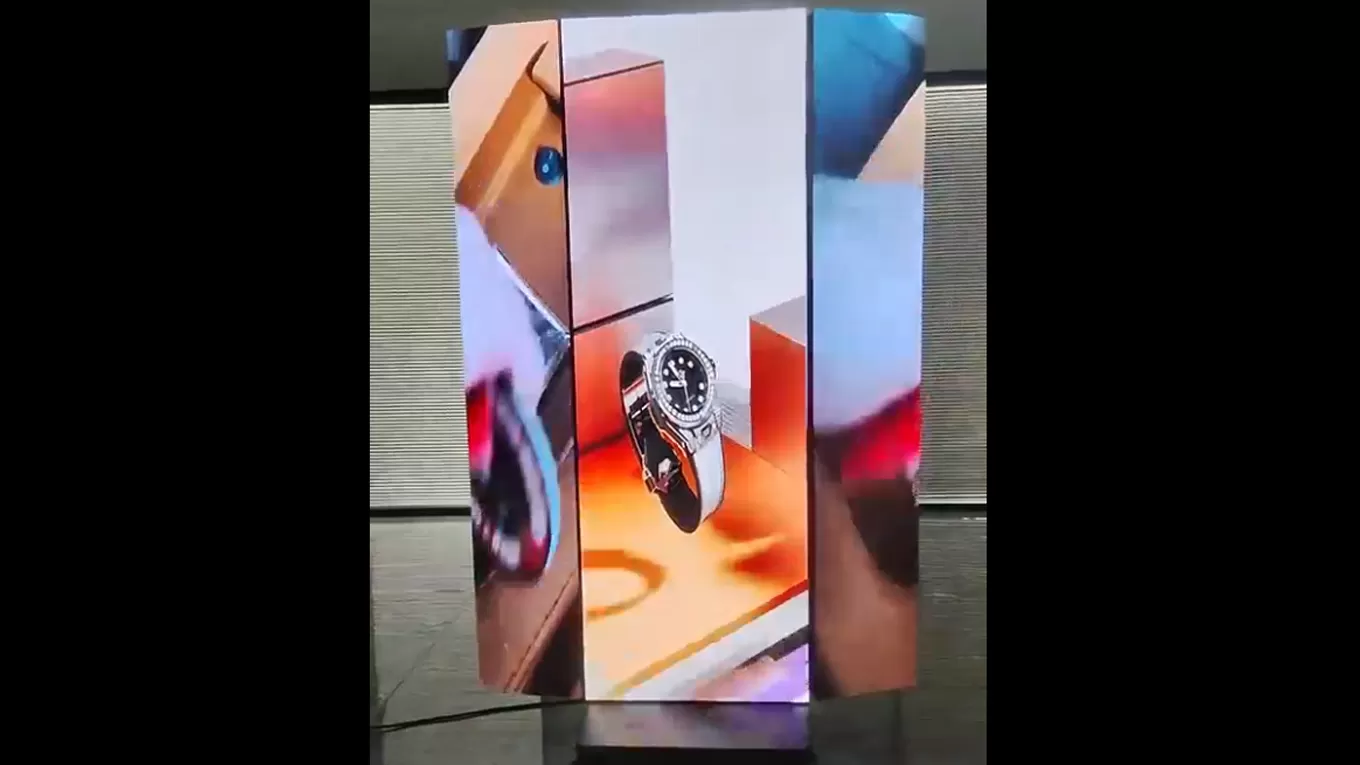

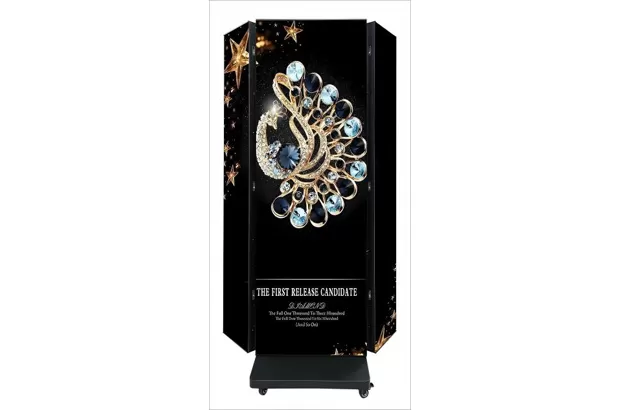

High-Performance Foldable LED Advertising Display with Seamless Splicing
| parameter | |||||
| Model Number | P1.538 | P1.86 | P2 | P2.5 | P3.076 |
| Physical Pitch | 1.538mm | 1.86mm | 2mm | 2.5mm | 3.076mm |
| Package Mode | SMD1212 | SMD1515 | SMD1515 | SMD1515/2020 | SMD2020 |
| Physical Density | 1038336dots | 710016dots | 614400dots | 393216 dots | 259584 dots |
| Module Size | 320*160mm | ||||
| Pixel Resolution | 208*104=21632 dots | 172*86=14792 dots | 160*80=12800dots | 128*64=8192 dots | 104*52=5408 dots |
| Module Thickness | 15mm | ||||
| Weight | 0.5kg | ||||
| Max Power | 25W | ||||
| Scan Mode | 1/52S | 1/43S | 1/40S | 1/32S | 1/26S |
| Match Cabinet | 1280*1920*55mm | ||||
| Cabinet Weight | 83kg±1kg | ||||
| Pixel Per Cabinet | 832*1248=1038336dots | 688*1032=710016dots | 640*960=614400ots | 512*768=393216dots | 416*624=259584dots |
| Number Of Cabinet Modules | 48pcs | ||||
| Recommended Viewing | 1.5-50m | 2-50m | 2-50m | 2-50m | 3-50m |
| Change Frame Frequency | 60Hz | ||||
| Rate Refresh | 3840Hz-7680Hz | ||||
| Pixel Configuration | 1R1G1B | ||||
| Brightness Of White Balance | ≥700cd/m² | ≥700cd/m² | ≥700cd/m² | ≥800cd/m² | ≥820cd/m² |
| Number Of Power Supplies In The Cabinet | 8pcs | ||||
| Power Supply | 5V/40A*8 PCS | ||||
| Average Power Consumption | 530W/PCS | ||||
| Max.Power Consumption | 1600W/PCS | ||||
| Protection level | IP43 | ||||
| Protective Measures | Three Proofing Paint | ||||
| Module Working Voltage | DC 5V | ||||
| Operating | -20～+50℃ | ||||
| Life Time | >1000000h | ||||
| The Rate | <0.0001 | ||||
| MBTF | >5000h | ||||
| Maintenance Connection Mode | Front Maintenance | ||||
| Best Viewing Angle | H:160°,V:160° | H:160°,V:160° | H:140°,V:140° | H:140°,V:140° | H:140°,V:140° |
| Cabinet Matching Module Model | P1.538/P1.86/P2/P2.5/P3.076 | ||||
| Input Voltage | 220V;AC±10% | ||||
| Evenness | ≤0.5mm | ||||
| Working Voltage | 220V;AC±10% | ||||
| CPU | Pentium4 Or Abov | ||||
| Operation System | WIN98/2000/NT/XPIN7IN8VIN10/WIN11 | ||||
| Synchronous/Asynchronous | Support | ||||
| Communication method | APP/USB/Ethernet port/4G remote | ||||
| Interface | RJ45、WIFI、USB、HDMI | ||||
| Audio | 3.5Audio Interface/Supports External Amplifier | ||||
| Luminance uniformity | ≥95% | ||||
| Driving IC | PWM | ||||
| Gray scale | 14-16bit Adjustable Grayscale | ||||
