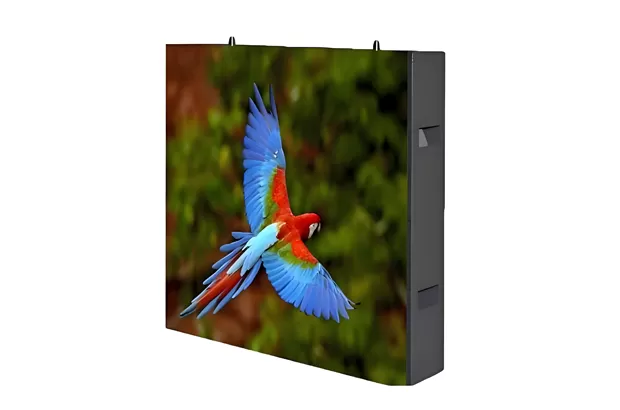

DIP LED Display-P10, P16, P20
| Item | P10 | P16 | P20 |
| Pixel Pitch | 10mm | 16mm | 20mm |
| LED Type | DIP346 | DP346 | DIP346 |
| Module Resolution | 32dots × 16dots | 16dots × 16dots | 16dots × 8dots |
| Driving Mode | 1/4 scan | static | static |
| Module Pixels | 512dots | 256dots | 128dots |
| Module Size(mm) | 320mm × 160mm | 256mm × 256mm | 320mm × 160mm |
| Cabinet Size(mm) | 960mm × 960mm | 1,024mm × 768mm | 960mm × 960mm |
| Cabinet Resolution(dots) | 96dots × 96dots | 64dots × 48dots | 48dots × 48dots |
| Pixel Density(dots/m²) | 10,000dots/m² | 3,906dots/m² | 2,500dots/m² |
| Minimum Viewing Distance | ≥10m | ≥16m | ≥20m |
| Brightness | ≥7,000nits | 7,000nits～10,000nits | 6,000nits~7,500nits |
| IP Grade | IP65 | IP65 | IP65 |
| Refresh Rate | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz～3,840Hz |
| Gray Scale | 13bits~24bits | 13bits~24bits | 13bits~24bits |
| Viewing Angle | H:120°/V60° | H:120°/V60° | H:120°/V60° |
| Maximum Power Consumption | 460W/m² | 520W/m² | 390W/m² |
| Average Power Consumption | 130W/m² | 150W/m² | 110W/m² |
| Inout Voltage | AC220V~AC110V@50Hz/60Hz | AC220V~AC110V@50Hz/60Hz | AC220V~AC110V@50Hz/60Hz |
| Operating Temperature | -20℃~65℃ | -20℃~65℃ | -20℃~65℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum |
| Cabinet Weight | 60kg/m² or 45kg/m² | 60kg/m² or 45kg/m² | 60kg/m² or 45kg/m² |
| Operating System | Windows (Win7,Win8,etc) | Windows (Win7,Win8,etc) | Windows(Win7,Win8,etc) |
| Signal Source Compatibility | DVI, HDMI1.3,DP1.2,SDI HDMI2.0,etc | DVI, HDMI1.3,DP1.2,SDI HDMI2.0,etc | DVI, HDMI1.3,DP1.2,SDI HDMI2.0,etc |
We use customized PCB and power supply, so average power consumption is less than 15 0 W/ ㎡ . Compared with similar products in the market, the display saves 2 0% energy.
The pixel pitches are P10, P16, P20.
Gold bonding wire DIP LED with stable driving IC ensures the high brightness of 10,000 units and the long lifespan of modules.
The image on the screen is formed perfectly.
One of the reasons is that the refresh rate can reach 3,840Hz.
3 layers of high-quality conformal coating protect the driving IC and other electron components from dust and humidity.
Strong signal cable brings more secure and the cables look neat.
Most LED screens from other suppliers have a low gray scale, so some of the colors can't be displayed on the screen, and the image on the LED screen appears like a ghost image. Our LED screen grayscale is 13 bits ~ 24 bits. It is very high so the image looks very vivid and perfect.

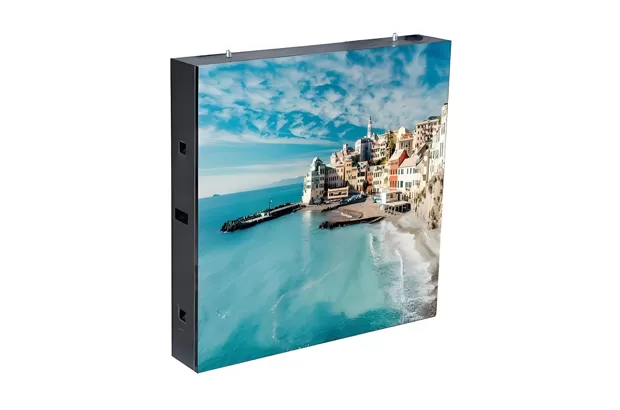

The LED display cabinet is made of steel material or aluminum material. We adopt the best materials and great crafts to manufacture this LED display. Therefore, the LED screen functions are very stable in outdoor scenes.
High Contrast: The contrast ratio of the LED screen gives a sharp image quality.
High Brightness: The brightness of the LED display can be up to 10,000 units. Even if the screen is facing direct sunlight, the image still looks clear.
We have sold many LED screens to different districts like American, European, Middle East, African, etc.
Many of our screens have been working for more than 5 years, and they are still working properly. They are a great solution for outdoor advertising billboards.

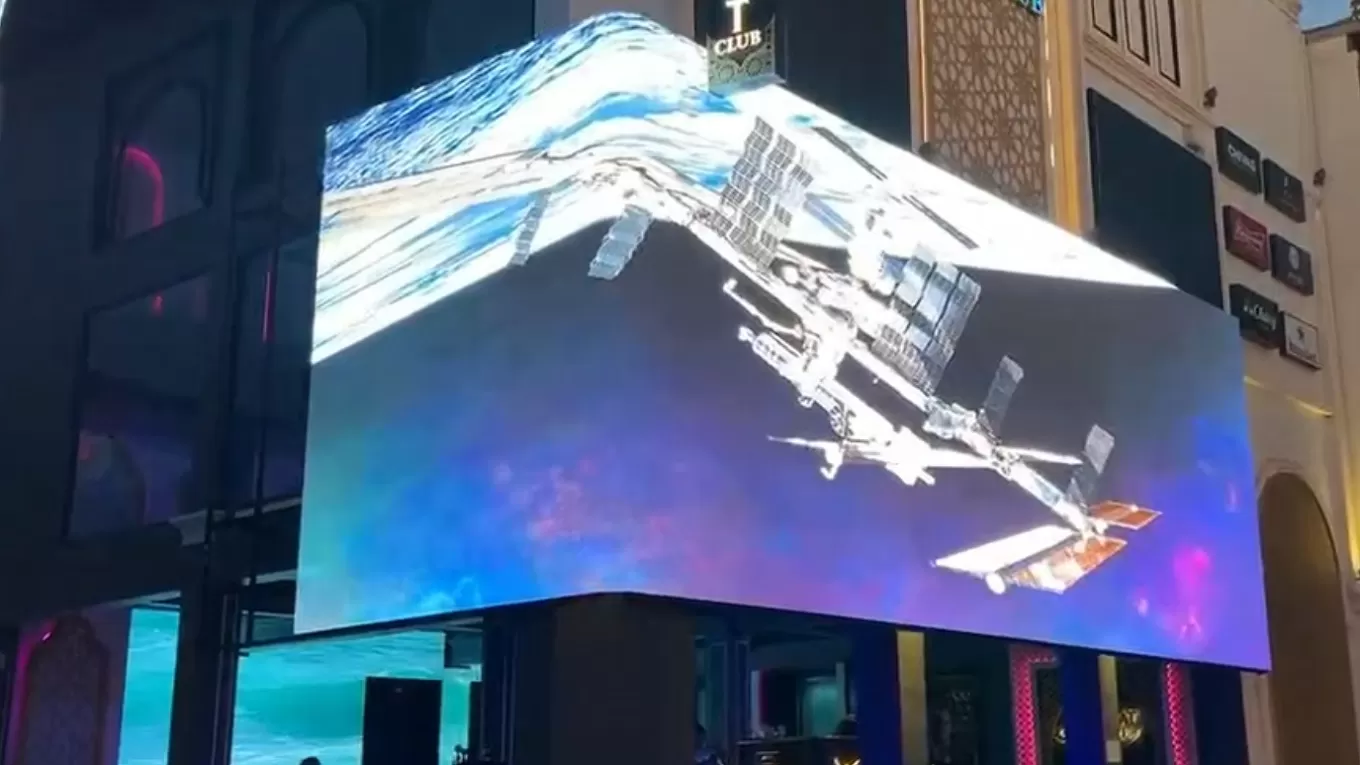

Outdoor Advertising
DOOH
Truck
