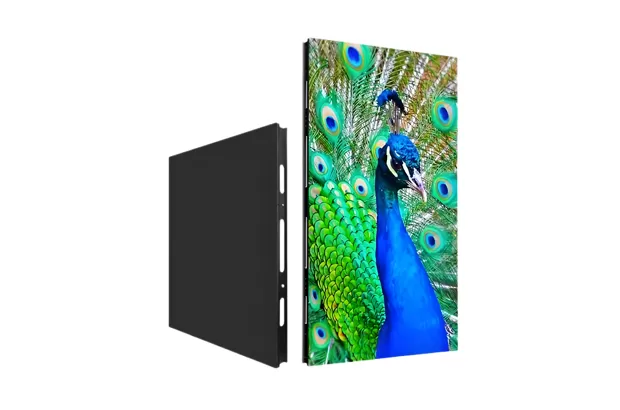

P3.125/P4.16/P5/P6.25/P8.33/P10
Matte corrugation module mask achieves ultra-high contrast ratio
| Pixel Pitch | P3.125 | P4.16 | P5 | P6.25 | P8.33 | P10 |
| LED Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Physical Density (dots/m²) | 102400 | 57600 | 40000 | 25600 | 14400 | 10000 |
| Module Size (W×H) | 400×300 | |||||
| Module Resolution | 128×96 | 96×72 | 80×60 | 64×48 | 48×36 | 40×30 |
| Cabinet Size (mm) | 1600x900 /800×900 /800×1200 | |||||
| Cabinet Resolution | 512x288 /256×288 /256×384 | 384x216 /192×216 /192×288 | 320x180 /160×180 /160×240 | 256x144 /128x144 /128x192 | 192x108 /96×108 /96×144 | 160x90 /80×90 /80×120 |

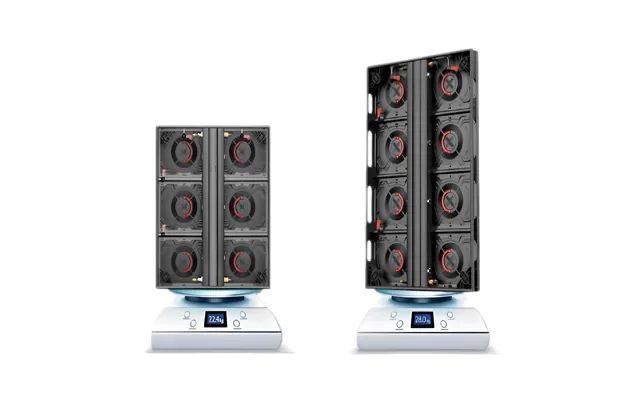

| Cabinet Weight(kg) | 45 /17.5 /22.5 | |||||
| Maintenance Mode | Front and Back | |||||
| maintenance | ||||||
| Cabinet Material | Profile cabinet | |||||
| Brightness | 5000 | 6500 | 6500 | 6500 | 6500 | 6500 |
| Color Temperature(K) | 1000-18500 | 1000-18500 | 1000-18500 | 1000-18500 | 1000-18500 | 1000-18500 |
| Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | |
| Viewing angle | 140°/160° | |||||
| Grey level | 16 bit | |||||
| Contrast Ratio | 10000:1 | |||||
| Frame Frequency | 50/60 | |||||
| Refresh Rate (Hz) | 3840 | |||||
| Drive Mode | Static,1/16 Scan | Static,1/6 Scan | Static,1/6 Scan | Static,1/6 Scan | Static,1/3 Scan | Static,1/2 Scan |
| The best viewing distance | 4 -150m | 4 -150m | 5 -150m | 6 -200m | 8 -200m | 10 -300m |
| Max Power Consumption (W/m²) | 780 | 780 | 780 | 780 | 780 | 780 |
| Average Power Consumption (W/m²) | 200-300 | 200-300 | 200-300 | 200-30 | 200-300 | 200-300 |
| IP Grade | IP 65 | |||||
| Input Power | AC90-264V,47-63 Hz | |||||
| Working Temperature/Humidity (℃/RH) | -20~60℃/10%~85% | |||||
| Storage Temperature/Humidity (℃/RH) | -20~60℃/10%~85% | |||||
| Cert. | CCC / CE / ROHS / FCC / CB / TUV / IEC | |||||
