Micro-COB-Series (P0.78, P0.93, P1.25, P1.56)

Micro-COB-Series (P0.78, P0.93, P1.25, P1.56) (600x337.5mm)

Name: Micro-COB-Series (P0.78, P0.93, P1.25, P1.56)
Brand: Shenzhen KMTEKLED Photoelectricity Co.,LTD.
Availability: InStock

Micro-COB-Series indoor PRODUCT

Specifications

Features

Installation Method

Micro-COB-Series (P0.78,P0.93,P1.25,P1.56) Specifications

Item	P0.62	P0.78	P0.93	P1.25	P1.56	P1.87
Pixel pitch	0.625mm	0.78mm	0.9375mm	1.25mm	1.5625mm	1.875mm
Pixel density	2560000	1638400	1137778	640000	409600	284444
Module size	150x168.75mm
LED package	Flip-chip COB	Flip-chip COB	Flip-chip COB	Flip-chip COB	Flip-chip COB	Flip-chip COB
Module resolution(pixels)	240x270	192x216	160x180	120x135	96x108	80x90
Module arrangement per cabinet	4x2
Cabinet dimension	600x337.5x30mm
Cabinet weight(including module)	5.1kg
Cabinet resolution (pixels)	960x540	768x432	640x360	480x270	384x216	320x180
Maintenance	Full front service
System backup	Support
White balance brightness	500-800cd/m²
Pixel-level calibration	Support
Color temperature	6500K(adjustable)
Refresh rate	3840Hz
Viewing angle	160°(V/H)
Brightness uniformity	≥99%
Grayscale level	16bits
Contrast ratio	10000:1
Scanning mode	1/60 scan	1/48 scan	1/54 scan	1/60 scan	1/54 scan	1/40 scan
Working voltage (input)	110-240V,50/60Hz
Max./Avg.Power consumption	500W/m²/165-260W/m²
Storage temperature&humidity (RH)	-20°C-50°C&35-75%
Working temperature&humidity(RH)	-20°C-50°C&35-75%
IP ratings	IP45
Screen temperature rise	≤5℃
Installation	On-wall/recessed/pedestal/suspended/stacked install
Signal output	HDMI/VGA/DVI/DP
Certification	RoHS/FCC/CE
LED Display Type	Small pixel LED display

Micro-COB-Series (P0.78, P0.93, P1.25, P1.56) Detailed Information and Features

MICRO-COB SERIES

Micro-COB Series covers pixels of 0.7mm,0.9mm,1.2mm,1.5mm,to provide 4k/8K video quality.

INTRODUCTION

Lightweight
Tangibility
Smoothness

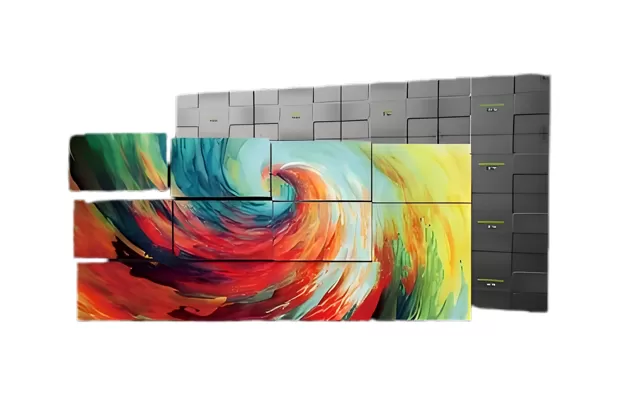

Mixed ways of installation with multiple magnetic openings on backside
Redundancy system

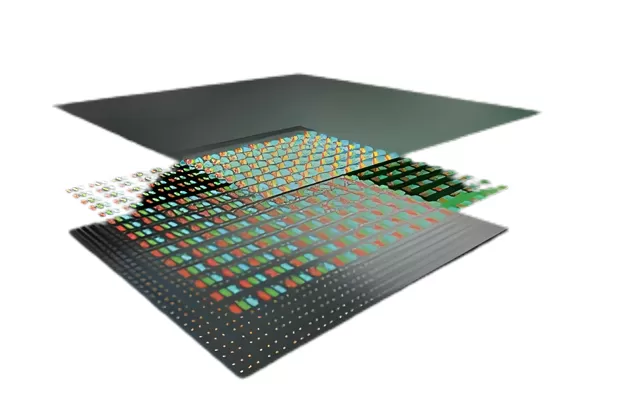

ASSEMBLY VIEW

Micro-COB Series is consisted of modular,independent parts, and LED modules and PSU are connected cordlessly through the HUB board, therefore ensuring screen flatness to a great extent.
