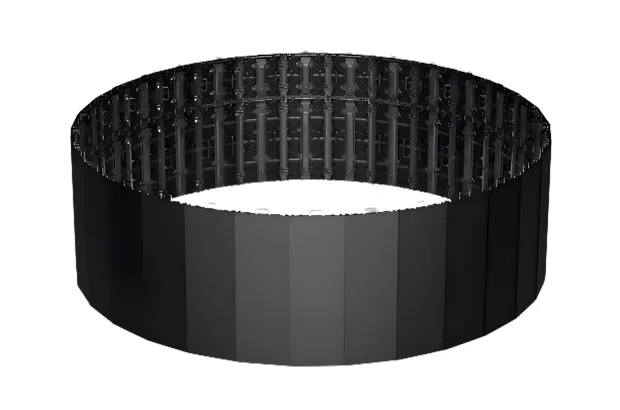

Indoor LED display for Rental P1.56,P1.9, P2.6, P2.9, P3.91,P4.81 (Cables connect between led module and hub board)
| IR S Series Parameters | ||||||
| Item | P1.56 | P1.9 | P2.6 | P2.9 | P3.91 | P4.81 |
| Pixel Pitch | 1.56mm | 1.953mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Module Resolution | 160dots x 160dots | 128dots x 128dots | 96dots x 96dots | 84dots x 84dots | 64dots x 64dots | 52dots x 52dots |
| Driving Mode | 1/32 scan | 1/32 scan | 1/24 scan | 1/21 scan | 1/16 scan | 1/13 scan |
| Module Pixels | 25,600dots | 16,384dots | 9,216dots | 7,056dots | 4,096dots | 2,704dots |
| Module Size(mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Cabinet Size(mm) | 500 x 500/1000 | 500 x 500/1000 | 500 x 500/1000 | 500 x 500/1000 | 500 x 500/1000 | 500 x 500/1000 |
| Cabinet Resolution(dots) | 320 x 320/640dots | 258 x 258/516dots | 192 x 192/384dots | 168 x 168/336dots | 128 x 128/256dots | 104 x 104/208dots |
| Pixel Density(dots/m²) | 409,600 | 282,144 | 147,456 | 112,896 | 65,536 | 43,264 |
| Minimum Viewing Distance | ≥1.5m | ≥1.9m | ≥2.6m | ≥2.9m | ≥3.9m | ≥4.8m |
| Brightness | 600~800nits | 600~800nits | 600~800nits | 600~800nits | ≥800nits | ≥800nits |
| IP Grade | IP43 | IP43 | IP43 | IP43 | IP43 | IP43 |
| Refresh Rate | 1920Hz~7,680Hz | 1920Hz~7,680Hz | 1920Hz~7,680Hz | 1920Hz~7,680Hz | 1920Hz~7,680Hz | 1920Hz~7,680Hz |
| Gray Scale | 12~16bits | 12~16bits | 12~16bits | 12~16bits | 12~16bits | 12~16bits |
| Viewing Angle | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Maximum Power Consumption | 520(W/m²) | 520(W/m²) | 520(W/m²) | 520(W/m²) | 520(W/m²) | 520(W/m²) |
| Average Power Consumption | 175(W/m²) | 175(W/m²) | 175(W/m²) | 175(W/m²) | 175(W/m²) | 175(W/m²) |
| Inout Voltage | AC110V~AC220V | AC110V~AC220V | AC110V~AC220V | AC110V~AC220V | AC110V~AC220V | AC110V~AC220V |
| 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | |
| Operating Temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
| Operating Humidity | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel |
| Operating System | Windows (Win7,Win8,etc.) | Windows (Win7,Win8,etc.) | Windows (Win7,Win8,etc.) | Windows (Win7,Win10,etc.) | Windows (Win7,Win10,etc.) | Windows (Win7,Win10,etc.) |
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2, | DVI,HDMI1.3,DP1.2, | DVI,HDMI1.3,DP1.2, | DVI,HDMI1.3,DP1.2, | DVI,HDMI1.3,DP1.2, | DVI,HDMI1.3,DP1.2, |
| SDI,HDMI2.0,etc | SDI,HDMI2.0,etc | SDI,HDMI2.0,etc | SDI,HDMI2.0,etc | SDI,HDMI2.0,etc | SDI,HDMI2.0,etc | |
