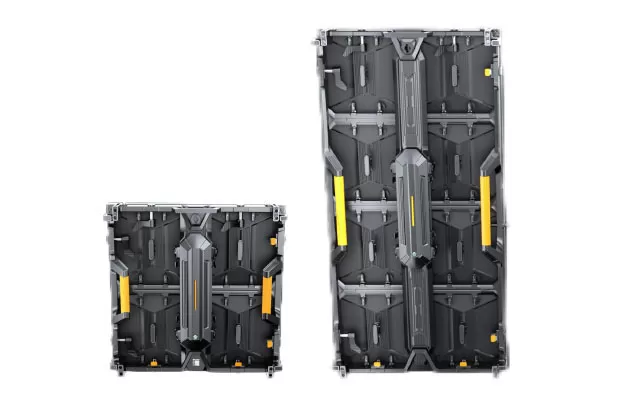

To meet the requirements of customers in different application scenarios, 2 cabinet sizes are available.
One of the cabinet size is 500mm x 500mm, and another one is 500mm x 1000mm, which makes installation flexible during the event.
| IR CN Series Parameters | |||||
| Item | P1.9 | P2.6 | P2.8 | P2.9 | P3.91 |
| Pixel Pitch | 1.953mm | 2.604mm | 2.84mm | 2.976mm | 3.91mm |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Module Resolution | 128dots x 128dots | 96dots x 96dots | 88dots x 88dots | 84dots x 84dots | 64dots x 64dots |
| Driving Mode | 1/32scan | 1/24scan | 1/22scan | 1/21scan | 1/16scan |
| Module Pixels | 16,384dots | 9,216dots | 9,216dots | 7,056dots | 4,096dots |
| Module Size(mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Cabinet Size(mm) | 500 x 500/1000 | 500 x 500/1000 | 500 x 500/1000 | 500 x 500/1000 | 500 x 500/1000 |
| Cabinet Resolution(dots) | 258 x 258/516dots | 192 x 192/384dots | 176 x 176/352dots | 168 x 168/336dots | 128 x 128/256dots |
| Pixel Density(dots/m²) | 282,144 | 147,456 | 123,904 | 112,896 | 65,536 |
| Minimum Viewing Distance | ≥1.9m | ≥2.6m | ≥2.8m | ≥2.9m | ≥3.9m |
| Brightness | 600~800nits | 600~800nits | 600~800nits | 600~800nits | ≥800nits |
| IP Grade | IP43 | IP43 | IP43 | IP43 | IP43 |
| Refresh Rate | 1920Hz~7,680Hz | 1920Hz~7,680Hz | 1920Hz~7,680Hz | 1920Hz~7,680Hz | 1920Hz~7,680Hz |
| Gray Scale | 12~16bits | 12~16bits | 12~16bits | 12~16bits | 12~16bits |
| Viewing Angle | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Maximum Power Consumption | 520(W/m²) | 520(W/m²) | 520(W/m²) | 520(W/m²) | 520(W/m²) |
| Average Power Consumption | 175(W/m²) | 175(W/m²) | 175(W/m²) | 175(W/m²) | 175(W/m²) |
| Inout Voltage | AC110V~AC220V 50Hz/60Hz | AC110V~AC220V 50Hz/60Hz | AC110V~AC220V 50Hz/60Hz | AC110V~AC220V 50Hz/60Hz | AC110V~AC220V 50Hz/60Hz |
| Operating Temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
| Operating Humidity | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel |
| Operating System | Windows (Win7,Win8,etc.) | Windows (Win7,Win8,etc.) | Windows (Win7,Win8,etc.) | Windows (Win7,Win10,etc.) | Windows (Win7,Win10,etc.) |
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc |
| OR CN Series Parameters | |||
| Item | P2.84 | P3.47 | P3.91 |
| Pixel Pitch | 2.84mm | 3.47mm | 3.91mm |
| LED Type | SMD1415/SMD 1921 | SMD1921 | SMD1921 |
| Module Resolution | 88dots x 88dots | 72dots x 72dots | 64dots x 64dots |
| Driving Mode | 1/22scan | 1/18scan | 1/16scan |
| Module Pixels | 7,744dots | 5,184dots | 4,096dots |
| Module Size(mm) | 250 x 250 | 250 x 250 | 250 x 250 |
| Cabinet Size(mm) | 500 x 500/1000 | 500 x 500/1000 | 500 x 500/1000 |
| Cabinet Resolution(dots) | 176 x 176/352dots | 144 x 144/288dots | 128 x 128/256dots |
| Pixel Density(dots/m²) | 123,904 | 82,944 | 65,536 |
| Minimum Viewing Distance | ≥2.8m | ≥3.4m | ≥3.9m |
| Brightness | ≥4500nits | ≥4500nits | ≥4500nits |
| IP Grade | IP65 | IP65 | IP65 |
| Refresh Rate | 1920Hz~7,680Hz | 1920Hz~7,680Hz | 1920Hz~7,680Hz |
| Gray Scale | 12~16bits | 12~16bits | 12~16bits |
| Viewing Angle | 160°/160° | 160°/160° | 160°/160° |
| Maximum Power Consumption | 800(W/m²) | 800(W/m²) | 800(W/m²) |
| Average Power Consumption | 240(W/m²) | 240(W/m²) | 240(W/m²) |
| Inout Voltage | AC110V~AC220V 50Hz/60Hz | AC110V~AC220V 50Hz/60Hz | AC110V~AC220V 50Hz/60Hz |
| Operating Temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
| Operating Humidity | 10%~90% | 10%~90% | 10%~90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel |
| Operating System | Windows (Win7,Win8,etc.) | Windows (Win7,Win10,etc.) | Windows (Win7,Win10,etc.) |
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc |
