LED Curtain Display-P10.4, P12.5, P15.6, P25, P31.2
| Item | P10.4 | P12.5 | P12.5 | P15.6 | P25 | P31.2 |
| Pixel Pitch | 10.416mm | 12.5mm | 12.5mm | 15.625mm | 25mm | 31.25mm |
| LED Type | SMD3535 | SMD3535 | DIP346 | DIP346 | DP346 | DIP346 |
| Driving Mode | Static | Static | Static | Static | Static | Staic |
| Module Resolution | 96dots × 2dots | 80dots × 2dots | 80dots × 2dots | 64dots x 1dots | 40dots x 1dots | 32dots x 1dots |
| Cabinet Size | 500mm × 1,000mm | 500mm × 1,000mm | 500mm × 1,000mm | 500mm × 1,000mm | 500mm x 1,000mm | 500mm ×1,000mm |
| Cabinet Resolution | 48dots × 96dots | 40dots × 80dots | 40dots × 80dots | 32dots × 64dots | 20dots × 40dots | 16dots × 32dots |
| Pixel Density | 9,216dots/m² | 6400dots/m² | 6400dots/m² | 4,096dots/m² | 1600dots/m² | 1,024dots/m² |
| Min.Viewing Distance | ≥10.4m | ≥12.5m | ≥12.5m | ≥16m | ≥25m | ≥31m |
| Transparency | 18% | 24.6%/18.4% | 18% | 30% | 54% | 60% |
| Brightness | 5500nits | 5500nits | 7000nits | 7000nits | 7000nits | 6000nits |
| IP Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz |
| Gray Scale | 13bits~16bits | 13bits~16bits | 13bits~16bits | 13bits~16bits | 13bits~16bits | 13bits~16bits |
| Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
| Max.Power Consumption | 560W/m² | 700W/m² | 450W/m² | 380W/m² | 380W/m² | 320W/m² |
| Average Power Consumption | 160W/m² | 210W/m² | 135W/m² | 110W/m² | 120W/m² | 90W/m² |
| Cabinet Weight | 22kg | 19.6kg | 19.6kg | 19kg | 14.4kg | 14kg |
| Input Voltage | AC110V~AC220V @50Hz/60Hz | |||||
| Operation Temperature | -20℃~65℃ | |||||
| Humidity-operating | 10%~90% | |||||
| Cabinet Material | Die-casting Aluminum | |||||
| System Operation | Windows (Win7 Win8,etc) | |||||
| Source compatibility | DM,HDM1.3,DP1.2,SDI,HDMI2.0,etc. | |||||
LED display C1 series is a media facade LED screen with high transmittance. Designed to make architecture more cutting-edge and attractive, the C1 series is integrated with the feature of the LED curtain. With high brightness and great transparency, this display tends to be used as over-dimensional, animated, illuminated advertising LED screens. It has been widely applied in places like Times Square, Las Vegas, and Hong Kong. The pixel pitches are P10.4, P12.5, P15.6, P25, P31.2.

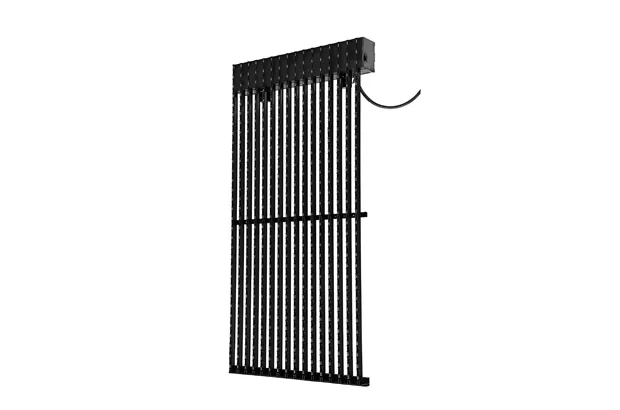

The structural design is very compact. It is very efficient and fast to maintain the cabinet from the front and the back. This LED display is frameless and slim, so it is much lighter than other LED screens. This feature will bring more convenience to maintenance and transportation.

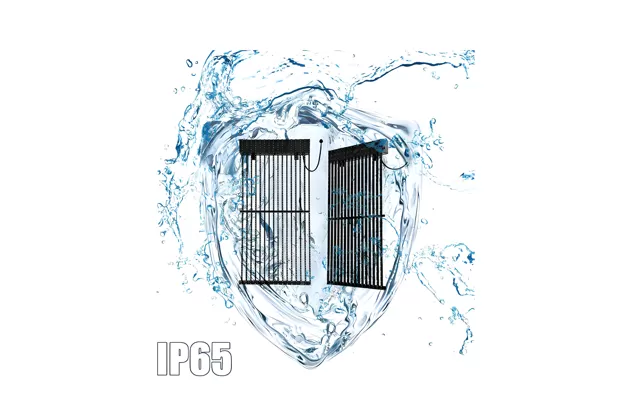

To make the LED display C1 series adjust to different environments, we enhance the resistance of the screen to dust and water. The protective grade has reached IP65.
The LED strip casing is aluminum material and the cabinet is wind-pass design. Because of its good features, the LED screen can function very well without the fan and AC.
This display is very decorative on the strength of its curtain shape and 60% transparency. After thousands of tests and improvements, the screen has reached the ideal value of each visual performance.
This curtain media facade can reach more than 7,000 units.
The outdoor LED billboard is full color and its refresh rate can reach 3840Hz.
The gray scale of this DOOH screen can reach 16 bits.
To fit every different scene, our product is made up of superior quality materials with a concise and strong structure. This product is usually used in:
Billboards;
Chain Stores;
Central Business Districts.
