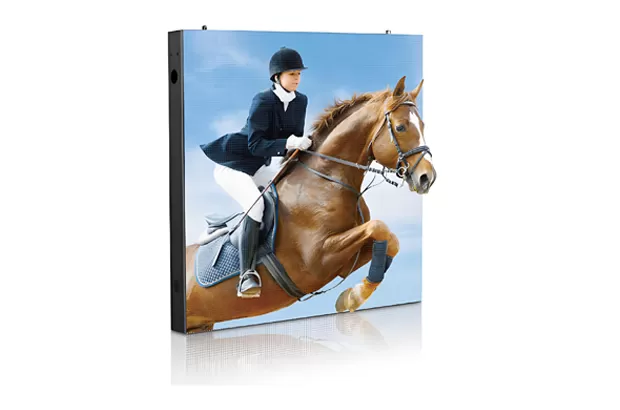

Indoor LED Display-P2.5 P3.07 P4 P5
S960 Series LED display is the latest Fixed and Rental LED display design and can be used for indoor . The Best Driver IC’s such as MBI5124,SUM16136 are used to optimize the display refresh rates and achieve the maximum performance the LED display.
| Indoor Fixed & Rental Installation Solution | |||||
| FI1 S & RI1 S Series | |||||
| Pixel Pitch | P2.5 | P3.07 | P4 | P5 | |
| LED Type | SMD2020 | SMD2020 | SMD2020 | SMD2020 | |
| Physical Density (dots/m²) | 160000 | 105625 | 62500 | 40000 | |
| Module Resolution | 128×64 | 104×52 | 80×40 | 64×32 | |
| Module Size(WxH) | 320×160 | 320×160 | 320×160 | 320×160 | |
| Cabinet Size(mm) | 960×960×108 | 960×960×108 | 960×960×108 | 960×960×108 | |
| Cabinet Resolution | 384×384 | 313×313 | 240×240 | 192×192 | |
| Cabinet Weight(kg) | 28 | 28 | 28 | 28 | |
| Maintenance Mode | Front/Back maintenance | Front/Back maintenance | Front/Back maintenance | Front/Back maintenance | |
| Cabinet Material | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | |
| Brightness | ≥5500cd | ≥5500cd | ≥5500cd | ≥5500cd | |
| Viewing angle(H/V) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | |
| The best viewing distance | ≥2.5m | ≥3.07m | ≥4m | ≥5m | |
| Drive Mode | Static,1/32 Scan | Static,1/26 Scan | Static,1/16 Scan | Static,1/16 Scan | |
| Grey Level | 12-16 bit | 12-16 bit | 12-16 bit | 12-16 bit | |
| Refresh Rate(Hz) | 3840 | 3840 | 3840 | 3840 | |
| Max Power Consumption(W/m²) | 900 | 900 | 900 | 900 | |
| Average Power Consumption(W/m²) | 100-200 | 100-200 | 100-200 | 100-200 | |
| IP Grade | IP43 | IP43 | IP43 | IP43 | |
| Input Power | AC90-264V,47-63 Hz | ||||
| Working Temperature/Humidity (℃/RH) | -20-60℃/10%-90% | ||||
| Storage Temperature/Humidity (℃/RH) | -20-60℃/10%-90% | ||||
S960 Series LED display is the latest Fixed and Rental LED display design and can be used for indoor . The Best Driver IC's such as MBI5124,SUM16136 are used to optimize the display refresh rates and achieve the maximum performance the LED display.
S960 Series LED display is 960mmx960mm standard size cabinet design. The Standard LED Display Cabinet Screw Holes and standardized to accept a number of LED modules in various pixel pitches .

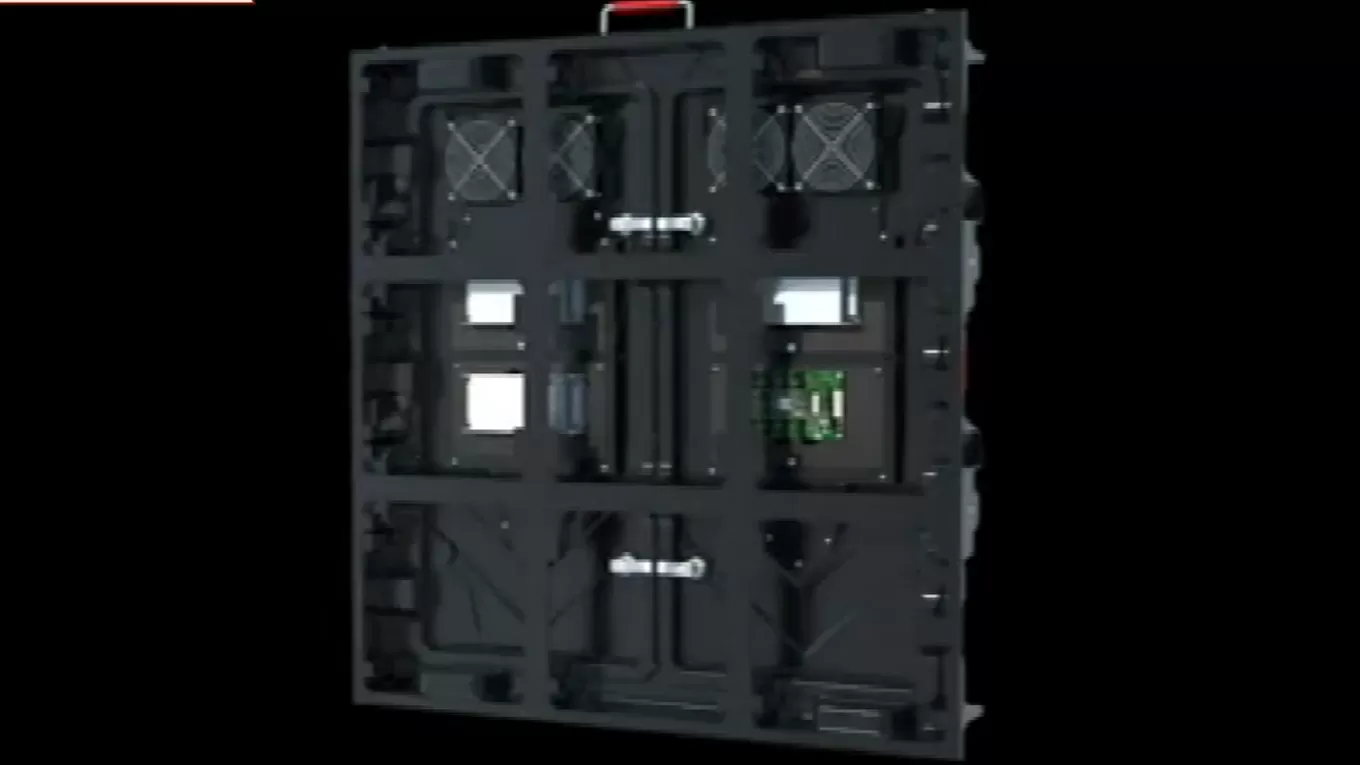

Unit S960 series Fixed and Rental LED display has an ultra thin cabinet design, with a total thickness of only 87mm . The Die-cast aluminum cabinet design is light and easy to transport and connects seamlessly.
Unit S960 Series LED display is a light weight display with quick lock system, extremely quick installation with seamless joints .
Equipped with a unique locking system, the position of each cabinet can be precisely adjusted from Six directions, left or right, up or down, front or back, so every cabinet can be positioned to the exact placement with accuracy to millimeter, presenting a ultra-flat and seamless cabinet alignment.
Unit S960 Series LED display weighs Only 26kg, saves on installation time and cost.
Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle .
To meet the different needs,the S960 Series Standard Size 960mm LED display provides 4 pixel pitches for indoor application, each pixel pitch size is320×160mm . the cabinet size is 960×960mm .
Indoor series include P2.5mm, P3.07mm, P4mm, P5mm.
