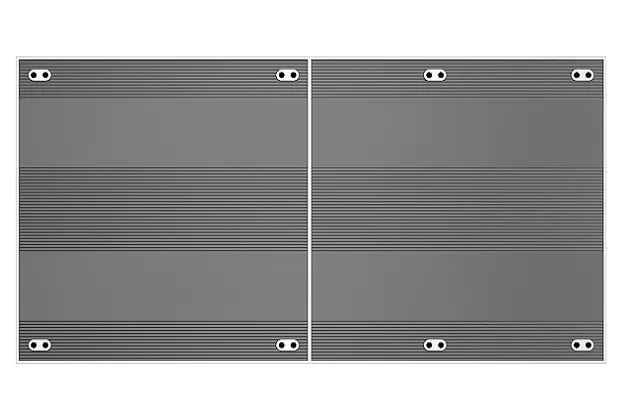

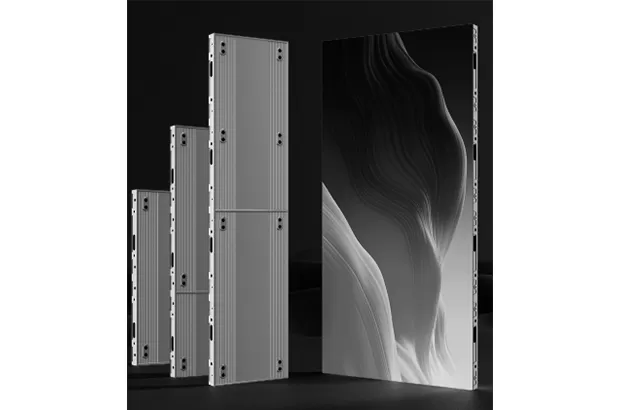

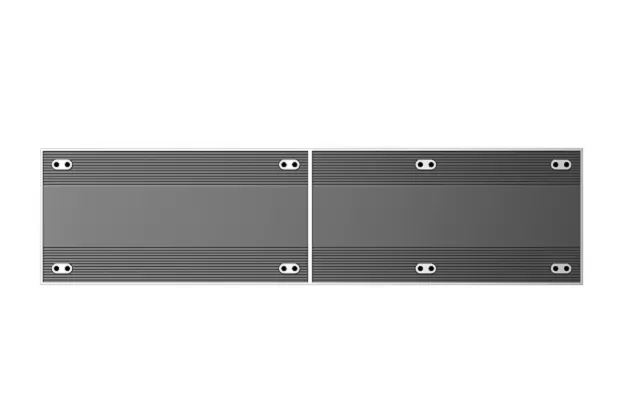

Die-Casting Aluminum Design:
| Pixel Pitch | P1.25 | P1.56 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 |
| LED Type | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Physical density(Dot/㎡) | 640000 | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Module resolution | 200*200 | 160*160 | 128*128 | 100*100 | 96*96 | 84*84 | 64*64 |
| Module dimension(mm) | 250*250 | ||||||
| Panel size(mm) | 500*250*33 /750*250*33 /1000*250*33 500*500*33 /750*500*33 /1000*500*33 | ||||||
| Module quantity(W*H) | 2*1 /3*1 /4*1 2*2 /3*2 /4*2 | ||||||
| Panel resolution | 400*200 /600*200 800*200 /400*400 600*400 /800*400 | 320*160 /480*160 640*160 /320*320 480*320 /640*320 | 256*128 /384*128 512*128 /256*256 384*256 /512*256 | 200*100 /300*100 400*100 /200*200 300*200 /400*200 | 192*96 /288*96 384*96 /192*192 288*192 /384*192 | 168*84 /252*84 336*84 /168*168 252*168 /336*168 | 128*64 /192*64 256*64 /128*128 192*128 /256*128 |
| Maintenance | Front access | ||||||
| Cabinet material | Die cast aluminum | ||||||
| Brightness(Nits) | 600 | 600 | 800 | 800 | 800 | 800 | 800 |
| Color temperature(K) | 5000-12000 Optional | ||||||
| Viewing angle(V/H) | 160°/160° | ||||||
| Frame frequency | 50/60 | ||||||
| Drive mode | 1/50 Scan | 1/40 Scan | 1/32 Scan | 1/25Scan | 1/32 Scan | 1/28 Scan | 1/16 Scan |
| Gray level(bit) | 14/16 Optional | ||||||
| Refresh rate(Hz) | 3840 | ||||||
| Max.power consumption(W/㎡) | 350 | ||||||
| Avg.power consumption(W/㎡) | 100-200 | ||||||
| Protection level | IP31 | ||||||
