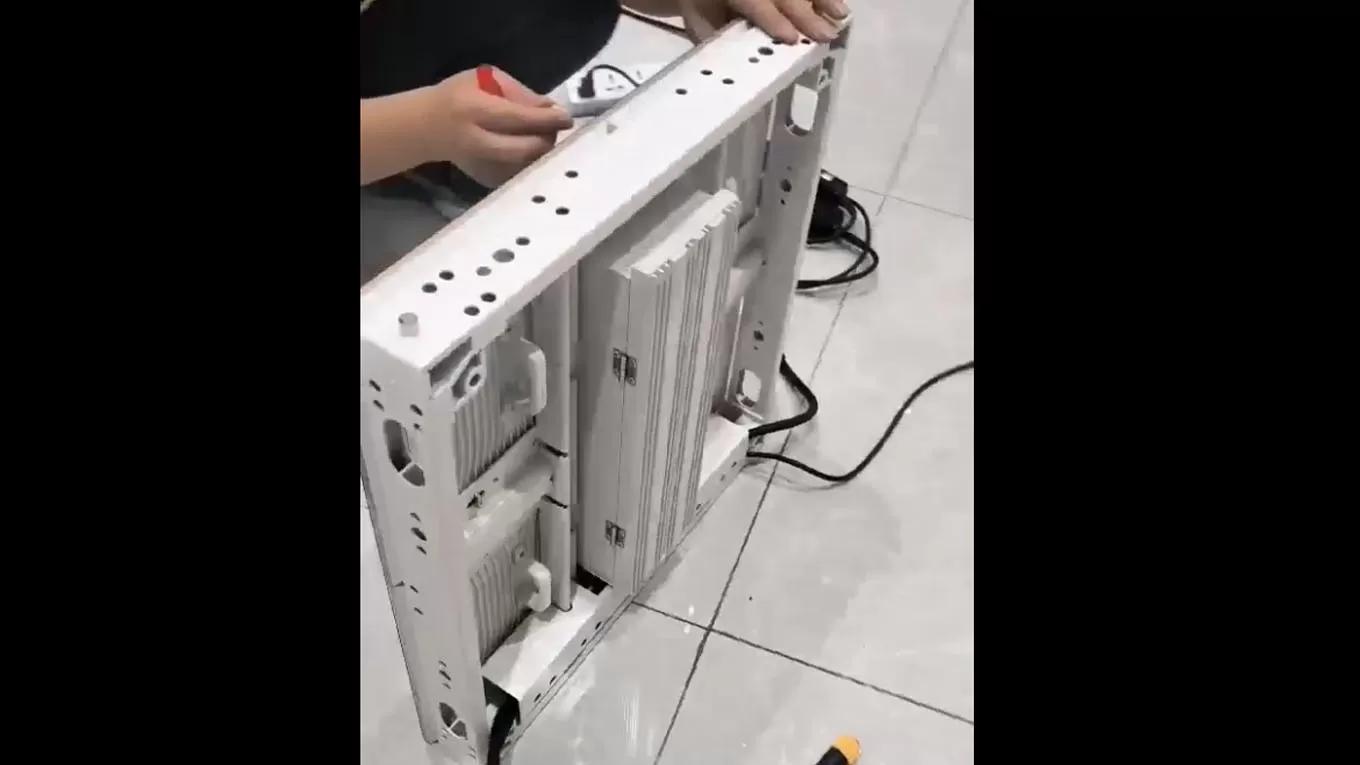

Quick Installation & Removal: The modules can be rapidly assembled and disassembled using a hex key, ensuring efficient operation. Featuring an aluminum base shell, they deliver superior heat dissipation and waterproof perfomance.
| Parameters | |||||
| Model Number | P4.44 | P5.71 | P6.67 | P8 | P10 |
| Physical Pitch | 4.44mm | 5.71mm | 6.67mm | 8mm | 10mm |
| Package Mode | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Physical Density | 50625dots/㎡ | 30625 dots/㎡ | 22500dots/㎡ | 15625dots/㎡ | 10000dots/㎡ |
| Module Size | 320*320mm | ||||
| Pixel Resolution | 72*72=5184dots | 56*56=3136dots | 48*48=2304dots | 40*40=1600dots | 32*32=1024dots |
| Module Thickness | 23mm | ||||
| Weight | 1.73kg | ||||
| Max Power | 80W | ||||
| Scan Mode | 9S | 7S | 6S | 5S | 2S |

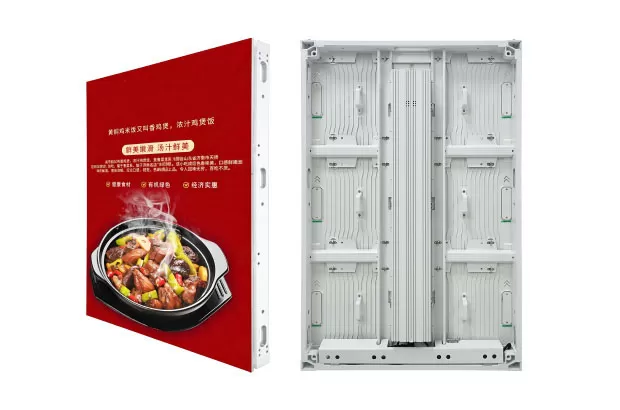

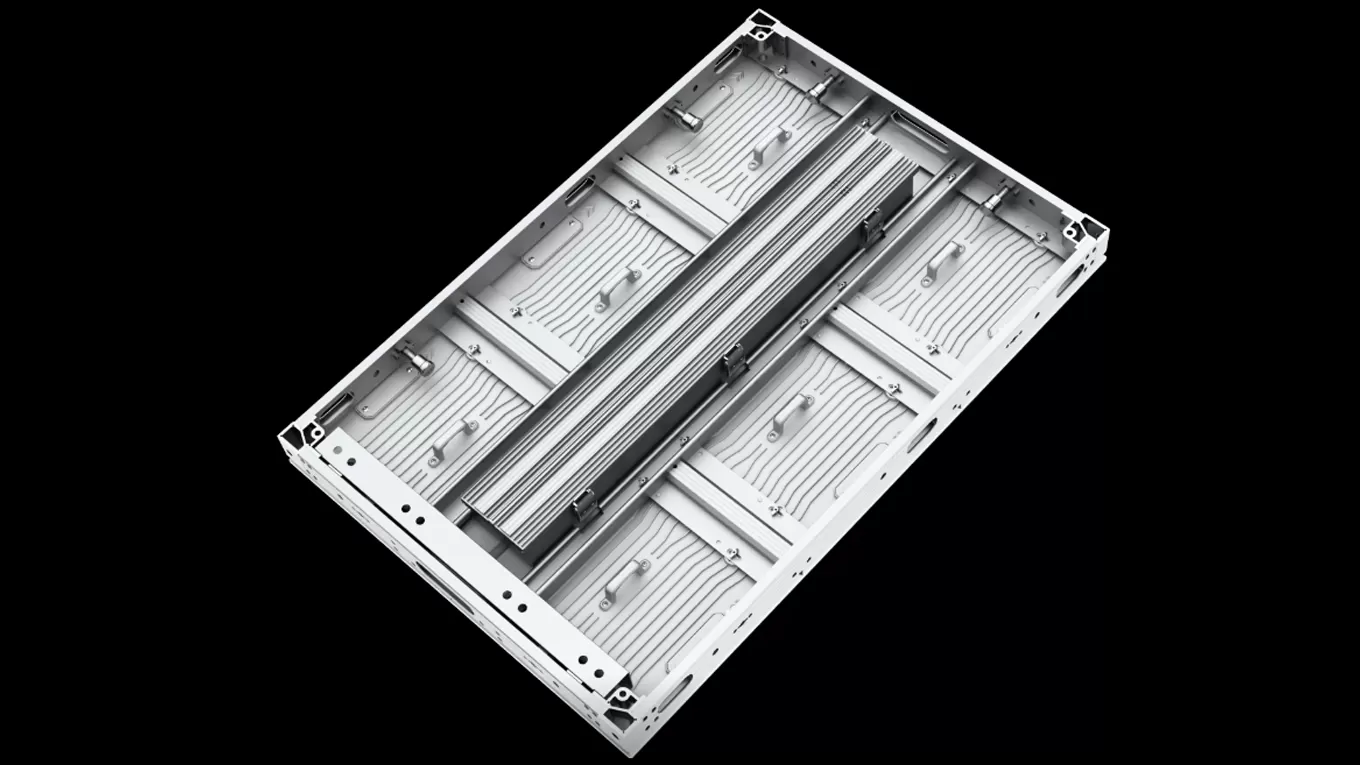

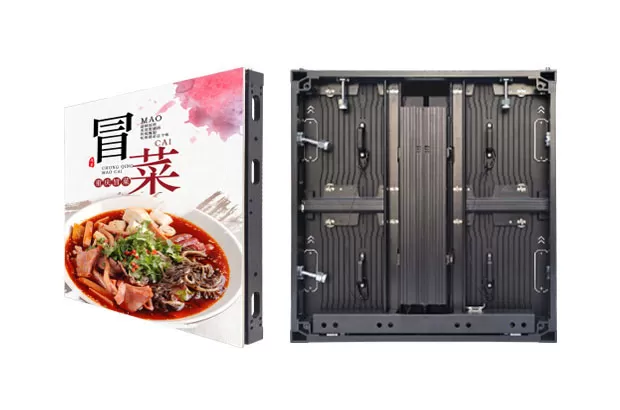

| Match Cabinet | 640*960*74mm | ||||
| Cabinet Weight | 18.5kg | ||||
| Pixel Per Cabinet | 144*216=31104dots | 112*168= 18816dots | 96*144= 13824dots | 80*120=9600dots | 64*96=6144dots |
| Number Of Cabinet Modules | 6pcs | ||||
| Recommended Viewing | 4-100m | 6-100m | 7-100m | 8-100m | 10-100m |
| Module Base Shell Material | Aluminum Base Shell | ||||
| Rate Refresh | 3840Hz-7680Hz | ||||
| Pixel Configuration | 1R1G1B | ||||
| Brightness Of White Balance | ≥5000cd/㎡ | ≥6500cd/㎡ | ≥6000cd/㎡ | ≥6000cd/㎡ | ≥6000cd/㎡ |
| Grayscale Level | 12bit-16bit | ||||
| Change frame frequency | 60Hz | ||||
| Number Of Power Supplies In The Cabinet | 1pcs | ||||
| Power Supply | 5V100A*1PCS | ||||
| Average Power Consumption | 265W/㎡ | ||||
| Max. Power Consumption | 800W/㎡ | ||||
| Protection Level | IP65 | ||||
| Fire resistance rating | 5VB | ||||
| Module Working Voltage | DC 5V | ||||
| Operating | -20 ~ +50℃ | ||||
| Life Time | >1000000h | ||||
| The Rate | <0.0001 | ||||
| MBTF | >5000h | ||||
| Maintenance Mode | Full Front/Rear Maintenance | ||||
| Best Viewing Angle | H:140° ；V:140° | H:140° ；V:140° | H:140° ；V:140° | H:120° ；V:120° | H:120° ；V:120° |
| Cabinet Matching Module Model | P4.44/P5.71/P6.67/P8/P10 | ||||
| Input Voltage | 220V；AC±10% | ||||
| Evenness | ≤ 0.5mm | ||||
| Working Voltage | 220V；AC±10% | ||||
| CPU | I5 or above I5 | ||||
| Operation System | WIN98/2000/NT/XP/WIN7/WIN8/WIN9/WIN10/WIN11 | ||||
| Control Method | Synchronization | ||||
| Driving IC | PWM | ||||
