500N Series (P1.9, P2.6, P2.9, P3.9) (500x500mm)

Name: 500N Series (P1.9, P2.6, P2.9, P3.9)
Brand: Shenzhen KMTEKLED Photoelectricity Co.,LTD.
Availability: InStock

Radian led display screen-P1.9,P2.6,P2.9,P3.9

Case Studies

Specifications

Features

500N Series (P1.9, P2.6, P2.9, P3.9) Case Studies

500N Series (P1.9, P2.6, P2.9, P3.9)(500x500mm) Video

500N Series (P1.9,P2.6,P2.9,P3.9) Specifications

500 N Parameters
Item	P1.9 (Indoor)	P2.6 (Indoor)	P2.9 (Indoor)	P3.9 (Indoor)	P3.9 (Outdoor)
Pixel Pitch	1.953mm	2.604mm	2.976mm	3.91mm	3.91mm
LED Type	SMD1515	SMD1515	SMD2020	SMD2020	SMD1921
Module Resolution	128dots x 128dots	96dots x 96dots	84dots x 84dots	64dots x 64dots	64dots x 64dots
Driving Mode	1/32 scan	1/32 scan	1/28 scan	1/16 scan	1/16 scan
Module Pixels	16,384dots	9,216dots	7,056dots	4,096dots	4,096dots
Module Size(mm)	250 x 250	250 x 250	250 x 250	250 x 250	250 x 250
Cabinet Size(mm)	500 x 500	500 x 500	500 x 500	500 x 500	500 x 500
Cabinet Resolution(dots)	258 x 258dots	192 x 192dots	168 x 168dots	128 x 128dots	128 x 128dots
Pixel Density(dots/m²)	282,144	147,456	112,896	65,536	65,536
Minimum Viewing Distance	≥1.9m	≥2.6m	≥2.9m	≥3.9m	≥3.9m
Brightness	600~800nits	600~800nits	600~800nits	600~800nits	≥4500nits
IP Grade	IP43	IP43	IP43	IP43	IP65
Refresh Rate	1920Hz~7,680Hz	1920Hz~7,680Hz	1920Hz~7,680Hz	1920Hz~7,680Hz	1920Hz~7,680Hz
Gray Scale	12~16bits	12~16bits	12~16bits	12~16bits	12~16bits
Viewing Angle	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Maximum Power Consumption	800(W/m²)	800(W/m²)	800(W/m²)	800(W/m²)	800(W/m²)
Average Power Consumption	240(W/m²)	240(W/m²)	240(W/m²)	240(W/m²)	240(W/m²)
Inout Voltage	AC110V~AC220V	AC110V~AC220V	AC110V~AC220V	AC110V~AC220V	AC110V~AC220V
Inout Voltage	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz
Operating Temperature	-20℃~60℃	-20℃~60℃	-20℃~60℃	-20℃~60℃	-20℃~60℃
Operating Humidity	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	7.5kg/panel	7.5kg/panel	7.5kg/panel	7.5kg/panel	7.5kg/panel
Operating System	Windows (Win7,Win8,etc.)	Windows (Win7,Win8,etc.)	Windows (Win7,Win10,etc.)	Windows (Win7,Win10,etc.)	Windows (Win7,Win10,etc.)
Signal Source Compatibility	DVI,HDMI1.3,DP1.2,	DVI,HDMI1.3,DP1.2,	DVI,HDMI1.3,DP1.2,	DVI,HDMI1.3,DP1.2,	DVI,HDMI1.3,DP1.2,
Signal Source Compatibility	SDI,HDMI2.0,etc	SDI,HDMI2.0,etc	SDI,HDMI2.0,etc	SDI,HDMI2.0,etc	SDI,HDMI2.0,etc

500N Series (P1.9, P2.6, P2.9, P3.9) Detailed Information and Features

500N Radian Series -P1.9 P2.6 P2.9 P3.9

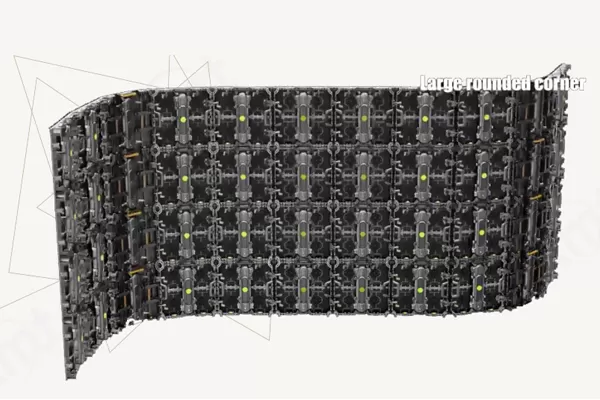

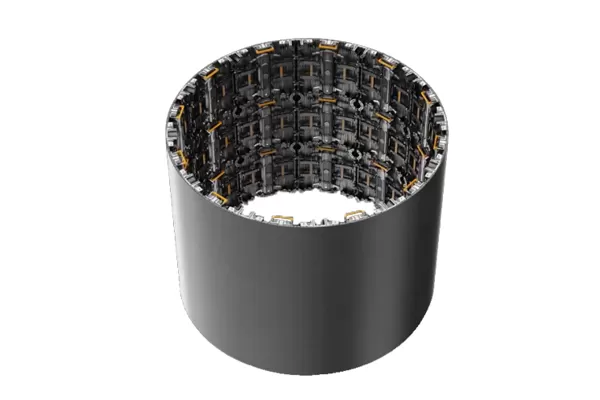

500N radians series, let rent LED display screen at will, can be spelled into M type, A type, Q type, S type and other changing shapes. Make LED display screen more wonderful.
