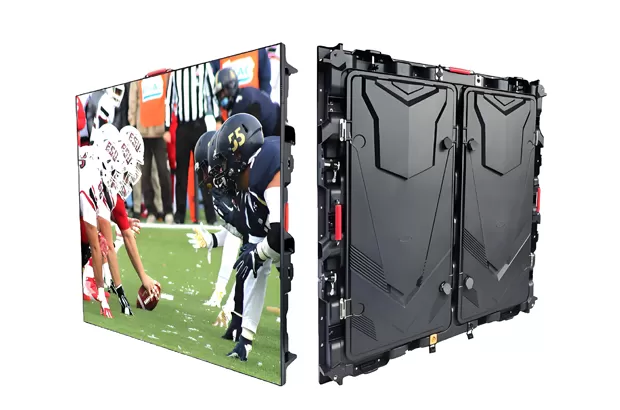

Perimeter LED Screen for Stadium-P2.5, P3.076, P4,P5,P6.67, P8, P10 (960×960mm)
| Sport Stadium SS1 Series | ||||||||
| Pixel Pitch | P2.5 | P3.076 | P3.33 | P4 | P5 | P6.67 | P8 | P10 |
| LED Type | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Physical Density (dots/m²) | 160000 | 105625 | 62500 | 40000 | 22500 | 15625 | 10000 | |
| Module Resolution | 128×64 | 104×52 | 96×48 | 80×40 | 64×32 | 48×24 | 40×20 | 32×16 |
| Module Size(WxH) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Cabinet Size(mm) | 960×960×108 | 960×960×108 | 960×960×108 | 960×960×108 | 960×960×108 | 960×960×108 | 960×960×108 | 960×960×108 |
| Cabinet Resolution | 384×384 | 312×312 | 288×288 | 240×240 | 192×192 | 144×144 | 120×120 | 96×96 |
| Cabinet Weight(kg) | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 | 28.0 |
| Maintenance Mode | Back maintenance | Back maintenance | Back maintenance | Back maintenance | Back maintenance | Back maintenance | Back maintenance | Back maintenance |
| Cabinet Material | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Brightness | ≥5000cd | ≥5500cd | ≥5500cd | ≥5000cd | ≥5500cd | ≥5500cd | ≥5500cd | ≥5500cd |
| Viewing angle(H/V) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| The best viewing distance | ≥2.5m | ≥3.076m | ≥3.33m | ≥4m | ≥5m | ≥6.6m | ≥8m | ≥10m |
| Drive Mode | Static,1/16 Scan | Static,1/13 Scan | Static,1/12 Scan | Static,1/10 Scan | Static,1/8 Scan | Static,1/4 Scan | Static,1/2 Scan | Static,1/2 Scan |
| Grey Level | 12-16 bit | 12-16 bit | 12-16 bit | 12-16 bit | 12-16 bit | 12-16 bit | 12-16 bit | 12-16 bit |
| Refresh Rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Max Power Consumption(W/m²) | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 |
| Average Power Consumption(W/m²) | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
| IP Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP 65 | IP65 | IP65 |
| Input Power | AC90-264V,47-63 Hz | |||||||
| Working Temperature/Humidity (℃/RH) | -20-60℃/10%-90% | |||||||
| Storage Temperature/Humidity (℃/RH) | -20-60℃/10%-90% | |||||||
The main difference between perimeter led screen and the other series
is SS1 series has soft plastic mask to protect the players from injury when they hit the screen in the stadium by accident.

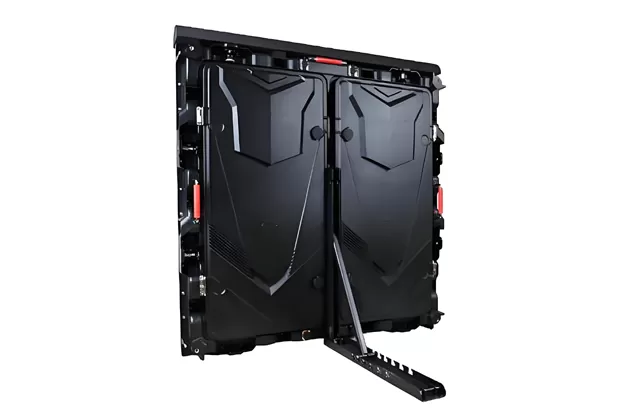

It has a back supporting stand for adjusting the screen to different viewing angle.
Since we use high-quality SMD LED and excellent PCB design, the screen can bring you the HD picture performance indoors or outdoors. The pixel pitches are P6.6, P8 and P10.
High Brightness: Up to 10,000nits
Wide Viewing Angle: Up to 160 degrees
Gray Scale: Up to 16 bits
SS1 series adopts high quality conformal coating, so the component is effectively moisture-proof and dust-proof.
Therefore, the screen can be used in severe indoor and outdoor environment.
Our perimeter LED screen’s brightness is up to 5500nits even higher.
The Product Passed All CertificationsOur products have been certified by CE (including EMC & LVD), RoHS, ETL, FCC, CB, IECEE， KC，PSE, etc.
Perimeter led screen can be also used as a scoreboard in the stadium.
You can clearly see what is on the screen at various angles.
The high-precision die-casting aluminum cabinet is adopted. Compared with the traditional one, perimeter led screen's cabinet is quicker, and it has better splicing effect.
UEFA StandardOur perimeter LED screen meets the UEFA standard, and we have sold many perimeter screens to different European stadiums.
The viewing angle of our sports LED display can be up to 160°. High Refresh RateWith the high refresh rate of 3840Hz, the visual effect is excellent when we running the videos or images.
In order to avoid black-out screen during the events, we can provide signal back solution.
When one of the signal cables breaks down, the screen is still able to display the live-feed or advertising content. Meanwhile, backup power supply is also feasible. When the power supply gets failed, the screen won't appear black.
Normally the width of the perimeter display is very long and the horizontal resolution is way over the limit of the monitor 3840dots, so the screen will be displayed in several separate windows. We have solution to make the screen to display a complete image even if the pixels more than 30k or even more.
On the basis of its superior performance, unique design, the perimeter led screen can be used indoors and outdoors.
It is always used in the stadium as:
Perimeter Banner Screen;
Score Board;
Live Feed Video Screen;
