Outdoor Rental LED Display-P2.9,P3.9, P4.8, & P5.9
| Item | P2.9 | P3.9 | P4.8 | P5.9 |
| Pixel Pitch | 2.976mm | 3.906mm | 4.807mm | 5.952 |
| LED Type | SMD1921 | SMD1921 | SMD1921 | SMD2727 |
| Module Resolution | 84dots x 84dots | 64dots x 64dots | 52dots x 52dots | 42dots x 42dots |
| Driving Mode | 1/12 scan | 1/8 scan | 1/13 scan | 1/7 scan |
| Module Pixels | 7,056dots | 4,096dots | 2,704dots | 1,764dots |
| Module Size(mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Cabinet Size(mm) | 500 x 500 or 500 x 1000 | 500 x 500 or 500 x 1000 | 500 x 500 or 500 x 1000 | 500 x 500 or 500 x 1000 |
| Cabinet Resolution(dots) | 168dots x 168dots or 168dots x 336dots | 128dots x 128dots or 128dots x 256dots | 104dots x 104dots or 104dots x 208dots | 84dots x 84dots or 84dots x 168dots |
| Pixel Density(dots/m²) | 112,896 | 65,536 | 43,264 | 28,224 |
| Minimum Viewing Distance | ≥2.9m | ≥3.9m | ≥4.8m | ≥5.9m |
| Brightness | ≥4,000nits | ≥4,500nits | ≥4,500nits | ≥4,500nits |
| IP Grade | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate | 1920Hz~3840Hz | 1920Hz~3840Hz | 1920Hz~3840Hz | 1920Hz~3840Hz |
| Gray Scale | 13bits~24bits | 13bits~24bits | 13bits~24bits | 13bits~24bits |
| Viewing Angle | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Maximum Power Consumption | 800(W/m²) | 800(W/m²) | 800(W/m²) | 800(W/m²) |
| Average Power Consumption | 230(W/m²) | 230(W/m²) | 230(W/m²) | 230(W/m²) |
| Inout Voltage | AC110V~AC220V @50Hz/60Hz | AC110V~AC220V @50Hz/60Hz | AC110V~AC220V @50Hz/60Hz | AC110V~AC220V @50Hz/60Hz |
| Operating Temperature | -20℃~65℃ | -20℃~65℃ | -20℃~65℃ | -20℃~65℃ |
| Operating Humidity | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel |
| Operating System | Windows (Win7,Win8,etc.) | Windows (Win7,Win8,etc.) | Windows (Win7,Win8,etc.) | Windows (Win7,Win8,etc.) |
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc |

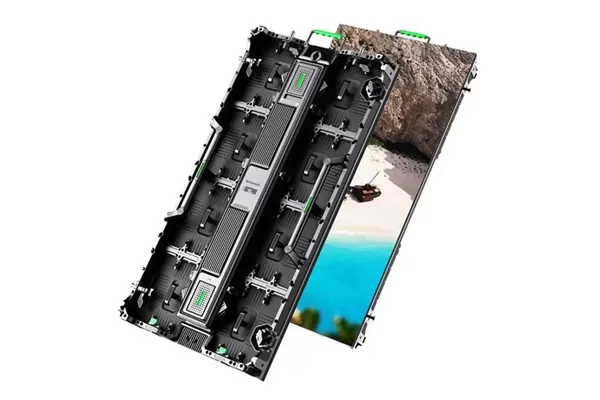

Outdoor rental LED screen aims at different kinds of outdoor events. The pixel pitches areP2.9, P3.9, P4.8 and P5.9. Multiple ways of protection effectively protect the LED module from damage.
Fast locks for tighter assembly with no gap.
Anti-collision protectors of the cabinet protect the modules and cabinet. Aluminum makes the cabinet dissipate heat greatly for outdoor applications.
The cabinet material is aluminum, which is stronger than regular steel material. Meanwhile, the cabinet is lighter than the steel cabinet, so installation and transportation are easier.
Moreover, we have utilized the high-quality PCB in the modules. Therefore, the LCD screen works more stably than similar outdoor rental products from other factories.

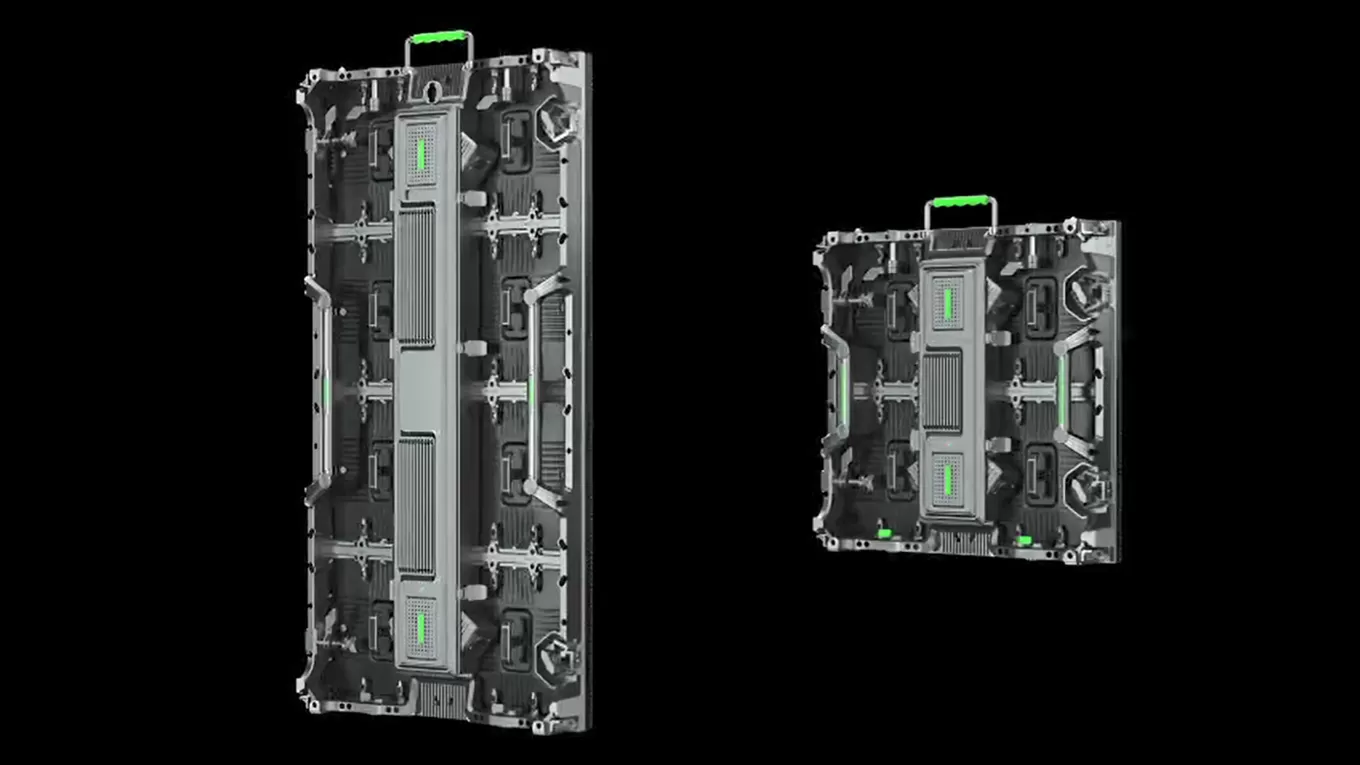

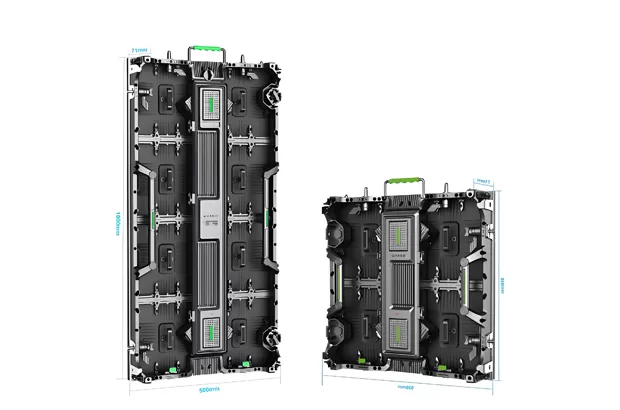

There are two choices for the cabinet:
500*500mm
500*1000mm
To meet the requirements of customers in different application scenarios, 2 cabinet sizes are available.
The weight of the cabinet is 9kgs for 500mmx 500mmcabinet and 14kgs for 500mmx 1000mm cabinet, which makes installation flexible during the event.

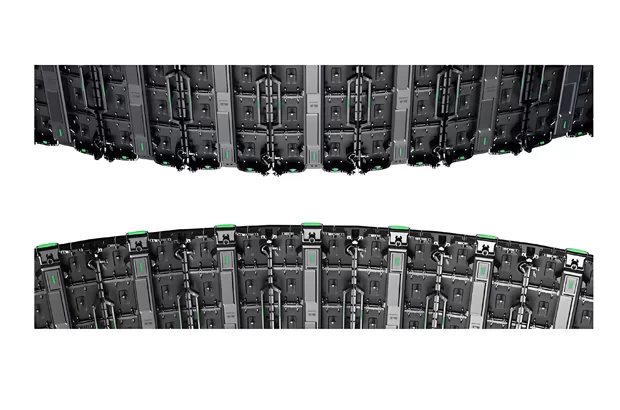

The screen can be any shape, for example, round shape, flat shape, which enables more possibilities of your stage design.
The brightness of the outdoor display is 4,500nits ~6,000nits, which enables the screen to have very good clarity in direct sunlight.
Meanwhile, the cabinet also has very good heat dissipation, so the performance of the LED videoscreen is very reliable.

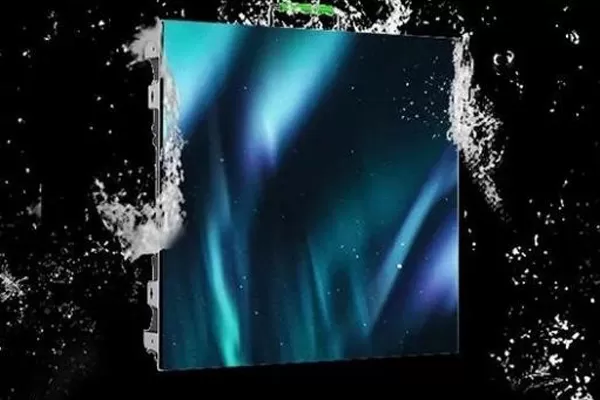

The LED big screen adopts the automatic glue filling machine process, so it will effectively protect it from water and dust. High lP Rating(lP65)ensures great outputs in every condition.
With high quality material and great design, the screen looks extraordinary. Meanwhile, black outdoor LED technology is optional, and the outdoor rental LED screen stands out with a peerless visual performance.
To fit every different scenes, outdoor full color is made up of superior quality materials with the concise and strong cabinet. This product is usually used in:
Cinemas;
Stages;
Advertisements;
Sports Events.
