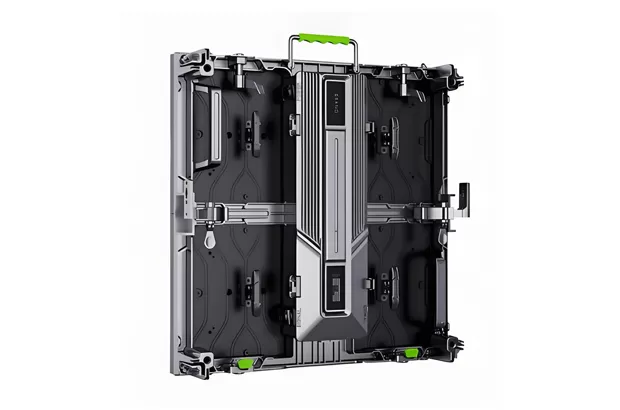

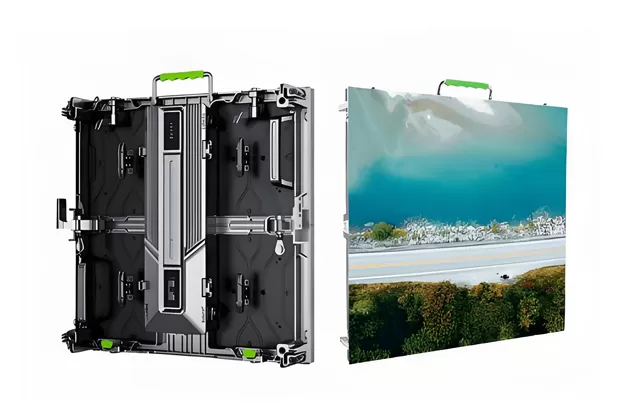

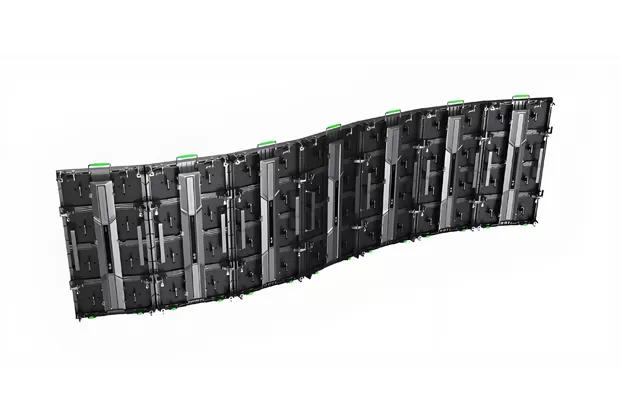

OR1 Series
Outdoor Rental LED Display-P3.9,P4.8,P5.9
| Item | P3.9 | P4.8 | P5.9 |
| Pixel Pitch | 3.906mm | 4.807mm | 5.952mm |
| LED Type | SMD1921 | SMD1921 | SMD2727 |
| Module Resolution | 64x64 dots | 52x52 dots | 42x42 dots |
| Driving Mode | 1/16 scan | 1/13 scan | 1/7 scan |
| Module Pixels | 4,096 dots | 2,704 dots | 1,764 dots |
| Module Size | 250x250mm | 250x250mm | 250x250mm |
| Cabinet Size | 500x500mm or 500x1000mm | 500x500mm or 500x1000mm | 500x500mm or 500x1000mm |
| Cabinet Resolution | 128x128 or 128x256 | 104x104 or 104x208 | 84x84 or 84x168 |
| Pixel Density | 65,536/m² | 43,264/m² | 28,224/m² |
| Minimum Viewing Distance | ≥3.9m | ≥4.8m | ≥5.9m |
| Brightness | ≥4,500nits | ≥4,500nits | ≥4,500nits |
| IP Grade | IP65 | IP65 | IP65 |
| Refresh Rate | 1,920-3,840Hz | 1,920-3,840Hz | 1,920-3,840Hz |
| Gray Scale | 13-24bit | 13-24bit | 13-24bit |
| Viewing Angle | H/V:160° | H/V:160° | H/V:160° |
| Maximum Power Consumption | 800W/m² | 800W/m² | 800W/m² |
| Average Power Consumption | 230W/m² | 230W/m² | 230W/m² |
| Input Voltage | AC110-220V 50/60Hz | AC110-220V 50/60Hz | AC110-220V 50/60Hz |
| Operating Temperature | -20°C~65°C | -20°C~65°C | -20°C~65°C |
| Operating Humidity | 10%~90% | 10%~90% | 10%~90% |
| Cabinet Material | Die-cast Alluminum | Die-cast Alluminum | Die-cast Alluminum |
| Cabinet Weight | 7.5kg/12.5kg | 7.5kg/12.5kg | 7.5kg/12.5kg |
| Operating System | Windows | Windows | Windows |
| Signal Source Compatibility | DVI/HDMI/DP/SDI, etc. | DVI/HDMI/DP/SDI etc. | DVI/HDMI/DP/SDI etc. |
