Outdoor LED Display for Rental-P2.6,P2.9,P3.91,P4.81
500/1000
| OR1 K Series Parameters | ||||
| Item | P2.6 | P2.9 | P3.91 | P4.81 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| LED Type | SMD1415 | SMD1415/SMD 1921 | SMD1921 | SMD1921 |
| Module Resolution | 96dots x 96dots | 84dots x 84dots | 64dots x 64dots | 52dots x 52dots |
| Driving Mode | 1/24 scan | 1/21 scan | 1/16 scan | 1/13 scan |
| Module Pixels | 9,216dots | 7,056dots | 4,096dots | 2,704dots |
| Module Size(mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Cabinet Size(mm) | 500 x 500/1000 | 500 x 500/1000 | 500 x 500/1000 | 500 x 500/1000 |
| Cabinet Resolution(dots) | 192 x 192/384dots | 168 x 168/336dots | 128 x 128/256dots | 104 x 104/208dots |
| Pixel Density(dots/m²) | 147,456 | 112,896 | 65,536 | 43,264 |
| Minimum Viewing Distance | ≥2.6m | ≥2.9m | ≥3.9m | ≥4.8m |
| Brightness | ≥4500nits | ≥4500nits | ≥4500nits | ≥4500nits |
| IP Grade | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate | 1920Hz~7,680Hz | 1920Hz~7,680Hz | 1920Hz~7,680Hz | 1920Hz~7,680Hz |
| Gray Scale | 12~16bits | 12~16bits | 12~16bits | 12~16bits |
| Viewing Angle | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Maximum Power Consumption | 800(W/m²) | 800(W/m²) | 800(W/m²) | 800(W/m²) |
| Average Power Consumption | 240(W/m²) | 240(W/m²) | 240(W/m²) | 240(W/m²) |
| Inout Voltage | AC110V~AC220V 50Hz/60Hz | AC110V~AC220V 50Hz/60Hz | AC110V~AC220V 50Hz/60Hz | AC110V~AC220V 50Hz/60Hz |
| Operating Temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
| Operating Humidity | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel |
| Operating System | Windows (Win7,Win8,etc.) | Windows (Win7,Win10,etc.) | Windows (Win7,Win10,etc.) | Windows (Win7,Win10,etc.) |
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc |

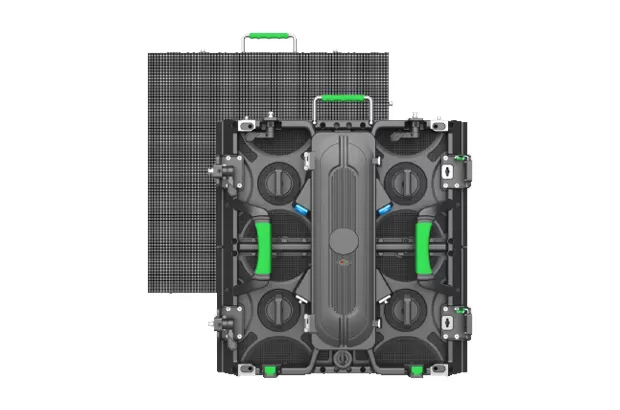

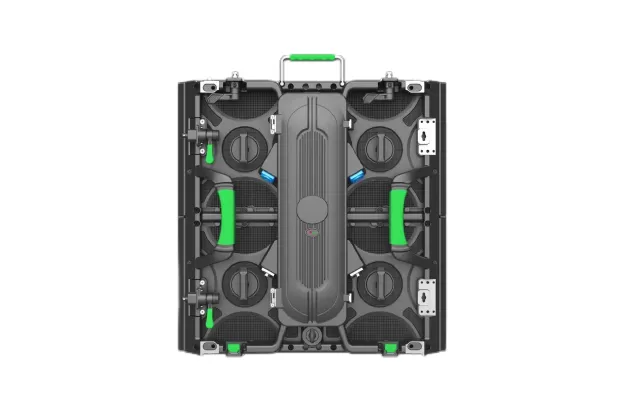

Handle on the top brings convenience. Protectors on the corner to protect the LEDs and cabinet. Fast lock for quick installation.

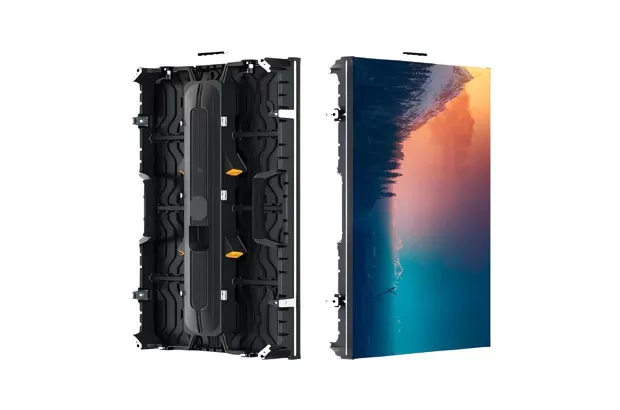

Two options: 500 * 500mm, 500 * 1000mm
As the cabinet uses die-cast aluminum material, the weight of the panel is only 7 kgs, and it has great heat dissipation.
Each cabinet corners are equipped with protectors, which can protect the cabinet and LEDs from damage caused by accidental collision.
The lock is very secure and strong. It can be designed to be curved to form a curved screen from -15° (convex) to +15° (concave).
With its excellent video performance, create an immersive and dynamic visual experience. Provide viewers with a dynamic and engaging visual experience.
Activity; Stages; Exhibition hall; Sports Events.
