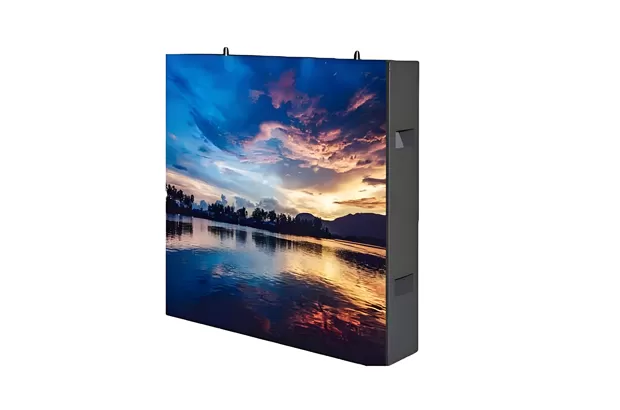

OA2 SERIES PRODUCT -SMD Outdoor LED Display-P1.9, P2.6, P3, P4, P6, P8, P10
| OA2 Parameters | |||||
| Item | P1.9 | P2.5 | P2.6 | P2.9 | P3 |
| Pixel Pitch | 1.953mm | 2.50mm | 2.604mm | 2.976mm | 3mm |
| LED Type | SMD1212 | SWD1515 | SMD1415 | SMD1415 | SMD1415 |
| Module Resolution | 128dots x 128dots | 128dots x 64dots | 96dots × 96dots | 84dots × 84dots | 64dots × 64dots |
| Driving Mode | 1/32 scan | 1/16 scan | 1/16 scan | 1/14 scan | 1/16 scan |
| Module Pixels | 16,384dots | 8,192dotg | 9,2166ots | 7,056dots | 4,096dots |
| Module Size(mm) | 250mm × 250mm | 320mm x 160mm | 250mm × 250mm | 250mm × 250mm | 192mm × 192mm |
| Cabinet Size(mm) | 500mm × 500mm | 960nm x 960mm | 500mm × 500mm | 500mm × 500mm | 960mm × 960mmm |
| Cabinet Resolution(dots) | 256dots × 256dots | 384dots x 384dots | 192dots × 192dots | 168dots × 168dots | 320dots × 320dots |
| Pixel Density(dots/m²) | 262,144dots/m² | 16,000dotg/m² | 147,456dots/m² | 112,896dots/m² | 111,111dots/m² |
| Minimum Viewing Distance | ≥1.9m | ≥2.5m | ≥2.6m | ≥2.9m | ≥3m |
| Brightness | 4,000nits (Black) | 4,000nits (Black) | 4,000nits (Black) | 4,000nits (Black) | 6,000nits (Black) |
| IP Grade | IP65 | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3840Hz | 1,920Hz~3,840Hz |
| Gray Scale | 13bis~24bits | 13bis~24bits | 13bis~24bits | 13bis~24bits | 13bis~24bits |
| Viewing Angle | H:160°/V160° | H:160°/V160° | H:160°/V160° | H:160°/V160° | H:160°/V160° |
| Maximum Power Consumption | 800W/m² | 800W/m² | 800W/m² | 800W/m² | 800W/m² |
| Average Power Consumption | 230W/m² | 230W/m² | 230W/m² | 230W/m² | 230W/m² |
| Inout Voltage | AC220V-AC110V @50Hz/60Hz | AC220V-AC110V @50Hz/60Hz | AC220V-AC110V @50Hz/60Hz | AC220V-AC110V @50Hz/60Hz | AC220V-AC110V @50Hz/60Hz |
| Operating Temperature | -20℃~65℃ | -20℃~65℃ | -20℃~65℃ | -20℃~65℃ | -20℃~65℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%~90% | 10%~90% | 10%~90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Iron / Aluminum |
| Cabinet Weight | 30kg/m² | 30kg/m² | 30kg/m² | 30kg/m² | 60kg/m² or 45kg/m² |
| Operating System | Windows (Win7,Win8,etc) | Windows (Win7,Win8,etc) | Windows (Win7,Win8,etc) | Windows (Win7,Win8,etc) | Windows (Win7,Win8,etc) |
| Signal Source Compatibility | DVI, HDMI1.3,DP1.2,SDI HDMI2.0,etc | DVI, HDMI1.3,DP1.2,SDI HDMI2.0,etc | DVI, HDMI1.3,DP1.2,SDI HDMI2.0,etc | DVI, HDMI1.3,DP1.2,SDI HDMI2.0,etc | DVI, HDMI1.3,DP1.2,SDI HDMI2.0,etc |
| OA2 Parameters | |||||
| Item | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch | 4mm | 5mm | 6mm | 8mm | 10mm |
| LED Type | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Resolution | 64dots x 32dots | 64dots x 32dots | 32dots x 32dots | 32dots x 16dots | 32dots x 16dots |
| Driving Mode | 1/8 scan | 1/8 scan | 1/8 scan | 1/4 scan | 1/2 scan |
| Module Pixels | 2,048dots | 2,048dots | 1,024dots | 512dots | 512dots |
| Module Size(mm) | 256mm x 128mm | 320mm x 160mm | 192mm x 192mm | 256mm x 128mm | 320mm x 160mm |
| Cabinet Size(mm) | 1,024mm x 1,024mmm | 960mm x 960mm | 1,152mm x 768mm | 1024mm x 768mm | 960mm x 960mm |
| Cabinet Resolution(dots) | 256dots x 256dots | 192dots x 192dots | 192dots x 128dots | 128dots x 96dots | 96dots x 96dots |
| Pixel Density(dots/m²) | 62,500dots/m² | 40,000dots/m² | 27,777dots/m² | 15,625dots/m² | 10,000dots/m² |
| Minimum Viewing Distance | ≥4m | ≥5m | ≥6m | ≥8m | ≥10m |
| Brightness | 6,000nits~7,000nits | 6,000nits～10,000nits | 6,000nits~10,000nits | 5,500nits~7,000nis | 6,000nits~10,000nits |
| IP Grade | IP65 | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz |
| Gray Scale | 13 bits~24bits | 13 bits~24bits | 13 bits~24bits | 13 bits~24bits | 13 bits~24bits |
| Viewing Angle | H:160°/V160° | H:160°/V160° | H:160°/V160° | H:160°/V160° | H:160°/V160° |
| Maximum Power Consumption | 800W/m² | 800W/m² | 800W/m² | 800W/m² | 800W/m² |
| Average Power Consumption | 230W/m² | 230W/m² | 230W/m² | 230W/m² | 230W/m² |
| Inout Voltage | AC220V-AC110V@50Hz / 60Hz | ||||
| Operating Temperature | -20℃~65℃ | ||||
| Operating Humidity | 10%~90% | ||||
| Cabinet Material | Iron/Aluminum | ||||
| Cabinet Weight | 60kg/m² or 45kg/m² | ||||
| Operating System | Windows (Win7,Win8,etc) | ||||
| Signal Source Compatibility | DVI, HDMI1.3,DP1.2,SDI HDMI2.0,etc | ||||
