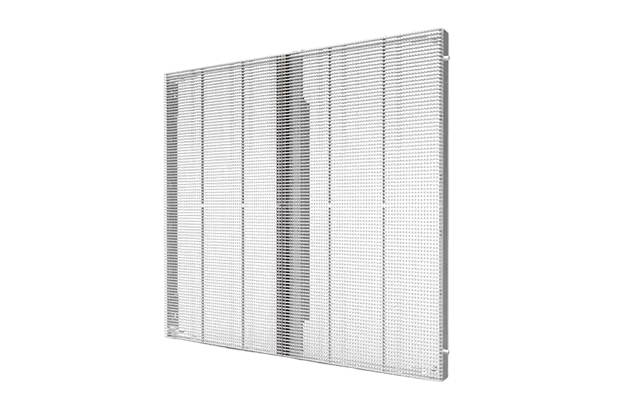

Indoor Transparent LED Display
Advantages:
High Transparency
High Brightness
Economical and Eco-friendly
Light and Slim
Standard Cabinet Design
Modular Design
| IT1 Series Parameters | |||||
| Item | P2.6-P5.2 | P2.8-P5.6 | P3.91-P7.81 | P3.96-P7.81 | P10.4 |
| Pixel Pitch | 2.6-5.2mm | 2.8-5.6mm | 3.91-7.81mm | 3.96-7.81 mm | 10.4mm |
| LED Type | SMD1415/SMD1515 | SMD1921 / SMD2020 | SMD1921 / SMD2020 | SMD1921 | SMD1921 |
| Module Resolution | 192dots × 24dots | 176dots × 22dots | 128dots × 16dots | 128dots × 16dots | 48dots × 12dots |
| Driving Mode | 1/12scan | 1/11scan | 1/32scan,1/16scan,1/8scan | 1/7scan | 1/2scan |
| Module Pixels | 4,608dots | 3,872dots | 2,048dots | 2,048dots | 576dots |
| Module Size(mm) | 500mm × 125mm | 500mm × 125mm | 500mm × 125mm | 500mm × 125mm | 500mm × 125mm |

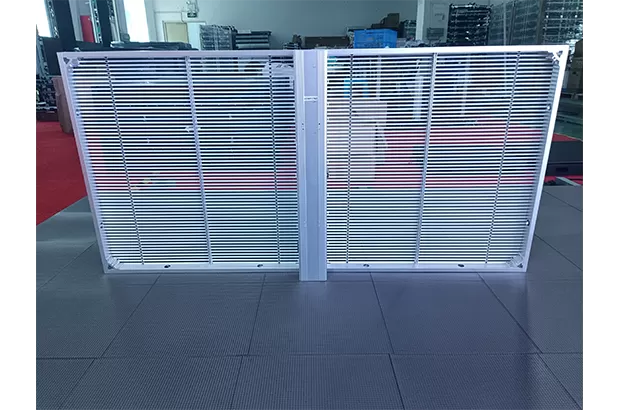

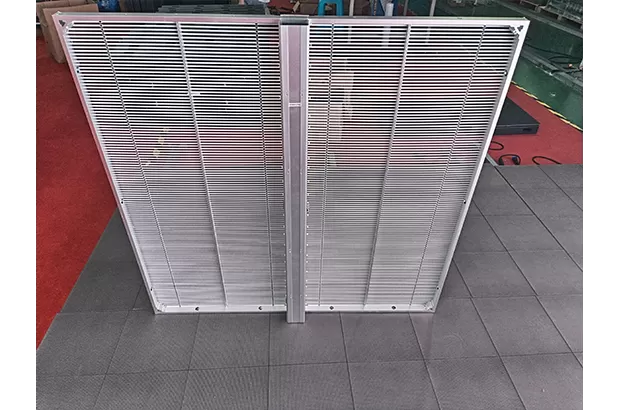

| Cabinet Size(mm) | 1000mm × 1000mm or 1000mm × 500mm | 1000mm × 1000mm or 1000mm × 500mm | 1000mm × 1000mm or 1000mm × 500mm | 1000mm × 1000mm or 1000mm × 500mm | 1000mm × 1000mm or 1000mm × 500mm |
| Cabinet Resolution(dots) | 384dots × 192dots | 352dots × 176dots | 256dots × 128dots | 252dots × 128dots | 96dots × 96dots |
| Pixel Density(dots/m²) | 73,728dots/m² | 61,952dots/m² | 32,768dots/m² | 32,256dots/m² | 9,216dots/m² |
| Minimum Viewing Distance | ≥2.6m | ≥2.8m | ≥3.91m | ≥3.96m | ≥10.4m |
| Transparency | 55% | 58% | ≥62% | 68% | 75% |
| Brightness | 650nits~800nits or 3000nits~4000nits | 800nits~1200nits or 3500nits~4200nits | 300nits~4500nits | 4800nits~5500nits | 4000nits~4500nits |
| IP Grade | IP43 | IP43 | IP43 | IP43 | IP43 |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Gray Scale | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits |
| Viewing Angle | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° |
| Maximum Power Consumption | 800W/m² | 800W/m² | 800W/m² | 800W/m² | 800W/m² |
| Average Power Consumption | 260W/m² | 260W/m² | 260W/m² | 260W/m² | 260W/m² |
| Inout Voltage | AC110V~AC220V@50Hz/60Hz | AC110V~AC220V@50Hz/60Hz | AC110V~AC220V@50Hz/60Hz | AC110V~AC220V@50Hz/60Hz | AC110V~AC220V@50Hz/60Hz |
| Operating Temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
| Operating Humidity | 10%～60% | 10%～60% | 10%～60% | 10%～60% | 10%～60% |
| Cabinet Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Cabinet Weight | 7kg/m² | 7kg/m² | 7kg/m² | 7kg/m² | 7kg/m² |
| Operating System | Windows (Win7,Win8,etc) | Windows (Win7,Win8,etc) | Windows (Win7,Win8,etc) | Windows (Win7,Win8,etc) | Windows (Win7,Win8,etc) |
| Signal Source Compatibility | DVI, HDMI1.3,DP1.2,SDI HDMI2.0,etc | DVI, HDMI1.3,DP1.2,SDI HDMI2.0,etc | DVI, HDMI1.3,DP1.2,SDI HDMI2.0,etc | DVI, HDMI1.3,DP1.2,SDI HDMI2.0,etc | DVI, HDMI1.3,DP1.2,SDI HDMI2.0,etc |
1.High Transparency
Transparency of our IT1 seriestransparent LED display is up to 75%, whichoffers a range of creative applications for thelive event and installation market.Indoor transparent LED screen isthe pixel pitch is P2.6-P5.2, P2.8-P5.6.P3.91-P7.81, P3.96-P7.81,P10.4
2. High Brightness
Its brightness of our transparent LED display products is up to Thousands nits. The display content will look very clear. Using its excellent video performance to capture the audience's attention and bring them unforgettable visual experience.
3.Economical and Eco-friendly
The power consumption is 1/3 lower than normal screen.
4.Light and Slim
80mm cabinet thickness and 7kgs weight make IT1 lighter and thinner than most of other transparent LED displays in the market.
5.Modular Design
The modular power box and PCB make repair easy and replacement of spare parts cost-effective. The module PCB helps to control the flatness of the screen compared with the side emitting LED PCB strip
6.Fast and Easy Installation
Our transparent LED display comes with a wide range of accessories; connection locks, transport flight cases and hanging options. The fast lock assembly contributes to efficient handing, transportation and ease of installation.
7.Flexibility
Owning to high flexibility of cabinet and high density of pixel pitch, units may be multi-angle folded to satisfy creative HD design.

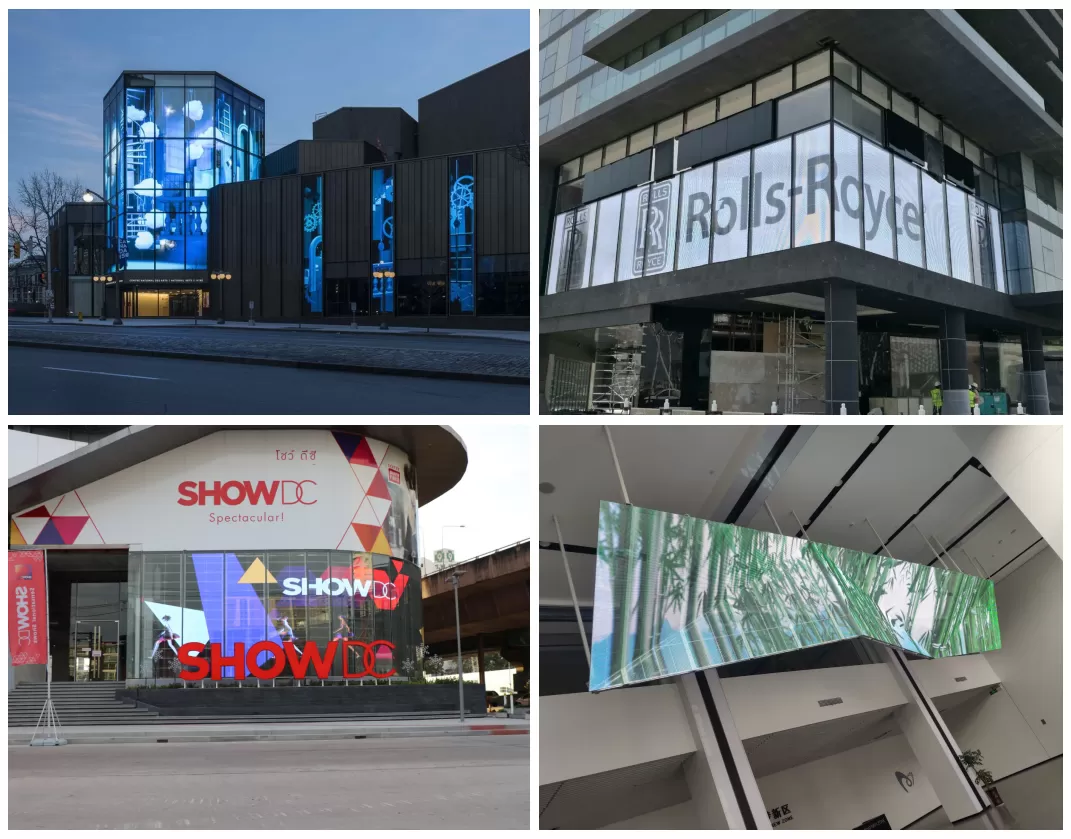

Transparent led display products are usually used in
Museums
Shopping malls
Exhibition events
Stage activities.
