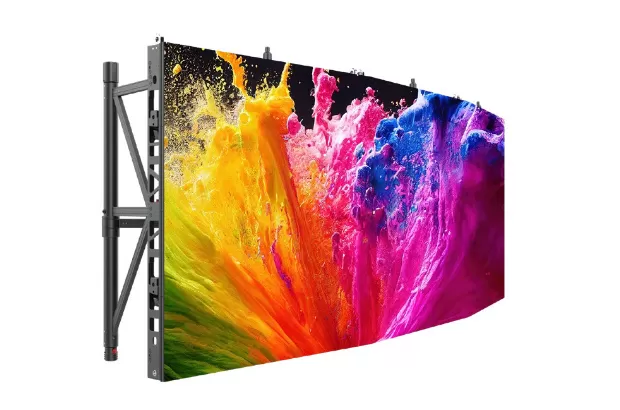

The Remarkable Outdoor and Indoor Live Events Solution. Integrated Foldable Wind-bracing System
| Pixel Pitch | P3.91 | P4.81 | P6.25 | P7.81 | P10.42 | ||
| （Common Cathode） | （Common Cathode） | （Common Cathode） | |||||
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | ||
| Physical Density (dots/m²) | 65536 | 43264 | 25600 | 16384 | 9216 | ||
| Module Resolution | 128×64 | 104×52 | 80×40 | 64×32 | 48×24 | ||
| Module Size(mm) | 500×250 | ||||||
| Cabinet Resolution | 256×256 | 208×208 | 160×160 | 128×128 | 96×96 | ||
| Cabinet Size(mm) | 1000mm x 1000mm (Hot Swap Design) | ||||||
| Cabinet Weight(kg) | 27.5kg(without ladder) | ||||||
| 34.5kg(with ladder) | |||||||
| Maintenance Mode | Front and Back maintenance | ||||||
| Cabinet Material | Profile cabinet | ||||||
| Brightness | 6000-6500cd | 6000-6500cd | 6500-7000cd | 6500-7000cd | 6500-7000cd | ||
| Color Temperature(K) | 1000-18500 Adjustable | 1000-18500 Adjustable | 1000-18500 Adjustable | 1000-18500 Adjustable | 1000-18500 Adjustable | ||
| Viewing angle(H/V) | 160°/160° | ||||||
| Grey Level | 16 bit | ||||||
| Contrast Ratio | 10000:1 | ||||||
| Frame Frequency | 50/60 | ||||||
| Refresh Rate(Hz) | 7680Hz | ||||||
| Drive Mode | 1/8 Scan | 1/13 Scan | 1/5 Scan | 1/4 Scan | 1/2 Scan | ||
| The best viewing distance | 4-100m | 4-100m | 6-150m | 8-150m | 10-200m | ||
| Max Power Consumption(W/m²) | 580-850 | 580-850 | ≥580 | ≥580 | ≥580 | ||
| Average Power Consumption(W/m²) | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | ||
| IP Grade | IP65 | ||||||
| Input Power | AC90-264V,47-63 Hz | ||||||
| Working Temperature/Humidity (℃/RH) | -20-60℃/10%-85% | ||||||
| Storage Temperature/Humidity (℃/RH) | -20-60℃/10%-85% | ||||||
The KMT ST Series is a reliable choice, ensuring your needs are met with utmost satisfaction designed to provide exceptional value for your touring, festival, and outdoor live events needs.
Its innovative engineering and high effciency make it an ideal and dependable choice for event organizers, AV rental companies, and production professionals who seek a high-quality LED panel with a great return on investment.

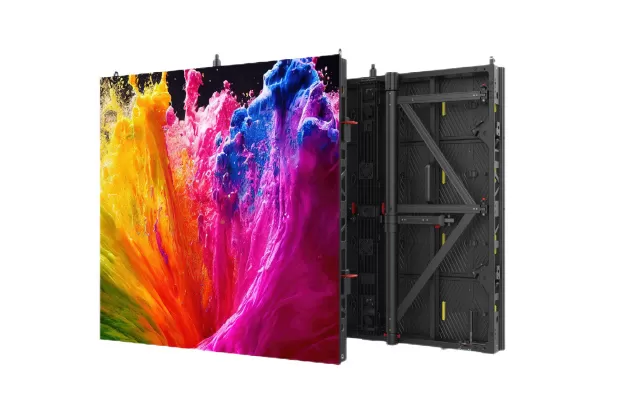

Maintenance is a breeze with the Vanish ST panels, featuring rear module service.
The integrated PSU and Hub unit streamline repair and spare part replacement.
The modular design further enhances cost-effective maintenance, parts can be easily replaced without having to discard the whole panel and sub-frame.
The VST series features customized LEDs with high contrast and brightness of up to 6000cd, creating a more immersive visual experience and a closer interaction with talents in outdoor applications.

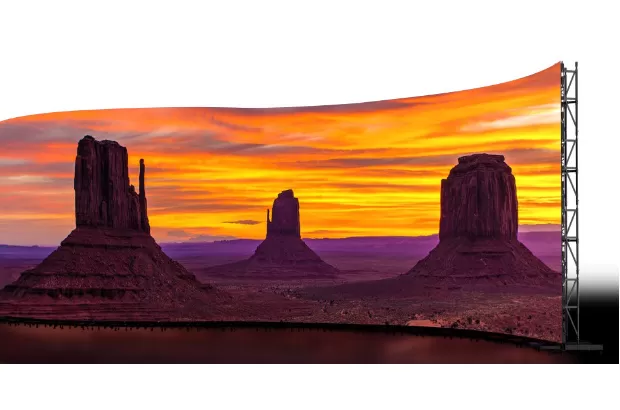

The VST panels offer effcient curving capabilities in convex as well as concave set-ups, varying from -10° to 10°degree angles. The integrated standard locks can be used to obtain these curves with perfect accuracy.
