Start from the precise design of rental application
| Parameters (Indoor) | ||||
| Item | P1.9 | P2.6 | P2.9 | P3.91 |
| Pixel Pitch | 1.953mm | 2.604mm | 2.976mm | 3.91mm |
| LED Type | SMD1415 | SMD1415 | SMD1415 | SMD2020 |
| Module Resolution | 128dots x 128dots | 96dots x 96dots | 84dots x 84dots | 64dots x 64dots |
| Driving Mode | 1/32 scan | 1/32 scan | 1/28 scan | 1/16 scan |
| Module Pixels | 16,384dots | 9,216dots | 7,056dots | 4,096dots |
| Module Size(mm) | 250 x 250 | |||
| Cabinet Size(mm) | 500 x 500/1000 | |||
| Cabinet Resolution(dots) | 258 x 258/516dots | 192 x 192/384dots | 168 x 168/336dots | 128 x 128/256dots |
| Pixel Density(dots/m²) | 282,144 | 147,456 | 112,896 | 65,536 |
| Minimum Viewing Distance | ≥1.9m | ≥2.6m | ≥2.9m | ≥3.9m |
| Brightness | 600~800nits | 600~800nits | 600~800nits | ≥800nits |
| IP Grade | IP43 | |||
| Refresh Rate | 1920Hz~7,680Hz | |||
| Gray Scale | 12~16bits | |||
| Viewing Angle | 160°/160° | |||
| Maximum Power Consumption | 520(W/m²) | |||
| Average Power Consumption | 175(W/m²) | |||
| Inout Voltage | AC110V~AC220V | |||
| 50Hz/60Hz | ||||
| Operating Temperature | -20℃~60℃ | |||
| Operating Humidity | 10%~90% | |||
| Cabinet Material | Die-casting Aluminum | |||
| Cabinet Weight | 7.5kg/panel | |||
| Operating System | Windows (Win7,Win8,etc.) | |||
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2, | |||
| SDI,HDMI2.0,etc | ||||
| Parameters (Outdoor) | ||||
| Item | P2.6 | P2.9 | P3.91 | P4.81 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| LED Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Module Resolution | 96dots x 96dots | 84dots x 84dots | 64dots x 64dots | 52dots x 52dots |
| Driving Mode | 1/16 scan | 1/14 scan | 1/16 scan | 1/13 scan |
| Module Pixels | 9,216dots | 7,056dots | 4,096dots | 2,704dots |
| Module Size(mm) | 250 x 250 | |||
| Cabinet Size(mm) | 500 x 500/1000 | |||
| Cabinet Resolution(dots) | 192 x 192/384dots | 168 x 168/336dots | 128 x 128/256dots | 104 x 104/208dots |
| Pixel Density(dots/m²) | 147,456 | 112,896 | 65,536 | 43,264 |
| Minimum Viewing Distance | ≥2.6m | ≥2.9m | ≥3.9m | ≥4.8m |
| Brightness | ≥4500nits | |||
| IP Grade | IP65 | |||
| Refresh Rate | 1920Hz~7,680Hz | |||
| Gray Scale | 12~16bits | |||
| Viewing Angle | 160°/160° | |||
| Maximum Power Consumption | 800(W/m²) | |||
| Average Power Consumption | 240(W/m²) | |||
| Inout Voltage | AC110V~AC220V | |||
| 50Hz/60Hz | ||||
| Operating Temperature | -20℃~60℃ | |||
| Operating Humidity | 10%~90% | |||
| Cabinet Material | Die-casting Aluminum | |||
| Cabinet Weight | 7.5kg/panel | |||
| Operating System | Windows (Win7,Win8,etc.) | |||
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2, | |||
| SDI,HDMI2.0,etc | ||||

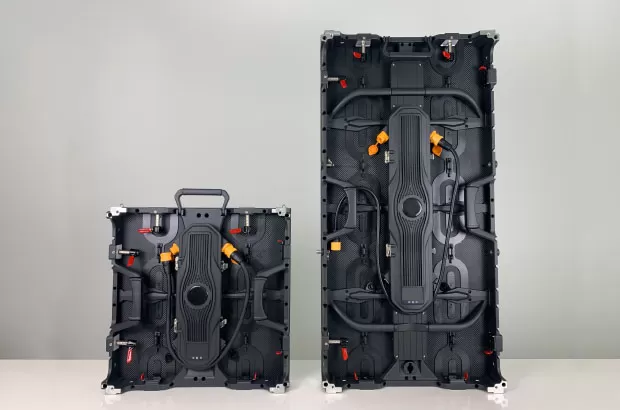

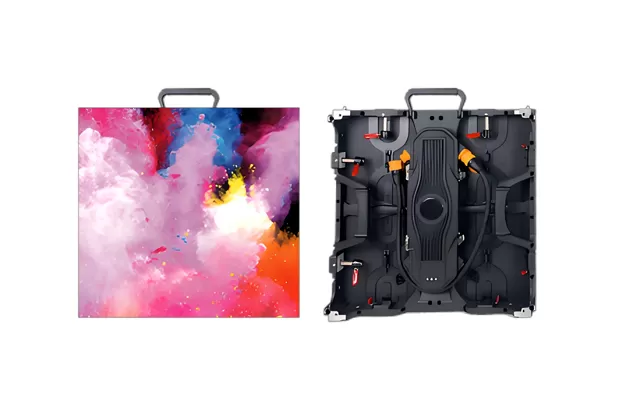

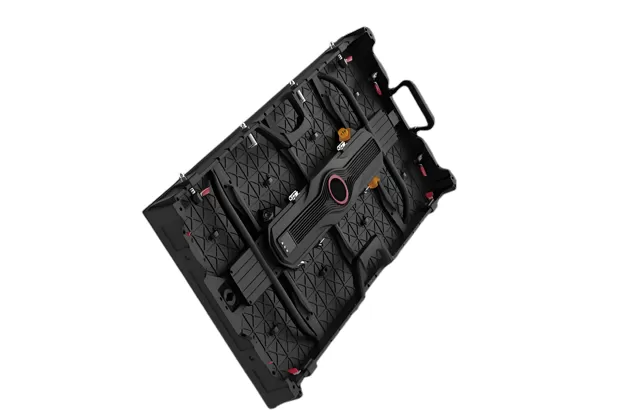

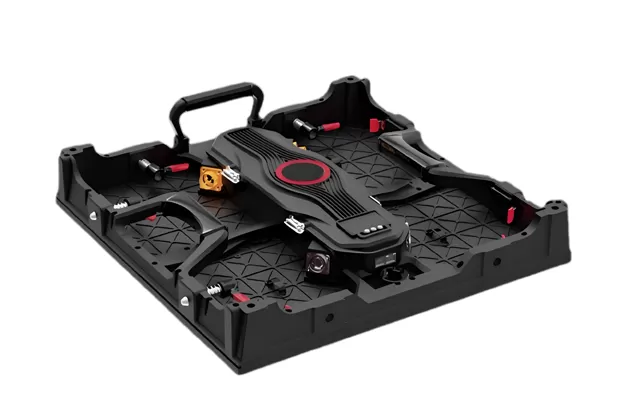

Start from the precise design of rental application. The entire G10 series are dedicated to solve the problems of instant installation, easy maintenance and anti-collision for rental applications
