(Profile cabinet) Outdoor High brightness, Full Color Aluminum Screen ( High refresh 7680Hz; brightness up to 12000cd; High contrast ratio 15000:1 )
Parameters(Common Cathode) | ||||||
| Item | FC3.33 | FC4.44 | FC5.7 | FC6.67 | FC8 | FC10 |
| Pixel Composition(SMD) | SMD1415 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Pitch(mm) | 3.33 | 4.44 | 5.7 | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 144×96 | 108×72 | 84×56 | 72×48 | 60×40 | 48×32 |
| Module Size(mm) | 480×320×16 | |||||
| Module Weight(kg) | 2 | |||||
| Module Qty/Cabinet(W×H) | 2×3 | |||||
| Cabinet Resolution(W×H) | 288×288 | 216×216 | 168×168 | 144×144 | 120×120 | 96×96 |
| Cabinet Size(mm) | 960×960×87 | |||||
| Cabinet Area(m²) | 0.92 | |||||
| Cabinet Weight(kg/cabinet) | 24.5 | |||||
| Cabinet Material | Profile cabinet | |||||
| Cabinet Density (dot/m²) | 90000 | 50625 | 30625 | 22500 | 15625 | 10000 |
| IP Rating | IP66 | |||||
| White Balance Brightness(nits) | ≥4500nits | ≥5000nits | ≥5000nits | ≥5500nits | ≥5500nits | ≥6000nits |
| Color Processor(bit) | 16bit | |||||
| Color Temperature(K) | 6500-9000 | |||||
| Visual Angle(H/V) | 140°/120° | |||||
| Luminous point centre deviation | <3% | |||||
| Luminance uniformity | ≥97% | |||||
| Chromaticity uniformity | Within ±0.003Cx,Cy | |||||
| Contrast Ratio | ≥15000:1 | |||||
| The Max Power Consumption(W/m²) | 550 | 550 | 550 | 550 | 550 | 550 |
| Average Power Consumption(W/m²) | 186 | 186 | 186 | 186 | 186 | 186 |
| Input Voltage | AC100~240V | |||||
| Frequency(Hz) | 50&60 | |||||
| IC Driving(scan) | 1/12 scan | 1/9 scan | 1/7 scan | 1/6 scan | 1/3 scan | 1/2 scan |
| Refreshing Ratio(Hz) | 3840 | |||||
| Maintenance Method | Front and Rear Maintenance | |||||
| Lifespan(hrs) | 100,000 | |||||
| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | |||||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH(Non Condensing) | |||||
| Parameters(Common Anode) | ||||||
| Item | FC3.33 | FC4.44 | FC5.7 | FC6.67 | FC8 | FC10 |
| Pixel Composition(SMD) | SMD1415 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Pitch(mm) | 3.33 | 4.44 | 5.7 | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 144×96 | 108×72 | 84×56 | 72×48 | 60×40 | 48×32 |
| Module Size(mm) | 480×320×16 | |||||
| Module Weight(kg) | 2 | |||||
| Module Qty/Cabinet(W×H) | 2×3 | |||||
| Cabinet Resolution(W×H) | 288×288 | 216×216 | 168×168 | 144×144 | 120×120 | 96×96 |
| Cabinet Size(mm) | 960×960×87 | |||||
| Cabinet Area(m²) | 0.92 | |||||
| Cabinet Weight(kg/cabinet) | 24.5 | |||||
| Cabinet Material | Profile cabinet | |||||
| Cabinet Density (dot/m²) | 90000 | 50625 | 30625 | 22500 | 15625 | 10000 |
| IP Rating | IP66 | |||||
| White Balance Brightness(nits) | ≥4500nits | ≥5000nits | ≥5000nits | ≥5500nits | ≥5500nits | ≥6000nits |
| Color Processor(bit) | 16bit | |||||
| Color Temperature(K) | 6500-9000 | |||||
| Visual Angle(H/V) | 140°/120° | |||||
| Luminous point centre deviation | <3% | |||||
| Luminance uniformity | ≥97% | |||||
| Chromaticity uniformity | Within ±0.003Cx,Cy | |||||
| Contrast Ratio | ≥15000:1 | |||||
| The Max Power Consumption(W/m²) | 700 | 700 | 700 | 700 | 700 | 800 |
| Average Power Consumption(W/m²) | 235 | 235 | 235 | 235 | 235 | 268 |
| Input Voltage | AC100~240V | |||||
| Frequency(Hz) | 50&60 | |||||
| IC Driving(scan) | 1/12 scan | 1/9 scan | 1/7 scan | 1/6 scan | 1/3 scan | 1/2 scan |
| Refreshing Ratio(Hz) | 3840 | |||||
| Maintenance Method | Front and Rear Maintenance | |||||
| Lifespan(hrs) | 100,000 | |||||
| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | |||||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH(Non Condensing) | |||||
| Parameters(Ultra-energy saving) | ||||
| Item | FC5.7 | FC6.67 | FC8 | FC10 |
| Pixel Composition(SMD) | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Pitch(mm) | 5.7 | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 84×56 | 72×48 | 60×40 | 48×32 |
| Module Size(mm) | 480×320×16 | |||
| Module Weight(kg) | 2 | |||
| Module Qty/Cabinet(W×H) | 2×3 | |||
| Cabinet Resolution(W×H) | 168×168 | 144×144 | 120×120 | 96×96 |
| Cabinet Size(mm) | 960×960×87 | |||
| Cabinet Area(m²) | 0.92 | |||
| Cabinet Weight(kg/cabinet) | 24.5 | |||
| Cabinet Material | Profile cabinet | |||
| Cabinet Density (dot/m²) | 30625 | 22500 | 15625 | 10000 |
| IP Rating | IP66 | |||
| White Balance Brightness(nits) | ≥6000nits | ≥6000nits | ≥6000nits | ≥7000nits |
| Color Processor(bit) | 16bit | |||
| Color Temperature(K) | 6500-9000 | |||
| Visual Angle(H/V) | 140°/120° | |||
| Luminous point centre deviation | <3% | |||
| Luminance uniformity | ≥97% | |||
| Chromaticity uniformity | Within ±0.003Cx,Cy | |||
| Contrast Ratio | ≥15000:1 | |||
| The Max Power Consumption(W/m²) | 280 | 280 | 280 | 280 |
| Average Power Consumption(W/m²) | 76 | 76 | 76 | 76 |
| Input Voltage | AC100~240V | |||
| Frequency(Hz) | 50&60 | |||
| IC Driving(scan) | 1/7 scan | 1/6 scan | 1/3 scan | 1/2 scan |
| Refreshing Ratio(Hz) | 3840 | |||
| Maintenance Method | Front and Rear Maintenance | |||
| Lifespan(hrs) | 100,000 | |||
| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | |||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH(Non Condensing) | |||
| Parameters(Super Brightness) | ||||
| Item | FC5.7 | FC6.67 | FC8 | FC10 |
| Pixel Composition(SMD) | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Pitch(mm) | 5.7 | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 84×56 | 72×48 | 60×40 | 48×32 |
| Module Size(mm) | 480×320×16 | |||
| Module Weight(kg) | 2 | |||
| Module Qty/Cabinet(W×H) | 2×3 | |||
| Cabinet Resolution(W×H) | 168×168 | 144×144 | 120×120 | 96×96 |
| Cabinet Size(mm) | 960×960×87 | |||
| Cabinet Area(m²) | 0.92 | |||
| Cabinet Weight(kg/cabinet) | 24.5 | |||
| Cabinet Material | Profile cabinet | |||
| Cabinet Density (dot/m²) | 30625 | 22500 | 15625 | 10000 |
| IP Rating | IP66 | |||
| White Balance Brightness(nits) | ≥12000nits | ≥12000nits | ≥12000nits | ≥12000nits |
| Color Processor(bit) | 16bit | |||
| Color Temperature(K) | 6500-9000 | |||
| Visual Angle(H/V) | 140°/120° | |||
| Luminous point centre deviation | <3% | |||
| Luminance uniformity | ≥97% | |||
| Chromaticity uniformity | Within ±0.003Cx,Cy | |||
| Contrast Ratio | ≥15000:1 | |||
| The Max Power Consumption(W/m²) | 450 | 450 | 450 | 500 |
| Average Power Consumption(W/m²) | 150 | 150 | 150 | 168 |
| Input Voltage | AC100~240V | |||
| Frequency(Hz) | 50&60 | |||
| IC Driving(scan) | 1/7 scan | 1/6 scan | 1/3 scan | 1/2 scan |
| Refreshing Ratio(Hz) | 3840 | |||
| Maintenance Method | Front and Rear Maintenance | |||
| Lifespan(hrs) | 100,000 | |||
| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | |||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH(Non Condensing) | |||

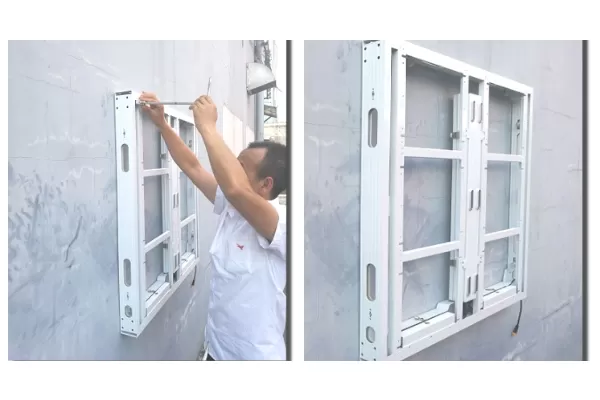

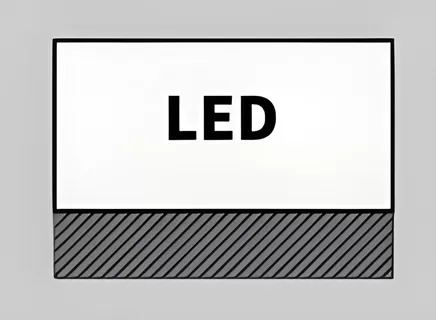

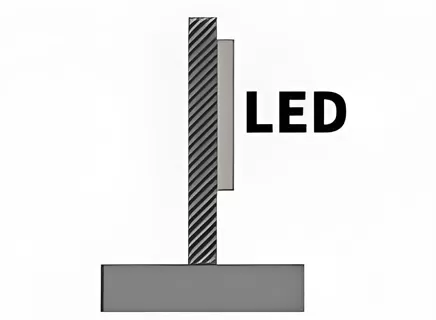

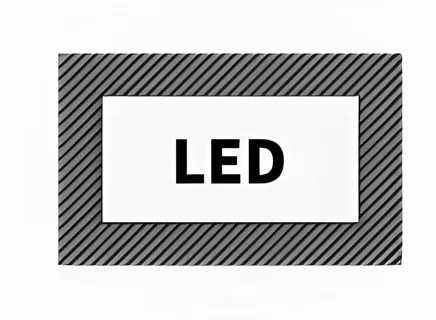

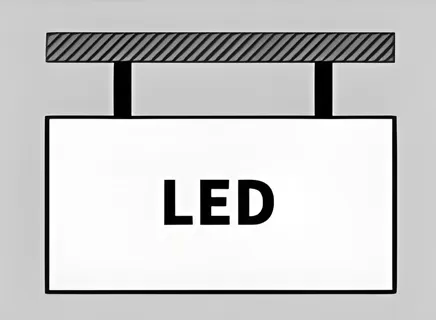

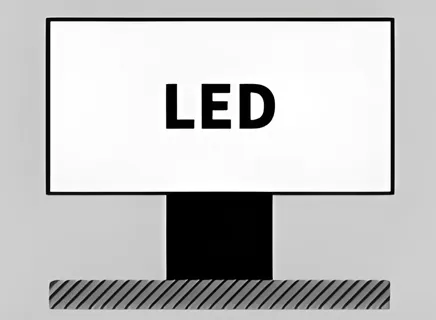

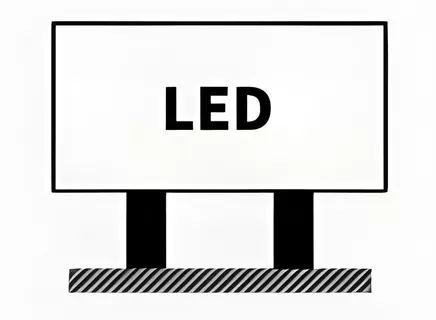

The cabinet can be mounted on the wall without structure Ultra-Lightweight and Thinness.

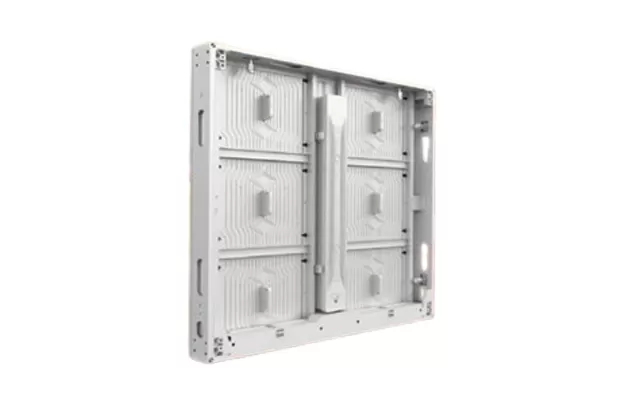

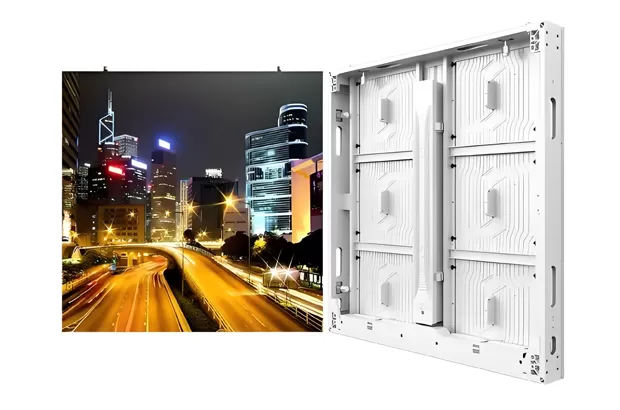

The weight of single module is just 2KG; Size of standard cabinet is 960*960mm, a standard cabinet is comprised of 6 modules, material is aluminum profile cabinet, its weight is just 24.5KG.
To compare with Iron cabinet (35KG) and die-casting aluminum cabinet (28.5KG), the FC series of LED display has superior structural design, to make the whole of display be more light and thinness.
Its structure is simple, Wireless Design
FC series of aluminum module LED display is to adopt hard link, wireless design, simple and tidy, it is beautiful appearance.

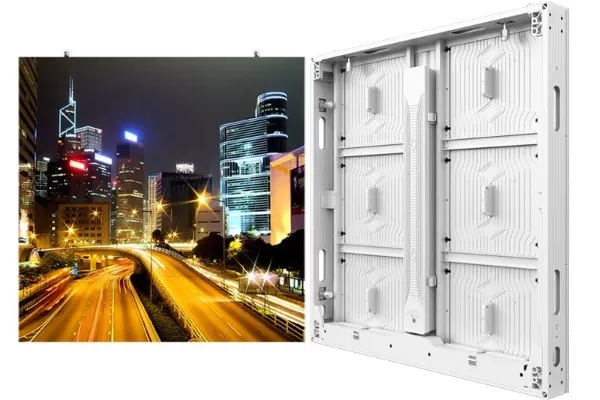

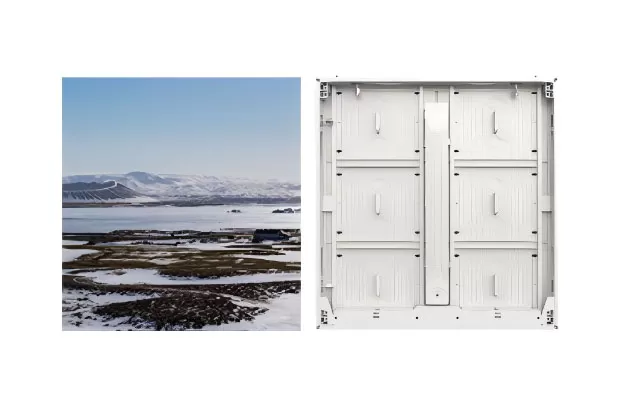

Strong Environmental Adaptability
It is ultra-low temperature rise, low decay, it can work normally under the temperature of 80 degree at most, and work normally under minus 40 degree at least, moreover, it can work on seaside normally in the long run, which has strong ability for salt spray resistance.

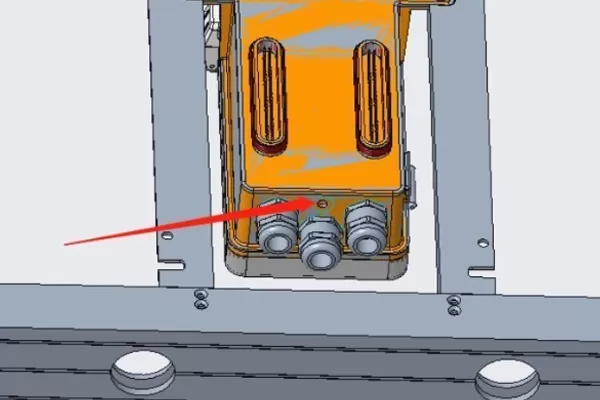

Easy to Realize front and rear maintenance
FC series of LED display is to adopt reasonable structure, easy to realize front and rear maintenance, convenience and simple, it can save clients a lot of maintenance time and cost.
High Refreshing, High Grayscale
Ultra-high grayscale 16 bit above, ultra-high refreshing 3840Hz above, its picture display is exquisite and true, brightness is stable and even, no flicker, no "Particle" sense.
IC Driving
It has the function of list up and down hidden, high refreshing ratio, dark dot amended in first line, low grayscale amended, color cast and spot amended, etc
Aluminum module is mental material, it has high melting point, even if outdoor environmental temperature is high, aluminum module LED display is not self-ignited as well, it also doesn't distort because of high temperature, also doesn't become combustion improver of other combustive substance.
Aluminum module has nice thermal conductivity, it can dissipate heat to outside from inner display fast, no need install fan, it can adapt more harsh outdoor environmental condition.
(For the FC series of LED display, a vent valve has added in the bottom of power cabinet, it can adjust inner gas pressure, recoil temperature rise and balance inner environment.)
It is to adopt 2727 LED chip, primary color is Red, Green and Blue, nice conformity, contrast ratio can be up to 5000:1, visual angle can be up to above 140°, high reliability, long lifespan.
The product structure adopts hard connection, the whole wireless, the appearance is neat and beautiful.
