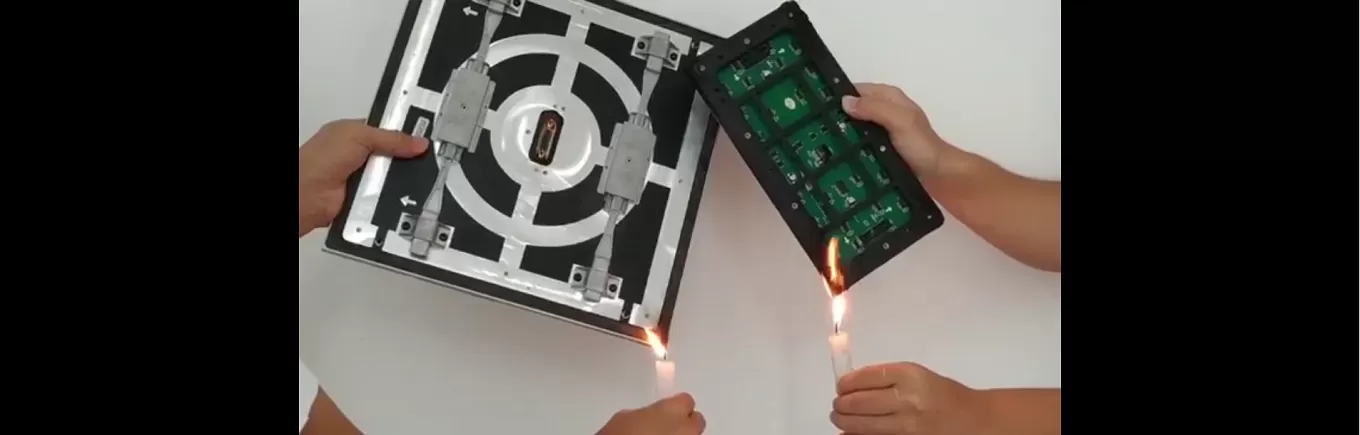

Outdoor Full Color Aluminum Module LED Display P6.67 &P8 &P10
| FA Parameters(Common Cathode) | |||
| Item | FA6.67 | FA8 | FA10 |
| Pixel Composition(SMD) | 2727 | 2727 | 2727 |
| Pixel Pitch(mm) | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 48×48 | 40×40 | 32×32 |
| Module Size(mm) | 320×320×10 | ||
| Module Weight(kg) | 1.55 | ||
| Module Qty/Cabinet(W×H) | 3×3 | ||
| Cabinet Resolution(W×H) | 144×144 | 120×120 | 96*96 |
| Cabinet Size(mm) | 960*960×100 | ||
| Cabinet Area(m²) | 0.92 | ||
| Cabinet Weight(kg/cabinet) | 35 | ||
| Cabinet Material | iron cabinet | ||
| Cabinet Density (dot/m²) | 22500 | 15625 | 10000 |
| IP Rating | IP65 | ||
| White Balance Brightness(nits) | ≥5000 | ≥5000 | ≥6000 |
| Color Processor(bit) | 16 | ||
| Color Temperature(K) | 6500-9000 | ||
| Visual Angle(H/V) | 140°/120° | ||
| Luminous point centre deviation | <3% | ||
| Luminance uniformity | ≥97% | ||
| Chromaticity uniformity | Within±0.003Cx,Cy | ||
| Contrast Ratio | 5000:01:00 | ||
| The Max Power Consumption(W/m²) | 550 | 550 | 550 |
| Average Power Consumption(W/m²) | 185 | 185 | 185 |
| Input Voltage | AC100-240V | ||
| Frequency(Hz) | 50&60 | ||
| IC Driving(scan) | 1/6 scan | 1/5 scan | 1/2 scan |
| Refreshing Ratio(Hz) | 3840 | 3840 | 3840 |
| Maintenance Method | Front and Rear | ||
| Lifespan(hrs) | 100,000 | ||
| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH(NonCondensing) | ||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH(Non Condensing) | ||
| FA Parameters(Common Anode) | |||
| Item | FA6.67 | FA8 | FA10 |
| Pixel Composition(SMD) | 2727 | 2727 | 2727 |
| Pixel Pitch(mm) | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 48×48 | 40×40 | 32×32 |
| Module Size(mm) | 320×320×10 | ||
| Module Weight(kg) | 1.55 | ||
| Module Qty/Cabinet(W×H) | 3×3 | ||
| Cabinet Resolution(W×H) | 144×144 | 120×120 | 96*96 |
| Cabinet Size(mm) | 960*960×100 | ||
| Cabinet Area(m²) | 0.92 | ||
| Cabinet Weight(kg/cabinet) | 35 | ||
| Cabinet Material | iron cabinet | ||
| Cabinet Density (dot/m²) | 22500 | 15625 | 10000 |
| IP Rating | IP65 | ||
| White Balance Brightness(nits) | ≥5000 | ≥5000 | ≥6000 |
| Color Processor(bit) | 16 | ||
| Color Temperature(K) | 6500-9000 | ||
| Visual Angle(H/V) | 140°/120° | ||
| Luminous point centre deviation | <3% | ||
| Luminance uniformity | ≥97% | ||
| Chromaticity uniformity | Within±0.003Cx,Cy | ||
| Contrast Ratio | 5000:01:00 | ||
| The Max Power Consumption(W/m²) | 830 | 738 | 918 |
| Average Power Consumption(W/m²) | 290 | 258 | 320 |
| Input Voltage | AC100-240V | ||
| Frequency(Hz) | 50&60 | ||
| IC Driving(scan) | 1/6 scan | 1/5 scan | 1/2 scan |
| Refreshing Ratio(Hz) | 1920 | 1920 | 1920 |
| Maintenance Method | Front and Rear | ||
| Lifespan(hrs) | 100,000 | ||
| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH(NonCondensing) | ||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH(Non Condensing) | ||
| FA Parameters(Ultra-energy saving) | |||
| Item | FA6.67 | FA8 | FA10 |
| Pixel Composition(SMD) | 2727 | 2727 | 2727 |
| Pixel Pitch(mm) | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 48×48 | 40×40 | 32×32 |
| Module Size(mm) | 320×320×10 | ||
| Module Weight(kg) | 1.55 | ||
| Module Qty/Cabinet(W×H) | 3×3 | ||
| Cabinet Resolution(W×H) | 144×144 | 120×120 | 96*96 |
| Cabinet Size(mm) | 960*960×100 | ||
| Cabinet Area(m²) | 0.92 | ||
| Cabinet Weight(kg/cabinet) | 35 | ||
| Cabinet Material | iron cabinet | ||
| Cabinet Density (dot/m²) | 22500 | 15625 | 10000 |
| IP Rating | IP65 | ||
| White Balance Brightness(nits) | ≥5000 | ≥5000 | ≥6000 |
| Color Processor(bit) | 16 | ||
| Color Temperature(K) | 6500-9000 | ||
| Visual Angle(H/V) | 140°/120° | ||
| Luminous point centre deviation | <3% | ||
| Luminance uniformity | ≥97% | ||
| Chromaticity uniformity | Within±0.003Cx,Cy | ||
| Contrast Ratio | 5000:01:00 | ||
| The Max Power Consumption(W/m²) | 350 | 300 | 350 |
| Average Power Consumption(W/m²) | 118 | 100 | 118 |
| Input Voltage | AC100-240V | ||
| Frequency(Hz) | 50&60 | ||
| IC Driving(scan) | 1/6 scan | 1/5 scan | 1/2 scan |
| Refreshing Ratio(Hz) | 3840 | 3840 | 3840 |
| Maintenance Method | Front and Rear | ||
| Lifespan(hrs) | 100,000 | ||
| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH(NonCondensing) | ||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH(Non Condensing) | ||
| FA Parameters(Super Brightness) | |||
| Item | FA6.67 | FA8 | FA10 |
| Pixel Composition(SMD) | 2727 | 2727 | 2727 |
| Pixel Pitch(mm) | 6.67 | 8 | 10 |
| Module Resolution(W×H) | 48×48 | 40×40 | 32×32 |
| Module Size(mm) | 320×320×10 | ||
| Module Weight(kg) | 1.55 | ||
| Module Qty/Cabinet(W×H) | 3×3 | ||
| Cabinet Resolution(W×H) | 144×144 | 120×120 | 96*96 |
| Cabinet Size(mm) | 960*960×100 | ||
| Cabinet Area(m²) | 0.92 | ||
| Cabinet Weight(kg/cabinet) | 35 | ||
| Cabinet Material | iron cabinet | ||
| Cabinet Density (dot/m²) | 22500 | 15625 | 10000 |
| IP Rating | IP65 | ||
| White Balance Brightness(nits) | 9000 | 7500 | 10000 |
| Color Processor(bit) | 16 | ||
| Color Temperature(K) | 6500-9000 | ||
| Visual Angle(H/V) | 140°/120° | ||
| Luminous point centre deviation | <3% | ||
| Luminance uniformity | ≥97% | ||
| Chromaticity uniformity | Within±0.003Cx,Cy | ||
| Contrast Ratio | 5000:01:00 | ||
| The Max Power Consumption(W/m²) | 550 | 500 | 350 |
| Average Power Consumption(W/m²) | 185 | 168 | 118 |
| Input Voltage | AC100-240V | ||
| Frequency(Hz) | 50&60 | ||
| IC Driving(scan) | 1/6 scan | 1/5 scan | 1/2 scan |
| Refreshing Ratio(Hz) | 3840 | 3840 | 3840 |
| Maintenance Method | Front and Rear | ||
| Lifespan(hrs) | 100,000 | ||
| Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH(NonCondensing) | ||
| Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH(Non Condensing) | ||
